SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Fujitsu Siemens Computers

PRIMERGY RX200 S4, Intel Xeon X5260, 3.33 GHz

SPECfp®2006 = 24.3

CPU2006 license: 22 Test date: Jul-2008
Test sponsor: Fujitsu Siemens Computers Hardware Availability: Dec-2007
Tested by: Fujitsu Siemens Computers Software Availability: Nov-2007

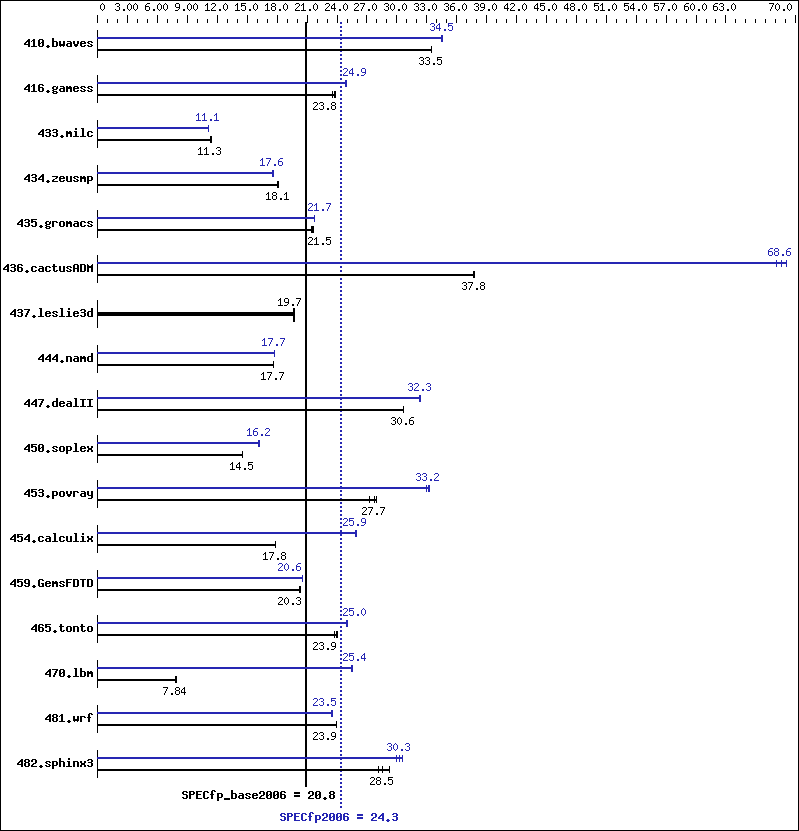

Benchmark results graph
Hardware
CPU Name: Intel Xeon X5260
CPU Characteristics: 1333 MHz system bus
CPU MHz: 3333
FPU: Integrated
CPU(s) enabled: 4 cores, 2 chips, 2 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 6 MB I+D on chip per chip
L3 Cache: None
Other Cache: None
Memory: 16 GB (8x2 GB PC2-5300F, 2 rank, CL 5-5-5, ECC)
Disk Subsystem: 1x SAS, 73 GB, 15000 rpm
Other Hardware: None
Software
Operating System: SUSE Linux Enterprise Server 10 (x86_64) SP1,
Kernel 2.6.16.46-0.12-smp
Compiler: Intel C++ and Fortran Compiler for Linux32
and Linux64, version 10.1, Build 20070913
Auto Parallel: Yes
File System: ext2
System State: Multi-User Run Level 3
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: binutils-2.17.50.0.5-0.1.x86_64

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 406 33.5  406 33.5  406 33.4  393 34.5 395 34.4 393 34.5
416.gamess 833 23.5  821 23.8  824 23.8  789 24.8 784 25.0 786 24.9
433.milc 811 11.3  810 11.3  808 11.4  829 11.1 827 11.1 828 11.1
434.zeusmp 503 18.1  503 18.1  503 18.1  519 17.5 517 17.6 518 17.6
435.gromacs 332 21.5  333 21.5  330 21.6  328 21.7 328 21.7 328 21.7
436.cactusADM 316 37.8  316 37.8  317 37.6  173 69.1 174 68.6 176 68.0
437.leslie3d 476 19.7  479 19.6  477 19.7  476 19.7 479 19.6 477 19.7
444.namd 454 17.7  454 17.6  454 17.7  452 17.7 453 17.7 453 17.7
447.dealII 373 30.7  374 30.6  373 30.6  354 32.3 354 32.3 354 32.3
450.soplex 575 14.5  576 14.5  576 14.5  515 16.2 514 16.2 517 16.1
453.povray 190 28.0  195 27.3  192 27.7  160 33.2 161 33.0 160 33.2
454.calculix 463 17.8  463 17.8  463 17.8  319 25.8 319 25.9 318 26.0
459.GemsFDTD 523 20.3  524 20.3  524 20.3  516 20.6 516 20.6 516 20.6
465.tonto 410 24.0  411 23.9  414 23.8  392 25.1 393 25.0 394 25.0
470.lbm 1747 7.87 1755 7.83 1753 7.84 540 25.4 539 25.5 540 25.4
481.wrf 467 23.9  467 23.9  467 23.9  476 23.5 475 23.5 476 23.5
482.sphinx3 683 28.5  666 29.3  692 28.2  643 30.3 638 30.6 651 29.9

Operating System Notes

 'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
 OMP_NUM_THREADS set to number of cores (default)

Platform Notes

 BIOS configuration:
 Hardware Prefetch = Enable, Adjacent Sector Prefetch = Enable

General Notes

 All binaries were built with 64-bit Intel compiler except:
 450.soplex, 470.lbm and 482.sphinx3 in peak were built with
 32-bit Intel compiler by changing the path
 for include and library files.

 For information about Fujitsu Siemens Computers please see:
 http://www.fujitsu-siemens.com

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icc   ifort

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -fast   -parallel

C++ benchmarks:

 -fast   -parallel

Fortran benchmarks:

 -fast   -parallel

Benchmarks using both Fortran and C:

 -fast   -parallel

Peak Compiler Invocation

C benchmarks (except as noted below):

 /opt/intel/cc/10.1.008/bin/icc   -L/opt/intel/cc/10.1.008/lib   -I/opt/intel/cc/10.1.008/include
433.milc:  icc

C++ benchmarks (except as noted below):

 icpc
450.soplex:  /opt/intel/cc/10.1.008/bin/icpc   -L/opt/intel/cc/10.1.008/lib   -I/opt/intel/cc/10.1.008/include

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icc   ifort

Peak Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

433.milc:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -fno-alias   -auto-ilp32
470.lbm:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll2   -scalar-rep-   -prefetch   -opt-malloc-options=3
482.sphinx3:  -fast   -unroll2

C++ benchmarks:

444.namd:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -fno-alias   -auto-ilp32
447.dealII:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll2   -ansi-alias   -scalar-rep-
450.soplex:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -opt-malloc-options=3
453.povray:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll4   -ansi-alias

Fortran benchmarks:

410.bwaves:  -fast   -prefetch   -parallel
416.gamess:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll2   -Ob0   -ansi-alias   -scalar-rep-
434.zeusmp:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast
437.leslie3d:  basepeak = yes
459.GemsFDTD:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll2   -Ob0   -prefetch   -parallel
465.tonto:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll4   -auto

Benchmarks using both Fortran and C:

435.gromacs:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -prefetch   -auto-ilp32
436.cactusADM:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll2   -prefetch   -parallel   -auto-ilp32
454.calculix:  -fast   -unroll-aggressive   -auto-ilp32
481.wrf:  -fast   -parallel   -prefetch   -auto-ilp32

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/flags-ic101-linux-intel64.20090713.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/flags-ic101-linux-intel64.20090713.xml.

SPEC and SPECfp are registered trademarks of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2006-2014 Standard Performance Evaluation Corporation
Tested with SPEC CPU2006 v1.0.
Report generated on Tue Jul 22 19:05:24 2014 by SPEC CPU2006 HTML formatter v6932.
Originally published on 2 September 2008.
