| CPU2006 license: | 22 | Test date: | Jun-2008 |
|---|---|---|---|
| Test sponsor: | Fujitsu Siemens Computers | Hardware Availability: | Dec-2007 |
| Tested by: | Fujitsu Siemens Computers | Software Availability: | Nov-2007 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5440 |
| CPU Characteristics: | 1333 MHz system bus |
| CPU MHz: | 2833 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 1 chip, 4 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 12 MB I+D on chip per chip, 6 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 16 GB (8x2 GB PC2-5300F, 2 rank, CL 5-5-5, ECC) |
| Disk Subsystem: | 1x SAS, 73 GB, 15000 rpm |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 10 (x86_64) SP1, Kernel 2.6.16.46-0.12-smp |
| Compiler: | Intel C++ Compiler for Linux32 and Linux64, Version 10.1, Build 20070913 |
| Auto Parallel: | Yes |
| File System: | ext2 |
| System State: | Multi-User Run Level 3 |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | MicroQuill SmartHeap Library, Version 8.1 binutils-2.17.50.0.5-0.1.x86_64 |

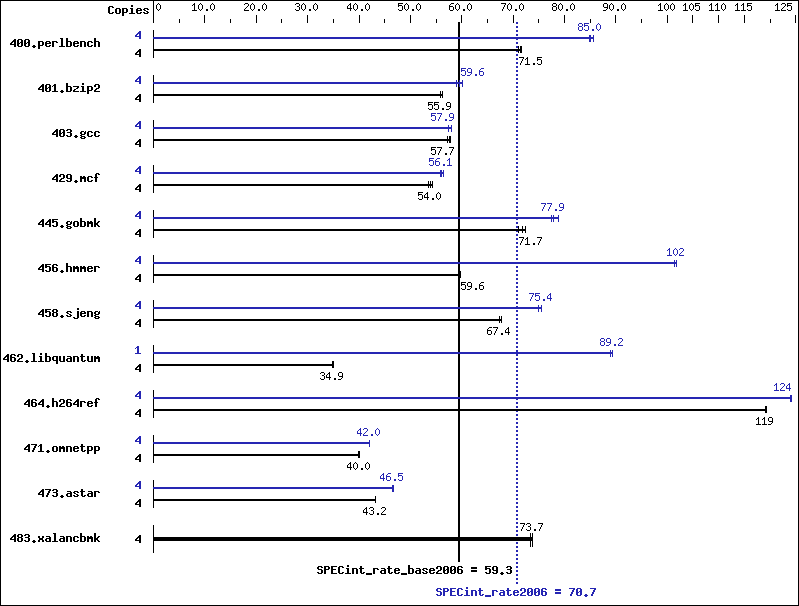

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 4 | 547 | 71.5 | 551 | 71.0 | 546 | 71.5 | 4 | 460 | 84.9 | 460 | 85.0 | 456 | 85.7 |
| 401.bzip2 | 4 | 690 | 55.9 | 690 | 55.9 | 685 | 56.3 | 4 | 655 | 59.0 | 648 | 59.6 | 641 | 60.2 |
| 403.gcc | 4 | 563 | 57.2 | 557 | 57.8 | 558 | 57.7 | 4 | 561 | 57.4 | 556 | 57.9 | 555 | 58.0 |
| 429.mcf | 4 | 681 | 53.6 | 676 | 54.0 | 673 | 54.2 | 4 | 653 | 55.8 | 651 | 56.1 | 646 | 56.4 |
| 445.gobmk | 4 | 579 | 72.5 | 585 | 71.7 | 591 | 71.0 | 4 | 541 | 77.6 | 538 | 77.9 | 533 | 78.8 |
| 456.hmmer | 4 | 626 | 59.6 | 625 | 59.7 | 626 | 59.6 | 4 | 367 | 102 | 368 | 101 | 366 | 102 |
| 458.sjeng | 4 | 716 | 67.6 | 718 | 67.4 | 718 | 67.4 | 4 | 646 | 74.9 | 642 | 75.4 | 641 | 75.5 |
| 462.libquantum | 4 | 2382 | 34.8 | 2371 | 35.0 | 2375 | 34.9 | 1 | 233 | 89.0 | 232 | 89.2 | 232 | 89.4 |
| 464.h264ref | 4 | 742 | 119 | 743 | 119 | 743 | 119 | 4 | 713 | 124 | 713 | 124 | 715 | 124 |
| 471.omnetpp | 4 | 627 | 39.9 | 624 | 40.0 | 625 | 40.0 | 4 | 596 | 41.9 | 595 | 42.0 | 595 | 42.0 |
| 473.astar | 4 | 650 | 43.2 | 651 | 43.2 | 650 | 43.2 | 4 | 603 | 46.5 | 604 | 46.5 | 602 | 46.6 |
| 483.xalancbmk | 4 | 376 | 73.4 | 374 | 73.7 | 375 | 73.7 | 4 | 376 | 73.4 | 374 | 73.7 | 375 | 73.7 |
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run OMP_NUM_THREADS set to number of cores (default)
Platform Notes
Hardware Prefetch = Enable, Adjacent Sector Prefetch = Disable
General Notes
All binaries were built with 32-bit Intel compiler except: 401.bzip2 and 456.hmmer in peak were built with 64-bit Intel compiler by changing the path for include and library files. For information about Fujitsu Siemens Computers please see: http://www.fujitsu-siemens.com
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -fast -inline-calloc -opt-malloc-options=3 |
C++ benchmarks:
| -xT -ipo -O3 -no-prec-div -Wl,-z,muldefs -L/opt/SmartHeap_8.1/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
C++ benchmarks:
| icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -prof-gen(pass 1) -prof-use(pass 2) -fast -ansi-alias -prefetch |
| 401.bzip2: | -prof-gen(pass 1) -prof-use(pass 2) -fast -prefetch |
| 403.gcc: | -fast -inline-calloc -opt-malloc-options=3 |
| 429.mcf: | -fast -prefetch |
| 445.gobmk: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O2 -ipo -no-prec-div -ansi-alias |
| 456.hmmer: | -fast -unroll2 -ansi-alias -opt-multi-version-aggressive |
| 458.sjeng: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 |
| 462.libquantum: | -fast -unroll4 -Ob0 -prefetch -opt-streaming-stores always -vec-guard-write -opt-malloc-options=3 -parallel -par-runtime-control |
| 464.h264ref: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/opt/SmartHeap_8.1/lib -lsmartheap |
| 473.astar: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/opt/SmartHeap_8.1/lib -lsmartheap |
| 483.xalancbmk: | basepeak = yes |
