| CPU2006 license: | 20 | Test date: | Jul-2008 |
|---|---|---|---|
| Test sponsor: | Bull SAS | Hardware Availability: | Jan-2008 |
| Tested by: | Bull SAS | Software Availability: | Nov-2007 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5430 |
| CPU Characteristics: | 1333 MHz system bus |
| CPU MHz: | 2666 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 12 MB I+D on chip per chip, 6 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 16 GB (8x2 GB) FB-DIMM PC2-5300F ECC CL5 |
| Disk Subsystem: | 1x73 GB SAS, 15000 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE LINUX Enterprise Server 10 SP1 Kernel 2.6.16.46-0.12-smp for x86_64 |
| Compiler: | Intel C++ Compiler 10.1 for Linux Build 20070913 Package ID: l_cc_p_10.1.008 |
| Auto Parallel: | Yes |
| File System: | ext2 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Binutils 2.17.50.0.15 SmartHeap library V8.1 |

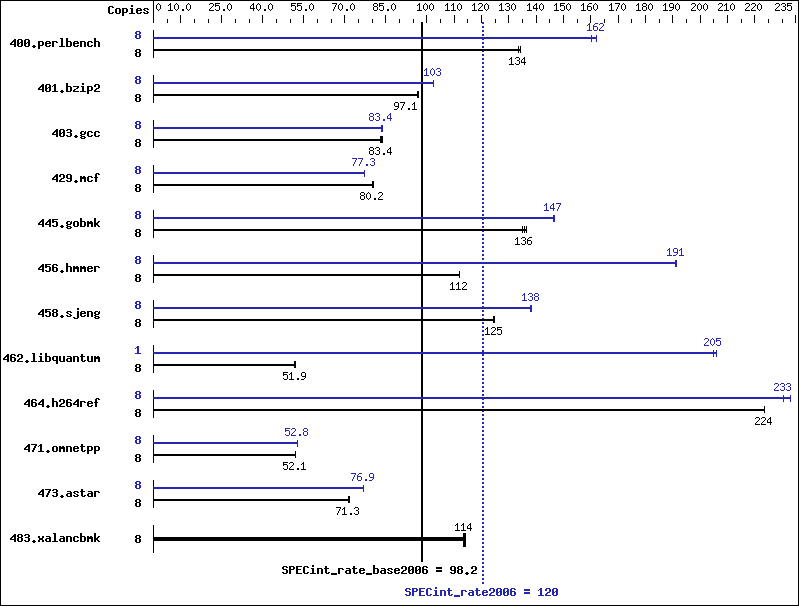

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 8 | 585 | 134 | 583 | 134 | 585 | 134 | 8 | 487 | 160 | 482 | 162 | 482 | 162 |
| 401.bzip2 | 8 | 795 | 97.1 | 798 | 96.7 | 795 | 97.1 | 8 | 753 | 103 | 753 | 103 | 752 | 103 |
| 403.gcc | 8 | 773 | 83.4 | 774 | 83.2 | 767 | 84.0 | 8 | 773 | 83.3 | 773 | 83.4 | 767 | 84.0 |
| 429.mcf | 8 | 908 | 80.4 | 909 | 80.2 | 912 | 80.0 | 8 | 943 | 77.4 | 944 | 77.3 | 945 | 77.2 |
| 445.gobmk | 8 | 615 | 136 | 619 | 136 | 621 | 135 | 8 | 573 | 147 | 573 | 147 | 573 | 146 |
| 456.hmmer | 8 | 666 | 112 | 666 | 112 | 666 | 112 | 8 | 390 | 191 | 391 | 191 | 390 | 191 |
| 458.sjeng | 8 | 777 | 125 | 776 | 125 | 779 | 124 | 8 | 700 | 138 | 701 | 138 | 700 | 138 |
| 462.libquantum | 8 | 3192 | 51.9 | 3196 | 51.9 | 3204 | 51.7 | 1 | 101 | 205 | 101 | 206 | 101 | 205 |
| 464.h264ref | 8 | 792 | 224 | 792 | 224 | 791 | 224 | 8 | 768 | 230 | 759 | 233 | 760 | 233 |
| 471.omnetpp | 8 | 959 | 52.1 | 960 | 52.1 | 963 | 51.9 | 8 | 947 | 52.8 | 947 | 52.8 | 948 | 52.8 |
| 473.astar | 8 | 784 | 71.7 | 787 | 71.3 | 789 | 71.2 | 8 | 729 | 77.0 | 732 | 76.7 | 731 | 76.9 |
| 483.xalancbmk | 8 | 484 | 114 | 486 | 114 | 484 | 114 | 8 | 484 | 114 | 486 | 114 | 484 | 114 |
Operating System Notes
OMP_NUM_THREADS set to number of cores KMP_AFFINITY set to physical,0 KMP_STACKSIZE set to 64M 'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
General Notes
All benchmarks compiled in 32-bit mode except 401.bzip2 and 456.hmmer, for peak, are compiled in 64-bit mode
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -fast -inline-calloc -opt-malloc-options=3 |
C++ benchmarks:
| -xT -ipo -O3 -no-prec-div -Wl,-z,muldefs -L/spec/cpu2006/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
C++ benchmarks:
| icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -prof-gen(pass 1) -prof-use(pass 2) -fast -ansi-alias -prefetch |
| 401.bzip2: | -prof-gen(pass 1) -prof-use(pass 2) -fast -prefetch |
| 403.gcc: | -fast -inline-calloc -opt-malloc-options=3 |
| 429.mcf: | -fast -prefetch |
| 445.gobmk: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O2 -ipo -no-prec-div -ansi-alias |
| 456.hmmer: | -fast -unroll2 -ansi-alias -opt-multi-version-aggressive |
| 458.sjeng: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 |
| 462.libquantum: | -fast -unroll4 -Ob0 -prefetch -opt-streaming-stores always -vec-guard-write -opt-malloc-options=3 -parallel -par-runtime-control |
| 464.h264ref: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/spec/cpu2006/lib -lsmartheap |
| 473.astar: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/spec/cpu2006/lib -lsmartheap |
| 483.xalancbmk: | basepeak = yes |
