SPEC® CFP2006 Result

Hewlett-Packard Company

ProLiant DL320 G5p
(3.0 GHz, Intel Xeon E3110)

SPECfp®2006 = 23.1

SPECfp_base2006 = 21.7

CPU2006 license:	3	Test date:	May-2008
Test sponsor:	Hewlett-Packard Company	Hardware Availability:	Mar-2008
Tested by:	Hewlett-Packard Company	Software Availability:	Nov-2007

Hardware
CPU Name:	Intel Xeon E3110
CPU Characteristics:	3.0 GHz, 6 MB L2 shared, 1333 MHz system bus
CPU MHz:	3000
FPU:	Integrated
CPU(s) enabled:	2 cores, 1 chip, 2 cores/chip
CPU(s) orderable:	1 chip
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	6 MB I+D on chip per chip
L3 Cache:	None
Other Cache:	None
Memory:	8 GB (4x2 GB PC2-6400E CL5)
Disk Subsystem:	1 x 80 GB 7.2 K SATA
Other Hardware:	None

Software
Operating System:	SUSE Linux Enterprise Server 10 (x86_64) SP1, Kernel 2.6.16.46-0.12-smp
Compiler:	Intel C++ Compiler 10.1 for Linux Build 20070913 Package ID: l_cc_p_10.1.008 Intel Fortran Compiler 10.1 for Linux Build 20070913 Package ID: l_cc_p_10.1.008
Auto Parallel:	Yes
File System:	ext2
System State:	Run level 3 (multi-user)
Base Pointers:	64-bit
Peak Pointers:	32/64-bit
Other Software:	binutils-2.17.50

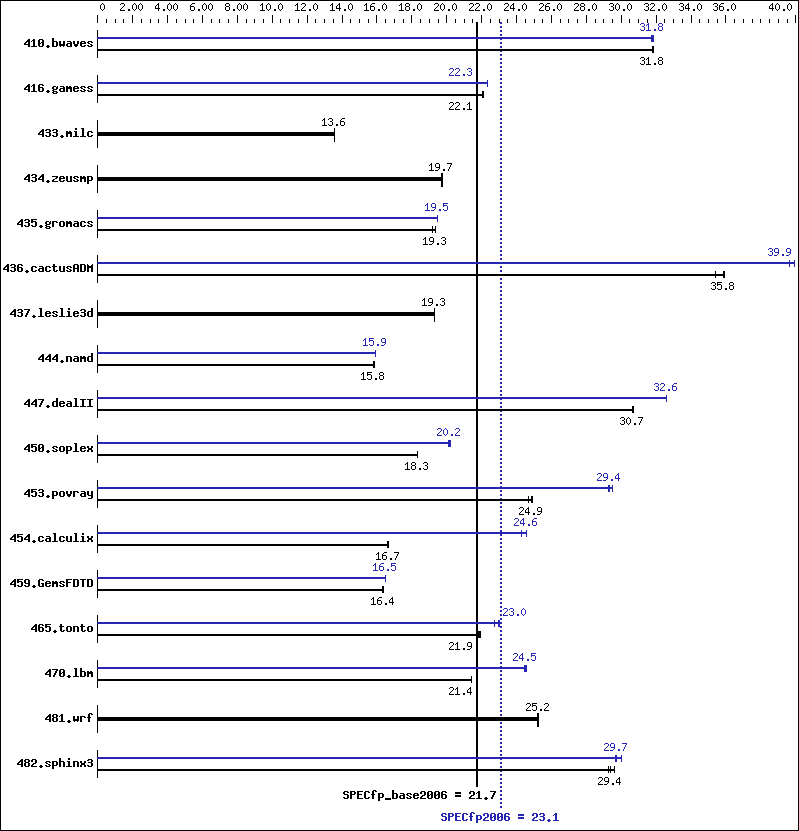

Results Table

Benchmark	Base						Peak
Benchmark	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves	427	31.8	427	31.8	427	31.8	428	31.8	427	31.8	427	31.8
416.gamess	887	22.1	887	22.1	887	22.1	876	22.4	876	22.3	877	22.3
433.milc	676	13.6	675	13.6	676	13.6	676	13.6	675	13.6	676	13.6
434.zeusmp	461	19.7	461	19.7	461	19.7	461	19.7	461	19.7	461	19.7
435.gromacs	372	19.2	369	19.3	369	19.3	367	19.5	367	19.5	366	19.5
436.cactusADM	333	35.9	333	35.8	338	35.4	299	39.9	299	39.9	301	39.7
437.leslie3d	487	19.3	487	19.3	487	19.3	487	19.3	487	19.3	487	19.3
444.namd	507	15.8	507	15.8	506	15.8	503	15.9	503	15.9	503	15.9
447.dealII	372	30.7	373	30.7	373	30.7	351	32.6	351	32.6	351	32.6
450.soplex	455	18.3	455	18.3	455	18.3	413	20.2	413	20.2	415	20.1
453.povray	214	24.9	216	24.7	213	24.9	181	29.4	180	29.5	182	29.3
454.calculix	495	16.7	495	16.7	496	16.6	340	24.3	336	24.6	336	24.6
459.GemsFDTD	649	16.4	648	16.4	649	16.3	643	16.5	643	16.5	644	16.5
465.tonto	450	21.9	449	21.9	452	21.8	428	23.0	428	23.0	433	22.7
470.lbm	641	21.4	642	21.4	642	21.4	560	24.5	562	24.5	561	24.5
481.wrf	442	25.3	443	25.2	443	25.2	442	25.3	443	25.2	443	25.2
482.sphinx3	659	29.6	663	29.4	665	29.3	649	30.0	656	29.7	657	29.7

Operating System Notes

 'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
  OMP_NUM_THREADS set to number of cores
  KMP_AFFINITY set to physical,0
  KMP_STACKSIZE set to 200M

Platform Notes

BIOS configuration:
  Power Regulator set to Dynamic Power Savings Mode

Base Compiler Invocation

C benchmarks:

icc

C++ benchmarks:

icpc

Fortran benchmarks:

ifort

Benchmarks using both Fortran and C:

icc ifort

Base Portability Flags

410.bwaves:	-DSPEC_CPU_LP64
416.gamess:	-DSPEC_CPU_LP64
433.milc:	-DSPEC_CPU_LP64
434.zeusmp:	-DSPEC_CPU_LP64
435.gromacs:	-DSPEC_CPU_LP64 -nofor_main
436.cactusADM:	-DSPEC_CPU_LP64 -nofor_main
437.leslie3d:	-DSPEC_CPU_LP64
444.namd:	-DSPEC_CPU_LP64
447.dealII:	-DSPEC_CPU_LP64
450.soplex:	-DSPEC_CPU_LP64
453.povray:	-DSPEC_CPU_LP64
454.calculix:	-DSPEC_CPU_LP64 -nofor_main
459.GemsFDTD:	-DSPEC_CPU_LP64
465.tonto:	-DSPEC_CPU_LP64
470.lbm:	-DSPEC_CPU_LP64
481.wrf:	-DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX
482.sphinx3:	-DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

-fast -parallel

C++ benchmarks:

-fast -parallel

Fortran benchmarks:

-fast -parallel

Benchmarks using both Fortran and C:

-fast -parallel

Peak Compiler Invocation

C benchmarks (except as noted below):

	/opt/intel/cc/10.1.008/bin/icc -L/opt/intel/cc/10.1.008/lib -I/opt/intel/cc/10.1.008/include
433.milc:	icc

C++ benchmarks (except as noted below):

	icpc
450.soplex:	/opt/intel/cc/10.1.008/bin/icpc -L/opt/intel/cc/10.1.008/lib -I/opt/intel/cc/10.1.008/include

Fortran benchmarks:

ifort

Benchmarks using both Fortran and C:

icc ifort

Peak Portability Flags

410.bwaves:	-DSPEC_CPU_LP64
416.gamess:	-DSPEC_CPU_LP64
433.milc:	-DSPEC_CPU_LP64
434.zeusmp:	-DSPEC_CPU_LP64
435.gromacs:	-DSPEC_CPU_LP64 -nofor_main
436.cactusADM:	-DSPEC_CPU_LP64 -nofor_main
437.leslie3d:	-DSPEC_CPU_LP64
444.namd:	-DSPEC_CPU_LP64
447.dealII:	-DSPEC_CPU_LP64
453.povray:	-DSPEC_CPU_LP64
454.calculix:	-DSPEC_CPU_LP64 -nofor_main
459.GemsFDTD:	-DSPEC_CPU_LP64
465.tonto:	-DSPEC_CPU_LP64
481.wrf:	-DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

433.milc:	basepeak = yes
470.lbm:	-prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -scalar-rep- -prefetch -opt-malloc-options=3
482.sphinx3:	-fast -unroll2

C++ benchmarks:

444.namd:	-prof-gen(pass 1) -prof-use(pass 2) -fast -fno-alias -auto-ilp32
447.dealII:	-prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -ansi-alias -scalar-rep-
450.soplex:	-prof-gen(pass 1) -prof-use(pass 2) -fast -opt-malloc-options=3
453.povray:	-prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 -ansi-alias

Fortran benchmarks:

410.bwaves:	-fast -prefetch -parallel
416.gamess:	-prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -Ob0 -ansi-alias -scalar-rep-
434.zeusmp:	basepeak = yes
437.leslie3d:	basepeak = yes
459.GemsFDTD:	-prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -Ob0 -prefetch -parallel
465.tonto:	-prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 -auto

Benchmarks using both Fortran and C:

435.gromacs:	-prof-gen(pass 1) -prof-use(pass 2) -fast -prefetch -auto-ilp32
436.cactusADM:	-prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -prefetch -parallel -auto-ilp32
454.calculix:	-fast -unroll-aggressive -auto-ilp32
481.wrf:	basepeak = yes

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/HP-Intel-ic10.1-linux-fp-flags.20090714.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/HP-Intel-ic10.1-linux-fp-flags.20090714.xml.
