SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Fujitsu Siemens Computers

ESPRIMO P5720, Intel Pentium Dual Core E2160
processor

CPU2006 license: 22 Test date: Apr-2008
Test sponsor: Fujitsu Siemens Computers Hardware Availability: Jan-2008
Tested by: Fujitsu Siemens Computers Software Availability: Nov-2007

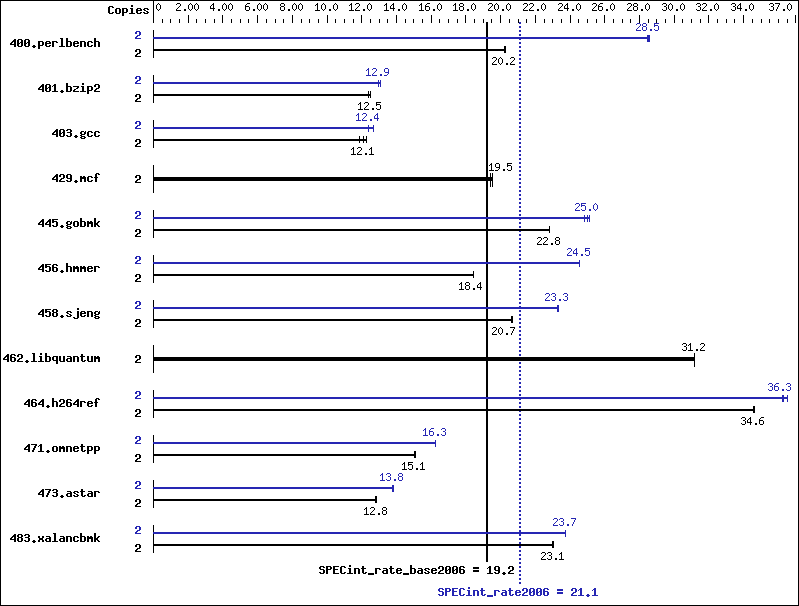

Benchmark results graph
Hardware
CPU Name: Intel Pentium Dual Core E2160
CPU Characteristics: 1.80 GHz
CPU MHz: 1800
FPU: Integrated
CPU(s) enabled: 2 cores, 1 chip, 2 cores/chip
CPU(s) orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per chip
L3 Cache: None
Other Cache: None
Memory: 2 GB (2x1 GB PC2-5300 DDR2-667 CL5)
Disk Subsystem: Seagate 250 GB SATA, 8MB Cache, 7200 RPM
Other Hardware: None
Software
Operating System: Windows XP Professional x64 Edition SP2
Compiler: Intel C++ Compiler
for applications running on IA-32,
Version 10.1, Build 20070913
Intel C++ Compiler
for applications running on Intel 64,
Version 10.1, Build 20070913
Microsoft Visual Studio 2005 with SP1
(for libraries)
Auto Parallel: No
File System: NTFS
System State: Default
Base Pointers: 32-bit
Peak Pointers: 32/64-bit
Other Software: SmartHeap Library Version 8.1 from
http://www.microquill.com/

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 2 966 20.2 964 20.3 966 20.2 2 686 28.5 684 28.6 687 28.4
401.bzip2 2 1541 12.5 1559 12.4 1547 12.5 2 1492 12.9 1492 12.9 1477 13.1
403.gcc 2 1331 12.1 1354 11.9 1315 12.2 2 1299 12.4 1302 12.4 1271 12.7
429.mcf 2 940 19.4 933 19.6 934 19.5 2 940 19.4 933 19.6 934 19.5
445.gobmk 2 921 22.8 920 22.8 920 22.8 2 835 25.1 844 24.9 839 25.0
456.hmmer 2 1012 18.4 1012 18.4 1012 18.4 2 761 24.5 761 24.5 760 24.5
458.sjeng 2 1171 20.7 1172 20.6 1170 20.7 2 1039 23.3 1039 23.3 1038 23.3
462.libquantum 2 1328 31.2 1329 31.2 1330 31.1 2 1328 31.2 1329 31.2 1330 31.1
464.h264ref 2 1280 34.6 1279 34.6 1280 34.6 2 1211 36.6 1222 36.2 1219 36.3
471.omnetpp 2 830 15.1 830 15.1 831 15.0 2 769 16.3 769 16.3 769 16.3
473.astar 2 1096 12.8 1095 12.8 1094 12.8 2 1018 13.8 1018 13.8 1020 13.8
483.xalancbmk 2 599 23.1 600 23.0 599 23.1 2 582 23.7 581 23.7 582 23.7

Platform Notes

BIOS default settings have been used.

General Notes

 All binaries were built with 32-bit Intel compiler except:
 401.bzip2 and 456.hmmer in peak were built with 64-bit Intel
 compiler by changing the path for include and library files.
 Binaries were built in Windows Vista64 Ultimate.

For information about Fujitsu Siemens Computers in your country please see:
http://www.fujitsu-siemens.com/countries

Base Compiler Invocation

C benchmarks:

 icl   -Qvc8   -Qc99

C++ benchmarks:

 icl   -Qvc8

Base Portability Flags

403.gcc:  -DSPEC_CPU_WIN32
464.h264ref:  -DSPEC_CPU_NO_INTTYPES   -DWIN32
483.xalancbmk:  -Qoption,cpp,--no_wchar_t_keyword

Base Optimization Flags

C benchmarks:

 -fast   -Qvec-guard-write   -F512000000

C++ benchmarks:

 -fast   -Qcxx_features   -F512000000   shlW32M.lib   -link -FORCE:MULTIPLE

Base Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

Peak Compiler Invocation

C benchmarks (except as noted below):

 icl   -Qvc8   -Qc99
401.bzip2:  C:\\DevelTools\\Intel\\Compiler\\C++\\10.1.011\\EM64T\\Bin\\icl.exe   -IC:\\DevelTools\\Intel\\Compiler\\C++\\10.1.011\\EM64T\\Include   -link -LIBPATH:C:\\DevelTools\\Intel\\Compiler\\C++\\10.1.011\\EM64T\\Lib   -link -LIBPATH:"C:\\Program Files\\Microsoft Visual Studio 8\\vc\\lib"   -link -LIBPATH:"C:\\Program Files\\Microsoft Visual Studio 8\\vc\\lib\\amd64"
456.hmmer:  C:\\DevelTools\\Intel\\Compiler\\C++\\10.1.011\\EM64T\\Bin\\icl.exe   -IC:\\DevelTools\\Intel\\Compiler\\C++\\10.1.011\\EM64T\\Include   -link -LIBPATH:C:\\DevelTools\\Intel\\Compiler\\C++\\10.1.011\\EM64T\\Lib   -link -LIBPATH:"C:\\Program Files\\Microsoft Visual Studio 8\\vc\\lib"   -link -LIBPATH:"C:\\Program Files\\Microsoft Visual Studio 8\\vc\\lib\\amd64"

C++ benchmarks:

 icl   -Qvc8

Peak Portability Flags

401.bzip2:  -DSPEC_CPU_P64
403.gcc:  -DSPEC_CPU_WIN32
456.hmmer:  -DSPEC_CPU_P64
464.h264ref:  -DSPEC_CPU_NO_INTTYPES   -DWIN32
483.xalancbmk:  -Qoption,cpp,--no_wchar_t_keyword

Peak Optimization Flags

C benchmarks:

400.perlbench:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qansi-alias   -Qprefetch   -F512000000   shlW32M.lib   -link -FORCE:MULTIPLE
401.bzip2:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qprefetch   -F512000000
403.gcc:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -F512000000
429.mcf:  basepeak = yes
445.gobmk:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -QxT   -O2   -Qipo   -Qprec-div-   -Qansi-alias   -F512000000
456.hmmer:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qunroll2   -Qansi-alias   -Qopt-multi-version-aggressive   -F512000000
458.sjeng:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qunroll4   -F512000000
462.libquantum:  basepeak = yes
464.h264ref:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qunroll2   -Qansi-alias   -F512000000

C++ benchmarks:

471.omnetpp:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qansi-alias   -Qopt-ra-region-strategy=block   -Qcxx_features   -F512000000   shlW32M.lib   -link -FORCE:MULTIPLE
473.astar:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qansi-alias   -Qopt-ra-region-strategy=routine   -Qcxx_features   -F512000000   shlW32M.lib   -link -FORCE:MULTIPLE
483.xalancbmk:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qansi-alias   -Qcxx_features   -F512000000   shlW32M.lib   -link -FORCE:MULTIPLE

Peak Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090713.02.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090713.02.xml.

SPEC and SPECint are registered trademarks of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2006-2014 Standard Performance Evaluation Corporation
Tested with SPEC CPU2006 v1.0.
Report generated on Tue Jul 22 16:40:20 2014 by SPEC CPU2006 HTML formatter v6932.
Originally published on 15 May 2008.
