SPEC® CINT2006 Result

NEC Corporation

Express5800/120Bb-m6
(Intel Xeon L5420)

Hardware
CPU Name:	Intel Xeon L5420
CPU Characteristics:	2.50 GHz, 2x6 MB L2 shared, 1333 MHz bus
CPU MHz:	2500
FPU:	Integrated
CPU(s) enabled:	8 cores, 2 chips, 4 cores/chip
CPU(s) orderable:	1,2 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	12 MB I+D on chip per chip, 6 MB shared / 2 cores
L3 Cache:	None
Other Cache:	None
Memory:	12 GB (12x1 GB PC2-5300F, 2 rank, CL5-5-5, ECC)
Disk Subsystem:	1x73.2 GB SAS, 10000RPM
Other Hardware:	None

Software
Operating System:	SUSE Linux Enterprise Server 10 (x86_64) SP1, Kernel 2.6.16.46-0.12-smp
Compiler:	Intel C++ Compiler for Linux32 and Linux64 version 10.1 Build 20070913 Package ID: l_cc_p_10.1.008
Auto Parallel:	Yes
File System:	ext2
System State:	Run level 3 (multi-user)
Base Pointers:	32-bit
Peak Pointers:	32/64-bit
Other Software:	MicroQuill SmartHeap library 8.1 binutils-2.17.tar.gz, Version 2.17

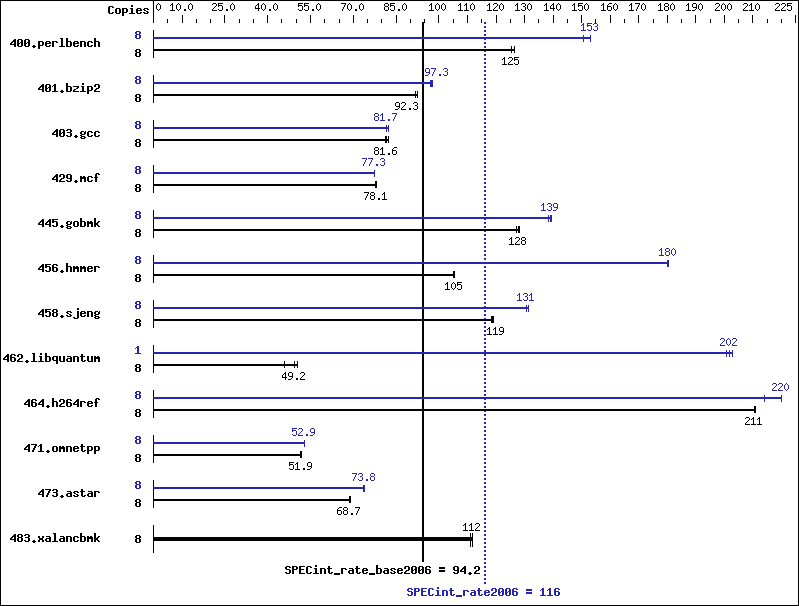

Results Table

Benchmark	Base							Peak
Benchmark	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench	8	623	125	624	125	618	126	8	518	151	511	153	510	153
401.bzip2	8	842	91.7	836	92.3	836	92.4	8	793	97.3	796	97.0	789	97.8
403.gcc	8	789	81.6	793	81.2	782	82.3	8	790	81.5	783	82.2	788	81.7
429.mcf	8	939	77.7	935	78.1	933	78.2	8	943	77.4	944	77.3	944	77.3
445.gobmk	8	657	128	655	128	659	127	8	603	139	602	139	607	138
456.hmmer	8	709	105	709	105	709	105	8	414	180	414	180	414	180
458.sjeng	8	816	119	818	118	813	119	8	741	131	740	131	737	131
462.libquantum	8	3618	45.8	3366	49.2	3294	50.3	1	102	203	103	201	103	202
464.h264ref	8	840	211	840	211	841	211	8	828	214	805	220	804	220
471.omnetpp	8	968	51.7	963	51.9	961	52.0	8	945	52.9	945	52.9	946	52.9
473.astar	8	819	68.6	814	69.0	818	68.7	8	761	73.8	762	73.7	760	73.9
483.xalancbmk	8	497	111	494	112	494	112	8	497	111	494	112	494	112

  OMP_NUM_THREADS set to number of cores

 'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run

All benchmarks compiled in 32-bit mode except 401.bzip2,
456.hmmer, for peak, are compiled in 64-bit mode

icc

icpc

403.gcc:

	icc
401.bzip2:	/opt/intel/cce/10.1.008/bin/icc -L/opt/intel/cce/10.1.008/lib -I/opt/intel/cce/10.1.008/include
456.hmmer:	/opt/intel/cce/10.1.008/bin/icc -L/opt/intel/cce/10.1.008/lib -I/opt/intel/cce/10.1.008/include

icpc

400.perlbench:	-prof-gen(pass 1) -prof-use(pass 2) -fast -ansi-alias -prefetch
401.bzip2:	-prof-gen(pass 1) -prof-use(pass 2) -fast -prefetch
403.gcc:	-fast -inline-calloc -opt-malloc-options=3
429.mcf:	-fast -prefetch
445.gobmk:	-prof-gen(pass 1) -prof-use(pass 2) -xT -O2 -ipo -no-prec-div -ansi-alias
456.hmmer:	-fast -unroll2 -ansi-alias -opt-multi-version-aggressive
458.sjeng:	-prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4
462.libquantum:	-fast -unroll4 -Ob0 -prefetch -opt-streaming-stores always -vec-guard-write -opt-malloc-options=3 -parallel -par-runtime-control
464.h264ref:	-prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -ansi-alias

471.omnetpp:	-prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/opt/SmartHeap_8.1/lib -lsmartheap
473.astar:	-prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/opt/SmartHeap_8.1/lib -lsmartheap
483.xalancbmk:	basepeak = yes

403.gcc:
