SPEC® CFP2006 Result

IBM Corporation

IBM System x3200 M2 (Intel Core 2 Duo E4600)

SPECfp®2006 = 16.5

SPECfp_base2006 = 15.6

CPU2006 license:	11	Test date:	Feb-2008
Test sponsor:	IBM Corporation	Hardware Availability:	Feb-2008
Tested by:	IBM Corporation	Software Availability:	Nov-2007

Hardware
CPU Name:	Intel Core 2 Duo E4600
CPU Characteristics:	800MHz system bus
CPU MHz:	2400
FPU:	Integrated
CPU(s) enabled:	2 cores, 1 chip, 2 cores/chip
CPU(s) orderable:	1 chip
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	2 MB I+D on chip per chip
L3 Cache:	None
Other Cache:	None
Memory:	8 GB (4 x 2 GB DDR2-5300 ECC)
Disk Subsystem:	1 x 146 GB SAS, 15000 RPM
Other Hardware:	None

Software
Operating System:	SuSE Linux Enterprise Server 10 (x86_64) SP1, Kernel 2.6.16.46-0.12-smp
Compiler:	Intel C++ and Fortran Compiler 10.1 for Linux Build 20070913 Package ID: l_cc_p_10.1.008, l_fc_p_10.1.008
Auto Parallel:	Yes
File System:	ReiserFS
System State:	Multi-user, run level 3
Base Pointers:	64-bit
Peak Pointers:	32/64-bit
Other Software:	Binutils 2.17.50.0.15

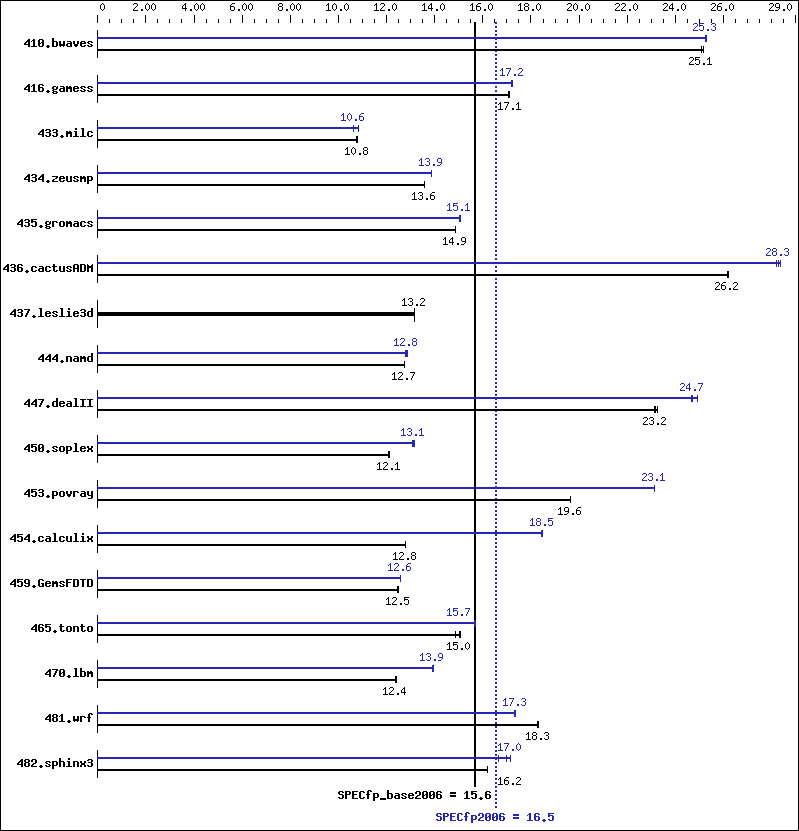

Results Table

Benchmark	Base						Peak
Benchmark	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves	542	25.1	541	25.1	540	25.2	538	25.3	537	25.3	538	25.3
416.gamess	1145	17.1	1147	17.1	1148	17.1	1137	17.2	1136	17.2	1139	17.2
433.milc	850	10.8	854	10.7	851	10.8	848	10.8	865	10.6	865	10.6
434.zeusmp	671	13.6	671	13.6	670	13.6	656	13.9	656	13.9	656	13.9
435.gromacs	481	14.9	480	14.9	480	14.9	474	15.1	474	15.1	475	15.0
436.cactusADM	456	26.2	457	26.2	457	26.2	421	28.4	424	28.2	422	28.3
437.leslie3d	714	13.2	715	13.1	714	13.2	714	13.2	715	13.1	714	13.2
444.namd	629	12.7	630	12.7	629	12.8	624	12.9	626	12.8	625	12.8
447.dealII	493	23.2	492	23.3	494	23.1	459	24.9	463	24.7	464	24.7
450.soplex	687	12.1	689	12.1	690	12.1	634	13.2	635	13.1	637	13.1
453.povray	271	19.6	271	19.6	271	19.7	230	23.1	230	23.1	230	23.1
454.calculix	645	12.8	645	12.8	645	12.8	446	18.5	447	18.5	447	18.5
459.GemsFDTD	850	12.5	850	12.5	852	12.4	843	12.6	842	12.6	845	12.6
465.tonto	654	15.1	655	15.0	663	14.8	626	15.7	627	15.7	629	15.6
470.lbm	1109	12.4	1110	12.4	1112	12.4	986	13.9	988	13.9	989	13.9
481.wrf	611	18.3	611	18.3	610	18.3	644	17.3	644	17.3	643	17.4
482.sphinx3	1205	16.2	1204	16.2	1202	16.2	1137	17.1	1171	16.6	1148	17.0

General Notes

 All benchmarks compiled in 64-bit mode except 450.soplex,
 470.lbm and 482.sphinx3, at peak, are compiled in 32-bit mode
 OMP_NUM_THREADS set to number of cores
 KMP_AFFINITY set to physical,0
 KMP_STACKSIZE set to 200M

Base Compiler Invocation

C benchmarks:

icc

C++ benchmarks:

icpc

Fortran benchmarks:

ifort

Benchmarks using both Fortran and C:

icc ifort

Base Portability Flags

410.bwaves:	-DSPEC_CPU_LP64
416.gamess:	-DSPEC_CPU_LP64
433.milc:	-DSPEC_CPU_LP64
434.zeusmp:	-DSPEC_CPU_LP64
435.gromacs:	-DSPEC_CPU_LP64 -nofor_main
436.cactusADM:	-DSPEC_CPU_LP64 -nofor_main
437.leslie3d:	-DSPEC_CPU_LP64
444.namd:	-DSPEC_CPU_LP64
447.dealII:	-DSPEC_CPU_LP64
450.soplex:	-DSPEC_CPU_LP64
453.povray:	-DSPEC_CPU_LP64
454.calculix:	-DSPEC_CPU_LP64 -nofor_main
459.GemsFDTD:	-DSPEC_CPU_LP64
465.tonto:	-DSPEC_CPU_LP64
470.lbm:	-DSPEC_CPU_LP64
481.wrf:	-DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX
482.sphinx3:	-DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

-fast -parallel

C++ benchmarks:

-fast -parallel

Fortran benchmarks:

-fast -parallel

Benchmarks using both Fortran and C:

-fast -parallel

Peak Compiler Invocation

C benchmarks (except as noted below):

	/opt/intel/cc/10.1.008/bin/icc -L/opt/intel/cc/10.1.008/lib -I/opt/intel/cc/10.1.008/include
433.milc:	icc

C++ benchmarks (except as noted below):

	icpc
450.soplex:	/opt/intel/cc/10.1.008/bin/icpc -L/opt/intel/cc/10.1.008/lib -I/opt/intel/cc/10.1.008/include

Fortran benchmarks:

ifort

Benchmarks using both Fortran and C:

icc ifort

Peak Portability Flags

410.bwaves:	-DSPEC_CPU_LP64
416.gamess:	-DSPEC_CPU_LP64
433.milc:	-DSPEC_CPU_LP64
434.zeusmp:	-DSPEC_CPU_LP64
435.gromacs:	-DSPEC_CPU_LP64 -nofor_main
436.cactusADM:	-DSPEC_CPU_LP64 -nofor_main
437.leslie3d:	-DSPEC_CPU_LP64
444.namd:	-DSPEC_CPU_LP64
447.dealII:	-DSPEC_CPU_LP64
453.povray:	-DSPEC_CPU_LP64
454.calculix:	-DSPEC_CPU_LP64 -nofor_main
459.GemsFDTD:	-DSPEC_CPU_LP64
465.tonto:	-DSPEC_CPU_LP64
481.wrf:	-DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

433.milc:	-prof-gen(pass 1) -prof-use(pass 2) -fast -fno-alias -auto-ilp32
470.lbm:	-prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -scalar-rep- -prefetch -opt-malloc-options=3
482.sphinx3:	-fast -unroll2

C++ benchmarks:

444.namd:	-prof-gen(pass 1) -prof-use(pass 2) -fast -fno-alias -auto-ilp32
447.dealII:	-prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -ansi-alias -scalar-rep-
450.soplex:	-prof-gen(pass 1) -prof-use(pass 2) -fast -opt-malloc-options=3
453.povray:	-prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 -ansi-alias

Fortran benchmarks:

410.bwaves:	-fast -prefetch -parallel
416.gamess:	-prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -Ob0 -ansi-alias -scalar-rep-
434.zeusmp:	-prof-gen(pass 1) -prof-use(pass 2) -fast
437.leslie3d:	basepeak = yes
459.GemsFDTD:	-prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -Ob0 -prefetch -parallel
465.tonto:	-prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 -auto

Benchmarks using both Fortran and C:

435.gromacs:	-prof-gen(pass 1) -prof-use(pass 2) -fast -prefetch -auto-ilp32
436.cactusADM:	-prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -prefetch -parallel -auto-ilp32
454.calculix:	-fast -unroll-aggressive -auto-ilp32
481.wrf:	-fast -parallel -prefetch -auto-ilp32

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic10.1-FP-intel64-linux-flags.20090713.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Intel-ic10.1-FP-intel64-linux-flags.20090713.xml.
