| CPU2006 license: | 22 | Test date: | Feb-2008 |
|---|---|---|---|
| Test sponsor: | Fujitsu Siemens Computers | Hardware Availability: | Mar-2008 |
| Tested by: | Fujitsu Siemens Computers | Software Availability: | Nov-2007 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon X3350 |
| CPU Characteristics: | 1333 MHz system bus |
| CPU MHz: | 2667 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 1 chip, 4 cores/chip |
| CPU(s) orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 12 MB I+D on chip per chip, 6 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 8 GB (4x2 GB PC2-6400E, 2 rank, CAS 6-6-6, with ECC) |
| Disk Subsystem: | Western Digital WD5000AAKS (SATA, 500GB, 7200rpm) |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 10 (x86_64) SP1, Kernel 2.6.16.46-0.12-smp |
| Compiler: | Intel C++ Compiler for Linux32 and Linux64 Version 10.1 - Build 20070725 |
| Auto Parallel: | Yes |
| File System: | ext2 |
| System State: | Multiuser, Runlevel 3 |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | MicroQuill SmartHeap Library, Version 8.1 binutils-2.17.tar.gz, Version 2.17 |

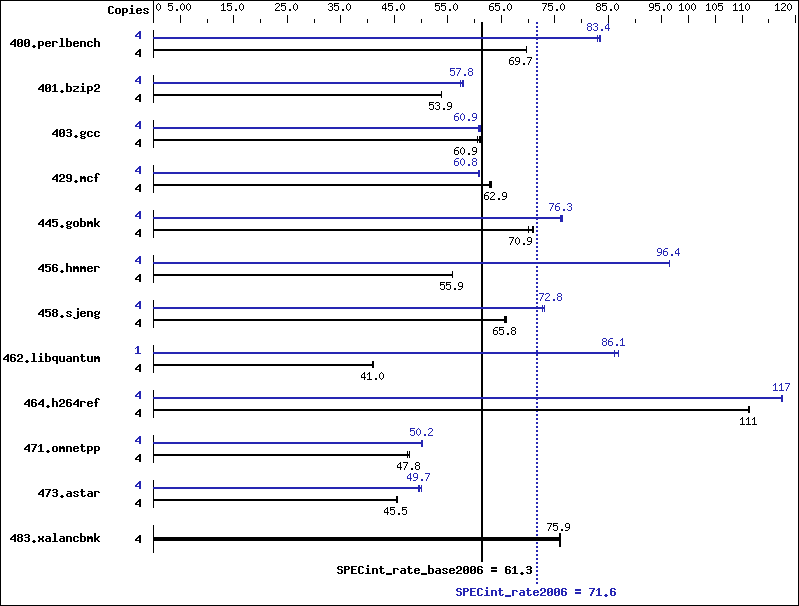

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 4 | 561 | 69.6 | 561 | 69.7 | 560 | 69.7 | 4 | 471 | 83.0 | 469 | 83.4 | 468 | 83.4 |
| 401.bzip2 | 4 | 717 | 53.9 | 716 | 53.9 | 717 | 53.8 | 4 | 672 | 57.5 | 668 | 57.8 | 667 | 57.8 |
| 403.gcc | 4 | 526 | 61.2 | 532 | 60.6 | 529 | 60.9 | 4 | 529 | 60.9 | 527 | 61.1 | 530 | 60.7 |
| 429.mcf | 4 | 580 | 62.9 | 578 | 63.1 | 581 | 62.8 | 4 | 601 | 60.7 | 600 | 60.8 | 600 | 60.8 |
| 445.gobmk | 4 | 592 | 70.9 | 591 | 71.0 | 599 | 70.0 | 4 | 550 | 76.3 | 549 | 76.4 | 552 | 76.0 |
| 456.hmmer | 4 | 668 | 55.9 | 668 | 55.9 | 668 | 55.8 | 4 | 387 | 96.4 | 387 | 96.5 | 387 | 96.4 |
| 458.sjeng | 4 | 733 | 66.0 | 737 | 65.7 | 735 | 65.8 | 4 | 665 | 72.8 | 662 | 73.1 | 666 | 72.7 |
| 462.libquantum | 4 | 2021 | 41.0 | 2022 | 41.0 | 2017 | 41.1 | 1 | 239 | 86.8 | 241 | 86.0 | 241 | 86.1 |
| 464.h264ref | 4 | 794 | 111 | 796 | 111 | 794 | 111 | 4 | 754 | 117 | 753 | 118 | 754 | 117 |
| 471.omnetpp | 4 | 523 | 47.8 | 526 | 47.5 | 523 | 47.8 | 4 | 498 | 50.2 | 500 | 50.0 | 497 | 50.3 |
| 473.astar | 4 | 617 | 45.5 | 618 | 45.5 | 618 | 45.5 | 4 | 562 | 50.0 | 565 | 49.7 | 567 | 49.6 |
| 483.xalancbmk | 4 | 363 | 76.0 | 364 | 75.8 | 364 | 75.9 | 4 | 363 | 76.0 | 364 | 75.8 | 364 | 75.9 |
Operating System Notes
'OMP_NUM_THREADS' set to number of cores (default)
General Notes
This result has been produced with binaries provided and compiled by Intel. All binaries were built with 32-bit Intel compiler except: 401.bzip2 and 456.hmmer in peak were built with 64-bit Intel compiler by changing the path for include and library files. BIOS configuration: Hardware Prefetch = Disable, Adjacent Sector Prefetch = Disable For information about Fujitsu Siemens Computers please see: http://www.fujitsu-siemens.com
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -fast -inline-calloc -opt-malloc-options=3 |
C++ benchmarks:
| -xT -ipo -O3 -no-prec-div -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.0/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
C++ benchmarks:
| icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -prof-gen(pass 1) -prof-use(pass 2) -fast -ansi-alias -prefetch |
| 401.bzip2: | -prof-gen(pass 1) -prof-use(pass 2) -fast -prefetch |
| 403.gcc: | -fast -inline-calloc -opt-malloc-options=3 |
| 429.mcf: | -fast -prefetch |
| 445.gobmk: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O2 -ipo -no-prec-div -ansi-alias |
| 456.hmmer: | -fast -unroll2 -ansi-alias -opt-multi-version-aggressive |
| 458.sjeng: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 |
| 462.libquantum: | -fast -unroll4 -Ob0 -prefetch -opt-streaming-stores always -vec-guard-write -opt-malloc-options=3 -parallel -par-runtime-control |
| 464.h264ref: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.0/lib -lsmartheap |
| 473.astar: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.0/lib -lsmartheap |
| 483.xalancbmk: | basepeak = yes |
