SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Fujitsu Siemens Computers

CELSIUS M460, Intel Core 2 Duo E8400

CPU2006 license: 22 Test date: Mar-2008
Test sponsor: Fujitsu Siemens Computers Hardware Availability: Mar-2008
Tested by: Fujitsu Siemens Computers Software Availability: Nov-2007

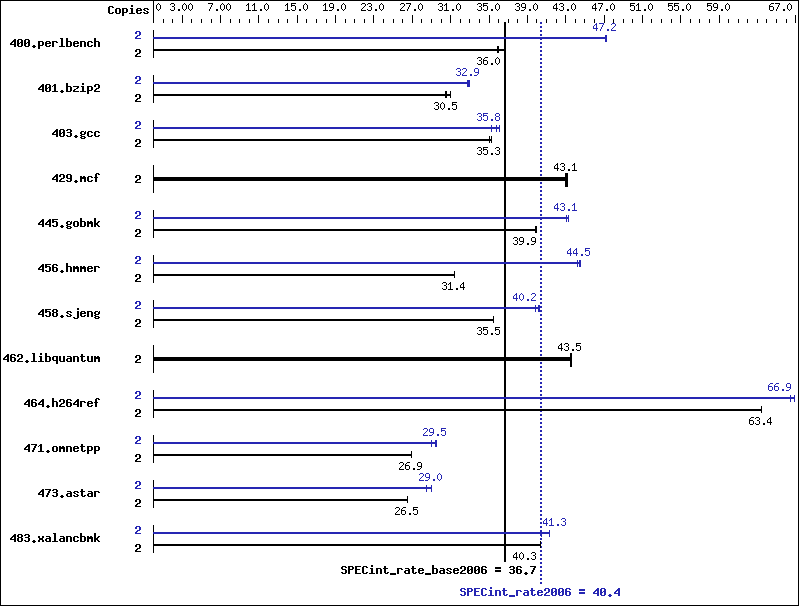

Benchmark results graph
Hardware
CPU Name: Intel Core 2 Duo E8400
CPU Characteristics:
CPU MHz: 3000
FPU: Integrated
CPU(s) enabled: 2 cores, 1 chip, 2 cores/chip
CPU(s) orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 6 MB I+D on chip per chip
L3 Cache: None
Other Cache: None
Memory: 4 GB (4x1 GB PC2-6400 CL6 SDRAM)
Disk Subsystem: 1 x 400 GB SATA 7200 RPM
Other Hardware: None
Software
Operating System: Windows Vista64 Ultimate
Compiler: Intel C++ Compiler
for applications running on IA-32,
Version 10.1, Build 20070913
Intel C++ Compiler
for applications running on Intel 64,
Version 10.1, Build 20070913
Microsoft Visual Studio 2005 with SP1
(for libraries)
Auto Parallel: No
File System: NTFS
System State: Default
Base Pointers: 32-bit
Peak Pointers: 32/64-bit
Other Software: SmartHeap Library Version 8.1 from
http://www.microquill.com/

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 2 533 36.6 544 35.9 543 36.0 2 414 47.2 415 47.1 414 47.3
401.bzip2 2 624 30.9 632 30.5 633 30.5 2 586 32.9 587 32.9 590 32.7
403.gcc 2 456 35.3 457 35.3 459 35.1 2 446 36.1 449 35.8 457 35.2
429.mcf 2 424 43.0 422 43.2 424 43.1 2 424 43.0 422 43.2 424 43.1
445.gobmk 2 526 39.9 526 39.9 526 39.9 2 487 43.1 485 43.2 487 43.1
456.hmmer 2 595 31.4 594 31.4 595 31.4 2 419 44.5 419 44.5 422 44.2
458.sjeng 2 682 35.5 682 35.5 682 35.5 2 602 40.2 602 40.2 607 39.9
462.libquantum 2 951 43.6 952 43.5 952 43.5 2 951 43.6 952 43.5 952 43.5
464.h264ref 2 698 63.5 698 63.4 698 63.4 2 662 66.9 662 66.9 667 66.4
471.omnetpp 2 465 26.9 465 26.9 465 26.9 2 424 29.5 424 29.5 431 29.0
473.astar 2 530 26.5 530 26.5 530 26.5 2 484 29.0 484 29.0 493 28.5
483.xalancbmk 2 342 40.3 342 40.4 342 40.3 2 334 41.3 334 41.3 341 40.5

Platform Notes

BIOS default settings have been used.

General Notes


 All binaries were built with 32-bit Intel compiler except:
 401.bzip2 and 456.hmmer in peak were built with 64-bit Intel
 compiler by changing the path for include and library files.

For information about Fujitsu Siemens Computers please see:
http://www.fujitsu-siemens.com/

Base Compiler Invocation

C benchmarks:

 icl   -Qvc8   -Qc99

C++ benchmarks:

 icl   -Qvc8

Base Portability Flags

403.gcc:  -DSPEC_CPU_WIN32
464.h264ref:  -DSPEC_CPU_NO_INTTYPES   -DWIN32
483.xalancbmk:  -Qoption,cpp,--no_wchar_t_keyword

Base Optimization Flags

C benchmarks:

 -fast   -Qvec-guard-write   -F512000000

C++ benchmarks:

 -fast   -Qcxx_features   -F512000000   shlW32M.lib   -link -FORCE:MULTIPLE

Base Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

Peak Compiler Invocation

C benchmarks (except as noted below):

 icl   -Qvc8   -Qc99
401.bzip2:  C:\\DevelTools\\Intel\\Compiler\\C++\\10.1.011\\EM64T\\Bin\\icl.exe   -IC:\\DevelTools\\Intel\\Compiler\\C++\\10.1.011\\EM64T\\Include   -link -LIBPATH:C:\\DevelTools\\Intel\\Compiler\\C++\\10.1.011\\EM64T\\Lib   -link -LIBPATH:"C:\\Program Files\\Microsoft Visual Studio 8\\vc\\lib"   -link -LIBPATH:"C:\\Program Files\\Microsoft Visual Studio 8\\vc\\lib\\amd64"
456.hmmer:  C:\\DevelTools\\Intel\\Compiler\\C++\\10.1.011\\EM64T\\Bin\\icl.exe   -IC:\\DevelTools\\Intel\\Compiler\\C++\\10.1.011\\EM64T\\Include   -link -LIBPATH:C:\\DevelTools\\Intel\\Compiler\\C++\\10.1.011\\EM64T\\Lib   -link -LIBPATH:"C:\\Program Files\\Microsoft Visual Studio 8\\vc\\lib"   -link -LIBPATH:"C:\\Program Files\\Microsoft Visual Studio 8\\vc\\lib\\amd64"

C++ benchmarks:

 icl   -Qvc8

Peak Portability Flags

401.bzip2:  -DSPEC_CPU_P64
403.gcc:  -DSPEC_CPU_WIN32
456.hmmer:  -DSPEC_CPU_P64
464.h264ref:  -DSPEC_CPU_NO_INTTYPES   -DWIN32
483.xalancbmk:  -Qoption,cpp,--no_wchar_t_keyword

Peak Optimization Flags

C benchmarks:

400.perlbench:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qansi-alias   -Qprefetch   -F512000000   shlW32M.lib   -link -FORCE:MULTIPLE
401.bzip2:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qprefetch   -F512000000
403.gcc:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -F512000000
429.mcf:  basepeak = yes
445.gobmk:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -QxT   -O2   -Qipo   -Qprec-div-   -Qansi-alias   -F512000000
456.hmmer:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qunroll2   -Qansi-alias   -Qopt-multi-version-aggressive   -F512000000
458.sjeng:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qunroll4   -F512000000
462.libquantum:  basepeak = yes
464.h264ref:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qunroll2   -Qansi-alias   -F512000000

C++ benchmarks:

471.omnetpp:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qansi-alias   -Qopt-ra-region-strategy=block   -Qcxx_features   -F512000000   shlW32M.lib   -link -FORCE:MULTIPLE
473.astar:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qansi-alias   -Qopt-ra-region-strategy=routine   -Qcxx_features   -F512000000   shlW32M.lib   -link -FORCE:MULTIPLE
483.xalancbmk:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qansi-alias   -Qcxx_features   -F512000000   shlW32M.lib   -link -FORCE:MULTIPLE

Peak Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090713.02.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090713.02.xml.

SPEC and SPECint are registered trademarks of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2006-2014 Standard Performance Evaluation Corporation
Tested with SPEC CPU2006 v1.0.
Report generated on Tue Jul 22 17:54:31 2014 by SPEC CPU2006 HTML formatter v6932.
Originally published on 3 April 2008.
