| CPU2006 license: | 22 | Test date: | Mar-2008 |
|---|---|---|---|
| Test sponsor: | Fujitsu Siemens Computers | Hardware Availability: | Dec-2007 |
| Tested by: | Fujitsu Siemens Computers | Software Availability: | Nov-2007 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon X7350 |
| CPU Characteristics: | 1067 MHz system bus |
| CPU MHz: | 2933 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
| CPU(s) orderable: | 1,2,4 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 8 MB I+D on chip per chip, 4 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 64 GB (16x4 GB PC2-5300F, 2 rank, CL 5-5-5, ECC) |
| Disk Subsystem: | 1x SAS, 73 GB, 15000 rpm |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 10 (x86_64) SP1, Kernel 2.6.16.46-0.12-smp |
| Compiler: | Intel C++ Compiler for Linux32 and Linux64, Version 10.1, Build 20070913 |
| Auto Parallel: | Yes |
| File System: | ext2 |
| System State: | Multi-User Run Level 3 |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | MicroQuill SmartHeap Library, Version 8.1 binutils-2.17.50.0.5-0.1.x86_64 |

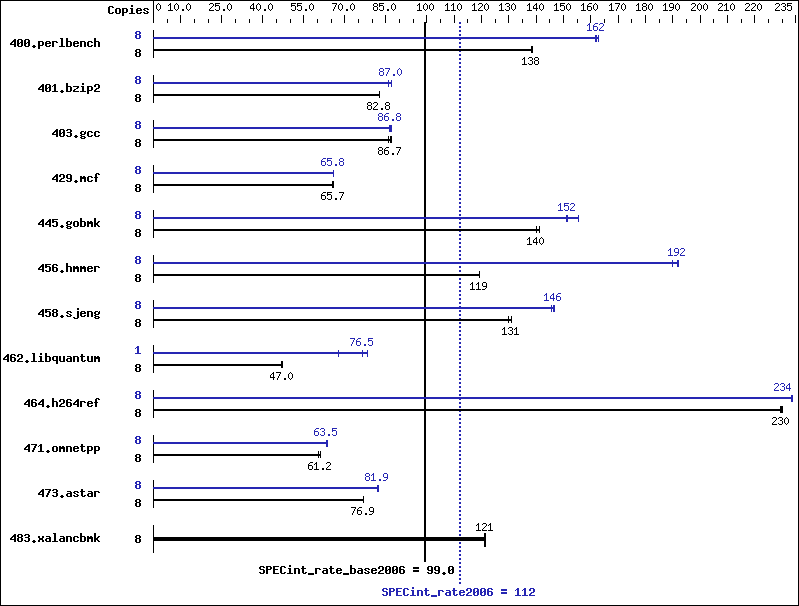

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 8 | 565 | 138 | 564 | 139 | 565 | 138 | 8 | 482 | 162 | 480 | 163 | 484 | 162 |
| 401.bzip2 | 8 | 932 | 82.8 | 933 | 82.7 | 932 | 82.8 | 8 | 887 | 87.0 | 888 | 87.0 | 896 | 86.1 |
| 403.gcc | 8 | 748 | 86.1 | 743 | 86.7 | 741 | 86.9 | 8 | 742 | 86.8 | 745 | 86.4 | 741 | 86.9 |
| 429.mcf | 8 | 1110 | 65.7 | 1111 | 65.6 | 1109 | 65.8 | 8 | 1109 | 65.8 | 1108 | 65.9 | 1108 | 65.8 |
| 445.gobmk | 8 | 594 | 141 | 599 | 140 | 598 | 140 | 8 | 554 | 152 | 539 | 156 | 556 | 151 |
| 456.hmmer | 8 | 625 | 119 | 626 | 119 | 625 | 119 | 8 | 389 | 192 | 393 | 190 | 389 | 192 |
| 458.sjeng | 8 | 739 | 131 | 745 | 130 | 739 | 131 | 8 | 665 | 146 | 660 | 147 | 662 | 146 |
| 462.libquantum | 8 | 3527 | 47.0 | 3520 | 47.1 | 3524 | 47.0 | 1 | 271 | 76.5 | 265 | 78.2 | 307 | 67.6 |
| 464.h264ref | 8 | 769 | 230 | 771 | 230 | 770 | 230 | 8 | 758 | 234 | 758 | 234 | 757 | 234 |
| 471.omnetpp | 8 | 827 | 60.5 | 816 | 61.2 | 816 | 61.3 | 8 | 788 | 63.5 | 787 | 63.5 | 788 | 63.4 |
| 473.astar | 8 | 732 | 76.7 | 731 | 76.9 | 730 | 76.9 | 8 | 683 | 82.2 | 686 | 81.9 | 686 | 81.8 |
| 483.xalancbmk | 8 | 455 | 121 | 454 | 122 | 455 | 121 | 8 | 455 | 121 | 454 | 122 | 455 | 121 |
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run OMP_NUM_THREADS set to number of cores (default)
General Notes
All binaries were built with 32-bit Intel compiler except: 401.bzip2 and 456.hmmer in peak were built with 64-bit Intel compiler by changing the path for include and library files. For information about Fujitsu Siemens Computers please see: http://www.fujitsu-siemens.com
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -fast -inline-calloc -opt-malloc-options=3 |
C++ benchmarks:
| -xT -ipo -O3 -no-prec-div -Wl,-z,muldefs -L/opt/SmartHeap_8.1/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
C++ benchmarks:
| icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -prof-gen(pass 1) -prof-use(pass 2) -fast -ansi-alias -prefetch |
| 401.bzip2: | -prof-gen(pass 1) -prof-use(pass 2) -fast -prefetch |
| 403.gcc: | -fast -inline-calloc -opt-malloc-options=3 |
| 429.mcf: | -fast -prefetch |
| 445.gobmk: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O2 -ipo -no-prec-div -ansi-alias |
| 456.hmmer: | -fast -unroll2 -ansi-alias -opt-multi-version-aggressive |
| 458.sjeng: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 |
| 462.libquantum: | -fast -unroll4 -Ob0 -prefetch -opt-streaming-stores always -vec-guard-write -opt-malloc-options=3 -parallel -par-runtime-control |
| 464.h264ref: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/opt/SmartHeap_8.1/lib -lsmartheap |
| 473.astar: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/opt/SmartHeap_8.1/lib -lsmartheap |
| 483.xalancbmk: | basepeak = yes |
