| CPU2006 license: | 3 | Test date: | Feb-2008 |
|---|---|---|---|
| Test sponsor: | Hewlett-Packard Company | Hardware Availability: | Jan-2008 |
| Tested by: | Hewlett-Packard Company | Software Availability: | Nov-2007 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon X5472 |
| CPU Characteristics: | 3.00 GHz, 2x6 MB L2 shared, 1600 MHz system bus |
| CPU MHz: | 3000 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 12 MB I+D on chip per chip, 6 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 32 GB (8x4 GB PC2-5300F CL5) |
| Disk Subsystem: | 1x160 GB 7.2 K SATA |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 10 (x86_64) SP1, Kernel 2.6.16.46-0.12-smp |
| Compiler: | Intel C++ Compiler 10.1 for Linux Build 20070913 Package ID: l_cc_p_10.1.008 |
| Auto Parallel: | Yes |
| File System: | ext2 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | MicroQuill SmartHeap Library 8.1 binutils-2.17.50 |

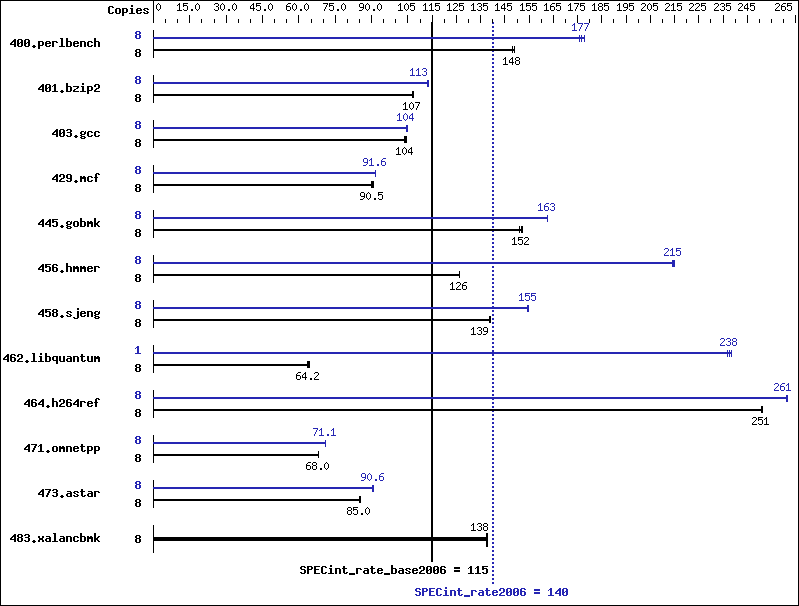

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 8 | 525 | 149 | 528 | 148 | 528 | 148 | 8 | 442 | 177 | 439 | 178 | 445 | 176 |
| 401.bzip2 | 8 | 721 | 107 | 723 | 107 | 722 | 107 | 8 | 680 | 113 | 681 | 113 | 684 | 113 |
| 403.gcc | 8 | 618 | 104 | 621 | 104 | 620 | 104 | 8 | 618 | 104 | 618 | 104 | 615 | 105 |
| 429.mcf | 8 | 812 | 89.9 | 806 | 90.5 | 804 | 90.8 | 8 | 797 | 91.6 | 797 | 91.5 | 795 | 91.7 |
| 445.gobmk | 8 | 552 | 152 | 556 | 151 | 551 | 152 | 8 | 516 | 163 | 516 | 163 | 516 | 163 |
| 456.hmmer | 8 | 592 | 126 | 592 | 126 | 591 | 126 | 8 | 348 | 215 | 347 | 215 | 348 | 214 |
| 458.sjeng | 8 | 698 | 139 | 696 | 139 | 695 | 139 | 8 | 627 | 154 | 625 | 155 | 626 | 155 |
| 462.libquantum | 8 | 2600 | 63.7 | 2584 | 64.2 | 2574 | 64.4 | 1 | 87.1 | 238 | 87.5 | 237 | 86.9 | 238 |
| 464.h264ref | 8 | 705 | 251 | 705 | 251 | 705 | 251 | 8 | 678 | 261 | 677 | 262 | 678 | 261 |
| 471.omnetpp | 8 | 735 | 68.0 | 734 | 68.1 | 735 | 68.0 | 8 | 703 | 71.1 | 703 | 71.1 | 704 | 71.1 |
| 473.astar | 8 | 661 | 85.0 | 658 | 85.4 | 660 | 85.0 | 8 | 620 | 90.6 | 620 | 90.5 | 619 | 90.8 |
| 483.xalancbmk | 8 | 400 | 138 | 401 | 137 | 401 | 138 | 8 | 400 | 138 | 401 | 137 | 401 | 138 |
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run OMP_NUM_THREADS set to number of cores KMP_AFFINITY set to physical,0 KMP_STACKSIZE set to 64M
Platform Notes
BIOS configuration: Power Regulator set to Static High Performance Mode Adjacent Sector Prefetch Disabled
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -fast -inline-calloc -opt-malloc-options=3 |
C++ benchmarks:
| -xT -ipo -O3 -no-prec-div -Wl,-z,muldefs -L/cpu2006/SmartHeap_8.1/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
C++ benchmarks:
| icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -prof-gen(pass 1) -prof-use(pass 2) -fast -ansi-alias -prefetch |
| 401.bzip2: | -prof-gen(pass 1) -prof-use(pass 2) -fast -prefetch |
| 403.gcc: | -fast -inline-calloc -opt-malloc-options=3 |
| 429.mcf: | -fast -prefetch |
| 445.gobmk: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O2 -ipo -no-prec-div -ansi-alias |
| 456.hmmer: | -fast -unroll2 -ansi-alias -opt-multi-version-aggressive |
| 458.sjeng: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 |
| 462.libquantum: | -fast -unroll4 -Ob0 -prefetch -opt-streaming-stores always -vec-guard-write -opt-malloc-options=3 -parallel -par-runtime-control |
| 464.h264ref: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/cpu2006/SmartHeap_8.1/lib -lsmartheap |
| 473.astar: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/cpu2006/SmartHeap_8.1/lib -lsmartheap |
| 483.xalancbmk: | basepeak = yes |
