| CPU2006 license: | 11 | Test date: | Dec-2007 |
|---|---|---|---|
| Test sponsor: | IBM Corporation | Hardware Availability: | Jan-2008 |
| Tested by: | IBM Corporation | Software Availability: | Nov-2007 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon X5450 |
| CPU Characteristics: | 1333MHz system bus |
| CPU MHz: | 3000 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 12 MB I+D on chip per chip, 6 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 16 GB (8 x 2 GB DDR2-5300F ECC) |
| Disk Subsystem: | 1 x 36 GB SAS, 15000 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SuSE Linux Enterprise Server 10 (x86_64), Kernel 2.6.16.21-0.8-smp |
| Compiler: | Intel C++ Compiler 10.1 for Linux Build 20070913 Package ID: l_cc_p_10.1.008 |
| Auto Parallel: | Yes |
| File System: | ReiserFS |
| System State: | Multi-user, run level 3 |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | MicroQuill SmartHeap 8.1 Binutils 2.17.50.0.15 |

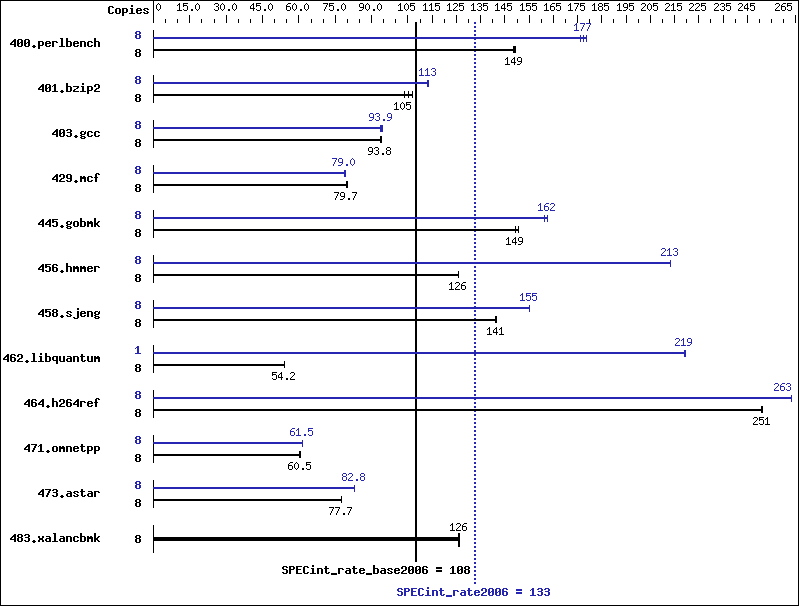

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 8 | 524 | 149 | 524 | 149 | 526 | 148 | 8 | 438 | 179 | 444 | 176 | 440 | 177 |
| 401.bzip2 | 8 | 723 | 107 | 746 | 103 | 735 | 105 | 8 | 680 | 114 | 681 | 113 | 683 | 113 |
| 403.gcc | 8 | 685 | 94.0 | 689 | 93.5 | 687 | 93.8 | 8 | 687 | 93.8 | 682 | 94.4 | 686 | 93.9 |
| 429.mcf | 8 | 915 | 79.7 | 917 | 79.6 | 912 | 80.0 | 8 | 922 | 79.2 | 924 | 79.0 | 924 | 79.0 |
| 445.gobmk | 8 | 562 | 149 | 557 | 151 | 563 | 149 | 8 | 517 | 162 | 520 | 161 | 516 | 163 |
| 456.hmmer | 8 | 593 | 126 | 593 | 126 | 593 | 126 | 8 | 350 | 213 | 350 | 213 | 350 | 214 |
| 458.sjeng | 8 | 684 | 142 | 685 | 141 | 685 | 141 | 8 | 624 | 155 | 624 | 155 | 625 | 155 |
| 462.libquantum | 8 | 3060 | 54.2 | 3060 | 54.2 | 3060 | 54.2 | 1 | 94.4 | 219 | 94.6 | 219 | 94.6 | 219 |
| 464.h264ref | 8 | 704 | 251 | 706 | 251 | 704 | 251 | 8 | 672 | 263 | 673 | 263 | 672 | 263 |
| 471.omnetpp | 8 | 826 | 60.5 | 831 | 60.1 | 826 | 60.5 | 8 | 814 | 61.5 | 814 | 61.5 | 814 | 61.4 |
| 473.astar | 8 | 722 | 77.8 | 723 | 77.6 | 723 | 77.7 | 8 | 678 | 82.8 | 679 | 82.8 | 677 | 83.0 |
| 483.xalancbmk | 8 | 438 | 126 | 438 | 126 | 437 | 126 | 8 | 438 | 126 | 438 | 126 | 437 | 126 |
General Notes
All benchmarks compiled in 32-bit mode except 401.bzip2 and 456.hmmer, for peak, are compiled in 64-bit mode Hardware Sector Prefetch Enabled and Adjacent Sector Prefetch Disabled OMP_NUM_THREADS set to number of cores KMP_AFFINITY set to physical,0 KMP_STACKSIZE set to 64M Powersaved dameon was disabled in OS taskset utility used to bind CPU(s) to processes
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -fast -inline-calloc -opt-malloc-options=3 |
C++ benchmarks:
| -xT -ipo -O3 -no-prec-div -Wl,-z,muldefs -L/spec/users/rahul/cpu2006.1.0/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
C++ benchmarks:
| icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -prof-gen(pass 1) -prof-use(pass 2) -fast -ansi-alias -prefetch |
| 401.bzip2: | -prof-gen(pass 1) -prof-use(pass 2) -fast -prefetch |
| 403.gcc: | -fast -inline-calloc -opt-malloc-options=3 |
| 429.mcf: | -fast -prefetch |
| 445.gobmk: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O2 -ipo -no-prec-div -ansi-alias |
| 456.hmmer: | -fast -unroll2 -ansi-alias -opt-multi-version-aggressive |
| 458.sjeng: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 |
| 462.libquantum: | -fast -unroll4 -Ob0 -prefetch -opt-streaming-stores always -vec-guard-write -opt-malloc-options=3 -parallel -par-runtime-control |
| 464.h264ref: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/spec/users/rahul/cpu2006.1.0/lib -lsmartheap |
| 473.astar: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/spec/users/rahul/cpu2006.1.0/lib -lsmartheap |
| 483.xalancbmk: | basepeak = yes |
