SPEC® CFP2006 Result

Intel Corporation

Lenovo ThinkPad T60 (Intel Core Duo T2700)

SPECfp®2006 = 10.9

SPECfp_base2006 = 10.5

CPU2006 license:	13	Test date:	Dec-2007
Test sponsor:	Intel Corporation	Hardware Availability:	Jan-2008
Tested by:	Intel Corporation	Software Availability:	Nov-2007

Hardware
CPU Name:	Intel Core Duo T2700
CPU Characteristics:
CPU MHz:	2333
FPU:	Integrated
CPU(s) enabled:	2 cores, 1 chip, 2 cores/chip
CPU(s) orderable:	1 chip
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	2 MB I+D on chip per chip
L3 Cache:	None
Other Cache:	None
Memory:	2 GB (2x1GB Hynix DDR2-667 CL5)
Disk Subsystem:	Hitachi 100 GB SATA, 7200 RPM
Other Hardware:	None

Software
Operating System:	Windows Vista Ultimate (32-bit)
Compiler:	Intel C++ Compiler for IA32 version 10.1 Build 20070913 Package ID: w_cc_p_10.1.011 Intel Fortran Compiler for IA32 version 10.1 Build 20070913 Package ID: w_fc_p_10.1.011 Microsoft Visual Studio 2005 SP1 (for libraries)
Auto Parallel:	Yes
File System:	NTFS
System State:	Default
Base Pointers:	32-bit
Peak Pointers:	32-bit
Other Software:	None SmartHeap Library Version 8.1 from http://www.microquill.com/

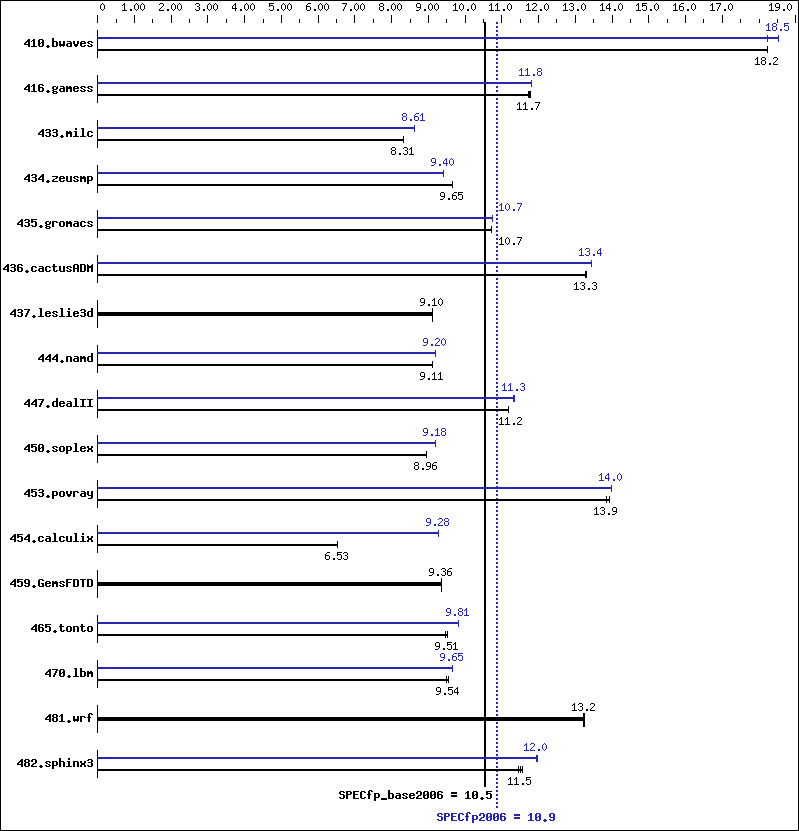

Results Table

Benchmark	Base						Peak
Benchmark	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves	746	18.2	746	18.2	746	18.2	746	18.2	734	18.5	733	18.5
416.gamess	1667	11.7	1664	11.8	1671	11.7	1660	11.8	1659	11.8	1659	11.8
433.milc	1105	8.31	1104	8.31	1104	8.32	1066	8.61	1066	8.61	1066	8.61
434.zeusmp	943	9.65	943	9.65	944	9.64	968	9.40	968	9.40	968	9.40
435.gromacs	667	10.7	667	10.7	667	10.7	665	10.7	665	10.7	665	10.7
436.cactusADM	899	13.3	899	13.3	899	13.3	890	13.4	890	13.4	890	13.4
437.leslie3d	1032	9.11	1033	9.10	1033	9.10	1032	9.11	1033	9.10	1033	9.10
444.namd	880	9.11	880	9.11	880	9.11	872	9.20	872	9.20	872	9.20
447.dealII	1024	11.2	1023	11.2	1023	11.2	1010	11.3	1009	11.3	1009	11.3
450.soplex	931	8.96	931	8.96	931	8.96	908	9.18	908	9.18	908	9.18
453.povray	384	13.9	382	13.9	384	13.9	381	14.0	380	14.0	380	14.0
454.calculix	1264	6.53	1264	6.53	1264	6.53	889	9.28	889	9.28	889	9.28
459.GemsFDTD	1134	9.36	1134	9.35	1134	9.36	1134	9.36	1134	9.35	1134	9.36
465.tonto	1039	9.47	1035	9.51	1035	9.51	1002	9.82	1003	9.81	1003	9.81
470.lbm	1447	9.49	1440	9.54	1441	9.54	1423	9.66	1424	9.65	1424	9.65
481.wrf	844	13.2	844	13.2	844	13.2	844	13.2	844	13.2	844	13.2
482.sphinx3	1693	11.5	1684	11.6	1701	11.5	1630	12.0	1630	12.0	1629	12.0

General Notes

 The system bus runs at 667 MHz
 Binaries were built on Windows Vista (32-bit)
 The following VS 2005 SP1 updates were applied: KB926601 and KB932232
 OMP_NUM_THREADS set to number of cores
 KMP_AFFINITY set to physical,0

Base Compiler Invocation

C benchmarks:

icl -Qvc8 -Qc99

C++ benchmarks:

icl -Qvc8

Fortran benchmarks:

ifort

Benchmarks using both Fortran and C:

icl -Qvc8 -Qc99 ifort

Base Portability Flags

436.cactusADM:	-Qlowercase /assume:underscore
444.namd:	-TP
447.dealII:	-DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG
453.povray:	-DSPEC_CPU_WINDOWS_ICL
454.calculix:	-DSPEC_CPU_NOZMODIFIER -Qlowercase
481.wrf:	-DSPEC_CPU_WINDOWS_ICL

Peak Compiler Invocation

C benchmarks:

icl -Qvc8 -Qc99

C++ benchmarks:

icl -Qvc8

Fortran benchmarks:

ifort

Benchmarks using both Fortran and C:

icl -Qvc8 -Qc99 ifort

Peak Portability Flags

436.cactusADM:	-Qlowercase /assume:underscore
444.namd:	-TP
447.dealII:	-DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG
453.povray:	-DSPEC_CPU_WINDOWS_ICL
454.calculix:	-DSPEC_CPU_NOZMODIFIER -Qlowercase
481.wrf:	-DSPEC_CPU_WINDOWS_ICL

Peak Optimization Flags

C benchmarks:

433.milc:	-QxP -Qipo -O3 -Qprec-div- -Qunroll2 -Oa /F1000000000 libguide40.lib
470.lbm:	-QxP -Qipo -O3 -Qprec-div- -Qunroll2 -Qscalar-rep- -Qprefetch /F1000000000 libguide40.lib
482.sphinx3:	-QxP -Qipo -O3 -Qprec-div- -Qunroll2 /F1000000000 libguide40.lib

C++ benchmarks:

444.namd:	-QxP -Qipo -O3 -Qprec-div- -Oa -Qcxx_features /F1000000000 shlw32m.lib libguide40.lib -link /FORCE:MULTIPLE
447.dealII:	-QxP -Qipo -O3 -Qprec-div- -Qunroll2 -Qprefetch -Qcxx_features /F1000000000 shlw32m.lib libguide40.lib -link /FORCE:MULTIPLE
450.soplex:	-QxP -Qipo -O3 -Qprec-div- -Qparallel -Qcxx_features /F1000000000 shlw32m.lib libguide40.lib -link /FORCE:MULTIPLE
453.povray:	-QxP -Qipo -O3 -Qprec-div- -Qunroll4 -Qcxx_features /F1000000000 shlw32m.lib libguide40.lib -link /FORCE:MULTIPLE

Fortran benchmarks:

410.bwaves:	-QxP -Qipo -O3 -Qprec-div- -Qparallel -Qprefetch /F1000000000 libguide40.lib
416.gamess:	-QxP -Qipo -O3 -Qprec-div- -Qunroll2 -Ob0 -Qansi-alias -Qscalar-rep- /F1000000000 libguide40.lib
434.zeusmp:	-QxP -O2 -Qprec-div- -Qunroll0 -Qscalar-rep- /F1000000000 libguide40.lib
437.leslie3d:	basepeak = yes
459.GemsFDTD:	basepeak = yes
465.tonto:	-QxP -Qipo -O3 -Qprec-div- -Qunroll4 -Qauto /F1000000000 libguide40.lib

Benchmarks using both Fortran and C:

435.gromacs:	-QxP -Qipo -O3 -Qprec-div- -Oa -Qprefetch /F1000000000 libguide40.lib
436.cactusADM:	-QxP -Qipo -O3 -Qprec-div- -Qunroll2 -Qparallel -Qprefetch /F1000000000 libguide40.lib
454.calculix:	-QxP -Qipo -O3 -Qprec-div- -Qunroll-aggressive /F1000000000 libguide40.lib
481.wrf:	basepeak = yes

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic10-ia32-intel64-linux-flags.20090714.09.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Intel-ic10-ia32-intel64-linux-flags.20090714.09.xml.
