| CPU2006 license: | 22 | Test date: | Nov-2007 |
|---|---|---|---|
| Test sponsor: | Fujitsu Siemens Computers | Hardware Availability: | Dec-2007 |
| Tested by: | Fujitsu Siemens Computers | Software Availability: | Nov-2007 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon 5148 |
| CPU Characteristics: | 1333 MHz system bus |
| CPU MHz: | 2333 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 2 chips, 2 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 4 MB I+D on chip per chip |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 16 GB (8x2 GB PC2-5300F, 2 rank, CAS 5-5-5, with ECC) |
| Disk Subsystem: | Seagate ST973451SS (SAS, 73GB, 15000rpm) |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 10 (x86_64) SP1, Kernel 2.6.16.46-0.12-smp |
| Compiler: | Intel C++ Compiler for Linux32 and Linux64 Version 10.1 - Build 20070725 |
| Auto Parallel: | Yes |
| File System: | ext2 |
| System State: | Multiuser, Runlevel 3 |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Smart Heap Library, Version 8.1 binutils-2.17.tar.gz, Version 2.17 |

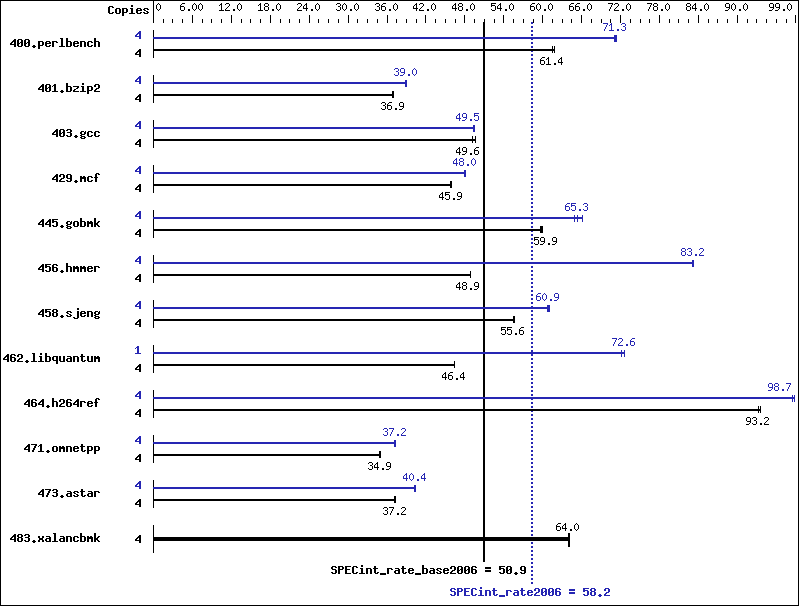

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 4 | 636 | 61.4 | 633 | 61.7 | 636 | 61.4 | 4 | 547 | 71.4 | 550 | 71.1 | 548 | 71.3 |
| 401.bzip2 | 4 | 1049 | 36.8 | 1045 | 37.0 | 1045 | 36.9 | 4 | 989 | 39.0 | 992 | 38.9 | 989 | 39.0 |
| 403.gcc | 4 | 650 | 49.6 | 655 | 49.2 | 649 | 49.6 | 4 | 650 | 49.5 | 650 | 49.6 | 652 | 49.4 |
| 429.mcf | 4 | 798 | 45.7 | 795 | 45.9 | 795 | 45.9 | 4 | 761 | 47.9 | 759 | 48.1 | 759 | 48.0 |
| 445.gobmk | 4 | 703 | 59.7 | 699 | 60.0 | 701 | 59.9 | 4 | 643 | 65.3 | 646 | 64.9 | 635 | 66.1 |
| 456.hmmer | 4 | 763 | 48.9 | 763 | 48.9 | 763 | 48.9 | 4 | 448 | 83.3 | 449 | 83.2 | 449 | 83.1 |
| 458.sjeng | 4 | 871 | 55.6 | 872 | 55.5 | 869 | 55.7 | 4 | 793 | 61.0 | 795 | 60.9 | 797 | 60.7 |
| 462.libquantum | 4 | 1784 | 46.4 | 1785 | 46.4 | 1785 | 46.4 | 1 | 287 | 72.2 | 285 | 72.6 | 285 | 72.6 |
| 464.h264ref | 4 | 946 | 93.5 | 949 | 93.2 | 949 | 93.2 | 4 | 896 | 98.8 | 896 | 98.7 | 898 | 98.5 |
| 471.omnetpp | 4 | 716 | 34.9 | 719 | 34.8 | 716 | 34.9 | 4 | 672 | 37.2 | 671 | 37.2 | 671 | 37.3 |
| 473.astar | 4 | 754 | 37.2 | 754 | 37.2 | 752 | 37.3 | 4 | 695 | 40.4 | 695 | 40.4 | 697 | 40.3 |
| 483.xalancbmk | 4 | 431 | 64.0 | 431 | 64.0 | 431 | 64.1 | 4 | 431 | 64.0 | 431 | 64.0 | 431 | 64.1 |
General Notes
This result has been produced with binaries provided and compiled by Intel. All binaries were built with 32-bit Intel compiler except: 401.bzip2 and 456.hmmer in peak were built with 64-bit Intel compiler by changing the path for include and library files. BIOS configuration: Adjacent Sector Prefetch = Disable For information about Fujitsu Siemens Computers please see: http://www.fujitsu-siemens.com
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -fast -inline-calloc -opt-malloc-options=3 |
C++ benchmarks:
| -xT -ipo -O3 -no-prec-div -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.0/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
C++ benchmarks:
| icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -prof-gen(pass 1) -prof-use(pass 2) -fast -ansi-alias -prefetch |
| 401.bzip2: | -prof-gen(pass 1) -prof-use(pass 2) -fast -prefetch |
| 403.gcc: | -fast -inline-calloc -opt-malloc-options=3 |
| 429.mcf: | -fast -prefetch |
| 445.gobmk: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O2 -ipo -no-prec-div -ansi-alias |
| 456.hmmer: | -fast -unroll2 -ansi-alias -opt-multi-version-aggressive |
| 458.sjeng: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 |
| 462.libquantum: | -fast -unroll4 -Ob0 -prefetch -opt-streaming-stores always -vec-guard-write -opt-malloc-options=3 -parallel -par-runtime-control |
| 464.h264ref: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.0/lib -lsmartheap |
| 473.astar: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.0/lib -lsmartheap |
| 483.xalancbmk: | basepeak = yes |
