| CPU2006 license: | 9006 | Test date: | Nov-2007 |
|---|---|---|---|
| Test sponsor: | NEC Corporation | Hardware Availability: | Jan-2007 |
| Tested by: | NEC Corporation | Software Availability: | Apr-2007 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon X5355 |
| CPU Characteristics: | 2.66 GHz, 2x4 MB L2 shared, 1333 MHz bus |
| CPU MHz: | 2666 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 8 MB I+D on chip per chip, 4 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 8 GB (8x1 GB PC2-5300F, 2 rank, CL5-5-5, ECC) |
| Disk Subsystem: | 1x73.2 GB SAS, 10000RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Windows Server 2003 Standard x64 Edition Service Pack1 |
| Compiler: | Intel C++ Compiler for EM64T version 9.1 Build 20070322, Package-ID W_CC_C_9.1.037 Intel Fortran Compiler for EM64T version 9.1 Build 20070322, Package-ID W_FC_C_9.1.037 Microsoft Visual Studio 2005 (libr. & linker) |
| Auto Parallel: | Yes |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 64-bit |
| Peak Pointers: | 64-bit |
| Other Software: | None |

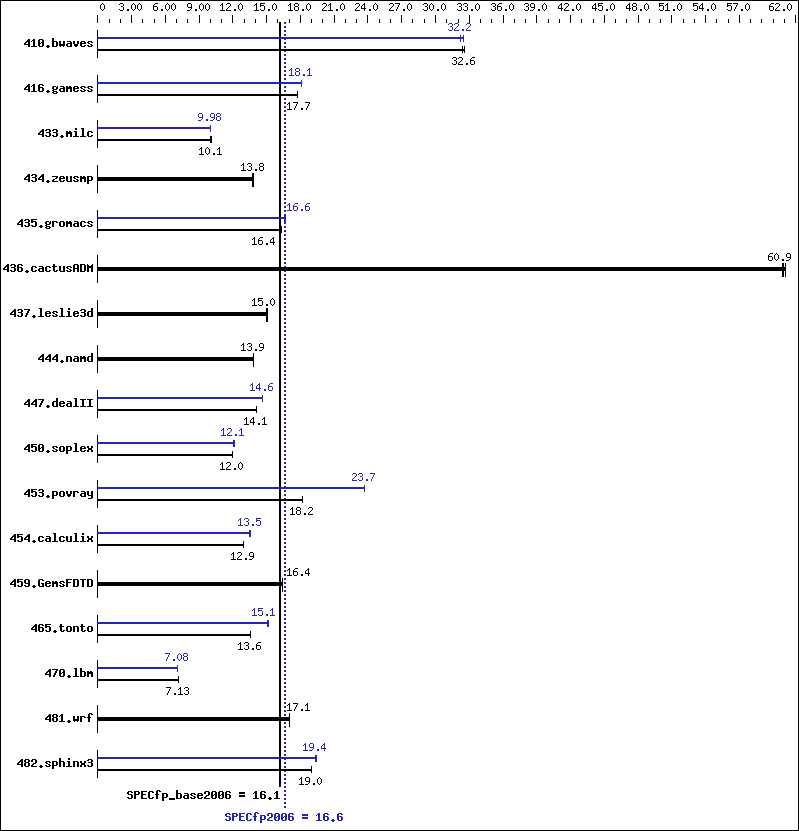

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 410.bwaves | 419 | 32.4 | 417 | 32.6 | 417 | 32.6 | 418 | 32.5 | 422 | 32.2 | 422 | 32.2 |
| 416.gamess | 1104 | 17.7 | 1103 | 17.7 | 1103 | 17.7 | 1082 | 18.1 | 1082 | 18.1 | 1082 | 18.1 |
| 433.milc | 912 | 10.1 | 913 | 10.1 | 913 | 10.0 | 915 | 10.0 | 920 | 9.98 | 920 | 9.98 |
| 434.zeusmp | 660 | 13.8 | 660 | 13.8 | 660 | 13.8 | 660 | 13.8 | 660 | 13.8 | 660 | 13.8 |
| 435.gromacs | 437 | 16.4 | 437 | 16.4 | 437 | 16.4 | 429 | 16.7 | 430 | 16.6 | 430 | 16.6 |
| 436.cactusADM | 196 | 61.1 | 197 | 60.8 | 196 | 60.9 | 196 | 61.1 | 197 | 60.8 | 196 | 60.9 |
| 437.leslie3d | 627 | 15.0 | 624 | 15.1 | 625 | 15.0 | 627 | 15.0 | 624 | 15.1 | 625 | 15.0 |
| 444.namd | 578 | 13.9 | 578 | 13.9 | 578 | 13.9 | 578 | 13.9 | 578 | 13.9 | 578 | 13.9 |
| 447.dealII | 814 | 14.1 | 813 | 14.1 | 814 | 14.1 | 783 | 14.6 | 784 | 14.6 | 783 | 14.6 |
| 450.soplex | 698 | 12.0 | 698 | 12.0 | 698 | 12.0 | 689 | 12.1 | 691 | 12.1 | 690 | 12.1 |
| 453.povray | 292 | 18.2 | 292 | 18.2 | 292 | 18.2 | 225 | 23.7 | 225 | 23.7 | 225 | 23.7 |
| 454.calculix | 638 | 12.9 | 638 | 12.9 | 638 | 12.9 | 609 | 13.5 | 610 | 13.5 | 610 | 13.5 |
| 459.GemsFDTD | 648 | 16.4 | 648 | 16.4 | 647 | 16.4 | 648 | 16.4 | 648 | 16.4 | 647 | 16.4 |
| 465.tonto | 726 | 13.6 | 725 | 13.6 | 725 | 13.6 | 648 | 15.2 | 651 | 15.1 | 651 | 15.1 |
| 470.lbm | 1927 | 7.13 | 1927 | 7.13 | 1926 | 7.14 | 1936 | 7.10 | 1942 | 7.07 | 1941 | 7.08 |
| 481.wrf | 655 | 17.1 | 655 | 17.1 | 655 | 17.1 | 655 | 17.1 | 655 | 17.1 | 655 | 17.1 |
| 482.sphinx3 | 1028 | 19.0 | 1026 | 19.0 | 1026 | 19.0 | 1006 | 19.4 | 1005 | 19.4 | 1005 | 19.4 |
General Notes
The system bus runs at 1333 MHz All binaries were built with 64-bit Intel compiler.
Base Compiler Invocation
C benchmarks:
| icl -Qvc8 -Qc99 |
C++ benchmarks:
| icl -Qvc8 |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icl -Qvc8 -Qc99 ifort |
Base Portability Flags
| 410.bwaves: | -DSPEC_CPU_P64 |
| 416.gamess: | -DSPEC_CPU_P64 |
| 433.milc: | -D_Complex= -DSPEC_CPU_P64 |
| 434.zeusmp: | -DSPEC_CPU_P64 |
| 435.gromacs: | -D_Complex= -DSPEC_CPU_P64 |
| 436.cactusADM: | -D_Complex= -DSPEC_CPU_P64 -Qlowercase /assume:underscore |
| 437.leslie3d: | -DSPEC_CPU_P64 |
| 444.namd: | -DSPEC_CPU_P64 /TP |
| 447.dealII: | -D_Complex= -DSPEC_CPU_P64 -DBOOST_NO_INTRINSIC_WCHAR_T -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG |
| 450.soplex: | -DSPEC_CPU_P64 |
| 453.povray: | -DSPEC_CPU_P64 -DSPEC_CPU_WINDOWS_ICL |
| 454.calculix: | -D_Complex= -DSPEC_CPU_P64 -DSPEC_CPU_NOZMODIFIER -Qlowercase |
| 459.GemsFDTD: | -DSPEC_CPU_P64 |
| 465.tonto: | -DSPEC_CPU_P64 |
| 470.lbm: | -D_Complex= -DSPEC_CPU_P64 |
| 481.wrf: | -DSPEC_CPU_P64 -DSPEC_CPU_WINDOWS_ICL |
| 482.sphinx3: | -D_Complex= -DSPEC_CPU_P64 |
Base Optimization Flags
C benchmarks:
| -fast -Qparallel -F950000000 -link -FORCE:MULTIPLE |
C++ benchmarks:
| -fast -Qparallel -Qcxx-features -F950000000 -link -FORCE:MULTIPLE |
Fortran benchmarks:
| -fast -Qparallel -F950000000 -link -FORCE:MULTIPLE |
Benchmarks using both Fortran and C:
| -fast -Qparallel -F950000000 -link -FORCE:MULTIPLE |
Peak Compiler Invocation
C benchmarks:
| icl -Qvc8 -Qc99 |
C++ benchmarks:
| icl -Qvc8 |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icl -Qvc8 -Qc99 ifort |
Peak Portability Flags
Same as Base Portability Flags
Peak Optimization Flags
C benchmarks:
| -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -F950000000 -link -FORCE:MULTIPLE |
C++ benchmarks:
| 444.namd: | basepeak = yes |
| 447.dealII: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qcxx-features -F950000000 -link -FORCE:MULTIPLE |
| 450.soplex: | Same as 447.dealII |
| 453.povray: | Same as 447.dealII |
Fortran benchmarks:
| 410.bwaves: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qparallel -F950000000 -link -FORCE:MULTIPLE |
| 416.gamess: | -fast -F950000000 -link -FORCE:MULTIPLE |
| 434.zeusmp: | basepeak = yes |
| 437.leslie3d: | basepeak = yes |
| 459.GemsFDTD: | basepeak = yes |
| 465.tonto: | Same as 410.bwaves |
Benchmarks using both Fortran and C:
| 435.gromacs: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -F950000000 -link -FORCE:MULTIPLE |
| 436.cactusADM: | basepeak = yes |
| 454.calculix: | Same as 435.gromacs |
| 481.wrf: | basepeak = yes |
