SPEC® CFP2006 Result

NEC Corporation

Express5800/110Rh-1
(Intel Xeon processor 3060)

SPECfp®_rate2006 = 24.4

SPECfp_rate_base2006 = 23.7

CPU2006 license:	9006	Test date:	Nov-2007
Test sponsor:	NEC Corporation	Hardware Availability:	Nov-2006
Tested by:	NEC Corporation	Software Availability:	Apr-2007

Hardware
CPU Name:	Intel Xeon 3060
CPU Characteristics:	2.40 GHz, 4 MB L2, 1066 MHz bus
CPU MHz:	2400
FPU:	Integrated
CPU(s) enabled:	2 cores, 1 chip, 2 cores/chip
CPU(s) orderable:	1 chip
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	4 MB I+D on chip per chip
L3 Cache:	None
Other Cache:	None
Memory:	4 GB (4x1 GB PC2-5300E, 2 rank, CL5-5-5, ECC)
Disk Subsystem:	1x80 GB SATAII, 7200RPM
Other Hardware:	None

Software
Operating System:	SUSE Linux Enterprise Server 10 (x86_64), Kernel 2.6.16.21-0.8-smp
Compiler:	Intel C++ Compiler for Linux32 and Linux64 version 9.1 Build 20070320 Package ID: l_cc_c_9.1.049 Intel Fortran Compiler for Linux32 and Linux64 version 9.1 Build 20070320 Package ID: l_fc_c_9.1.045
Auto Parallel:	No
File System:	ext2
System State:	Multiuser, Runlevel 3
Base Pointers:	64-bit
Peak Pointers:	32/64-bit
Other Software:	None

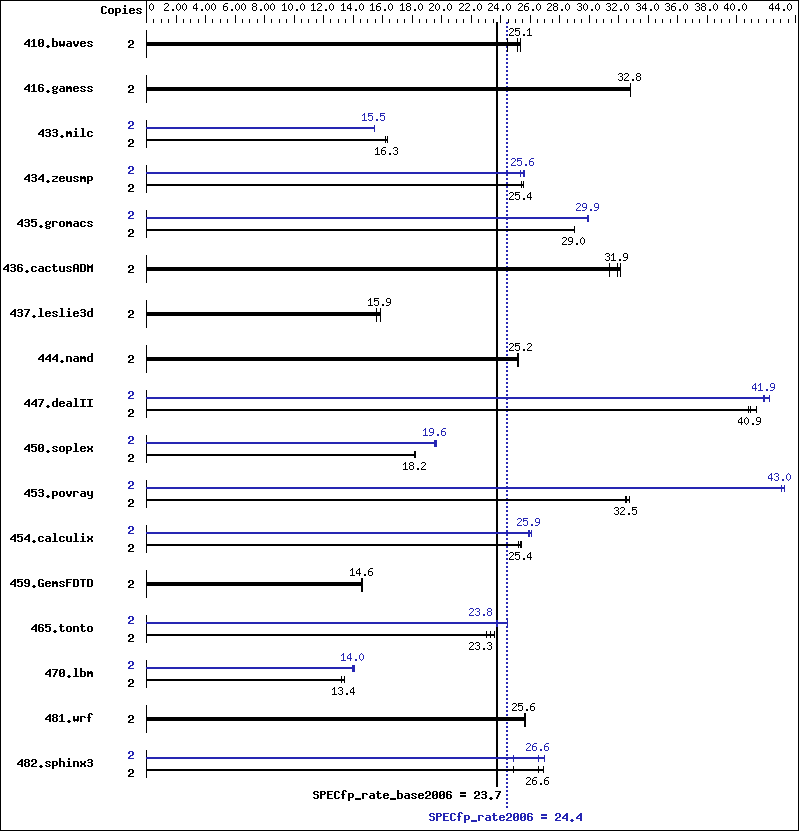

Results Table

Benchmark	Base							Peak
Benchmark	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves	2	1112	24.4	1082	25.1	1074	25.3	2	1112	24.4	1082	25.1	1074	25.3
416.gamess	2	1194	32.8	1194	32.8	1194	32.8	2	1194	32.8	1194	32.8	1194	32.8
433.milc	2	1132	16.2	1125	16.3	1124	16.3	2	1186	15.5	1188	15.5	1188	15.5
434.zeusmp	2	715	25.4	716	25.4	713	25.5	2	710	25.6	717	25.4	712	25.6
435.gromacs	2	492	29.0	492	29.0	492	29.0	2	477	29.9	477	29.9	477	29.9
436.cactusADM	2	762	31.4	749	31.9	743	32.1	2	762	31.4	749	31.9	743	32.1
437.leslie3d	2	1204	15.6	1185	15.9	1183	15.9	2	1204	15.6	1185	15.9	1183	15.9
444.namd	2	637	25.2	637	25.2	637	25.2	2	637	25.2	637	25.2	637	25.2
447.dealII	2	559	40.9	561	40.8	554	41.3	2	546	41.9	547	41.8	542	42.2
450.soplex	2	920	18.1	914	18.2	915	18.2	2	850	19.6	855	19.5	850	19.6
453.povray	2	325	32.7	328	32.4	327	32.5	2	247	43.0	246	43.2	247	43.0
454.calculix	2	655	25.2	651	25.4	650	25.4	2	633	26.1	638	25.9	636	25.9
459.GemsFDTD	2	1458	14.6	1449	14.6	1451	14.6	2	1458	14.6	1449	14.6	1451	14.6
465.tonto	2	853	23.1	835	23.6	845	23.3	2	829	23.7	826	23.8	805	24.5
470.lbm	2	2077	13.2	2046	13.4	2049	13.4	2	1963	14.0	1968	14.0	1948	14.1
481.wrf	2	872	25.6	872	25.6	871	25.7	2	872	25.6	872	25.6	871	25.7
482.sphinx3	2	1567	24.9	1448	26.9	1468	26.6	2	1466	26.6	1568	24.9	1445	27.0

Operating System Notes

 'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
 '/usr/bin/taskset' used to bind processes to CPUs

General Notes

 The system bus runs at 1066 MHz
 All binaries were built with 64-bit Intel compiler except:
 433.milc, 434.zeusmp, 450.soplex, 470.lbm and 482.sphinx3 in peak were built with
 32-bit Intel compiler by changing the path for include and library files.

Base Compiler Invocation

C benchmarks:

icc

C++ benchmarks:

icpc

Fortran benchmarks:

ifort

Benchmarks using both Fortran and C:

icc ifort

Base Portability Flags

410.bwaves:	-DSPEC_CPU_LP64
416.gamess:	-DSPEC_CPU_LP64
433.milc:	-DSPEC_CPU_LP64
434.zeusmp:	-DSPEC_CPU_LP64
435.gromacs:	-DSPEC_CPU_LP64 -nofor_main
436.cactusADM:	-DSPEC_CPU_LP64 -nofor_main
437.leslie3d:	-DSPEC_CPU_LP64
444.namd:	-DSPEC_CPU_LP64
447.dealII:	-DSPEC_CPU_LP64
450.soplex:	-DSPEC_CPU_LP64
453.povray:	-DSPEC_CPU_LP64
454.calculix:	-DSPEC_CPU_LP64 -nofor_main
459.GemsFDTD:	-DSPEC_CPU_LP64
465.tonto:	-DSPEC_CPU_LP64
470.lbm:	-DSPEC_CPU_LP64
481.wrf:	-DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX
482.sphinx3:	-DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

-fast

C++ benchmarks:

-fast

Fortran benchmarks:

-fast

Benchmarks using both Fortran and C:

-fast

Peak Compiler Invocation

C benchmarks:

/opt/intel/cc/9.1.049/bin/icc -I/opt/intel/cc/9.1.049/include -L/opt/intel/cc/9.1.049/lib

C++ benchmarks (except as noted below):

	icpc
450.soplex:	/opt/intel/cc/9.1.049/bin/icpc -I/opt/intel/cc/9.1.049/include -L/opt/intel/cc/9.1.049/lib

Fortran benchmarks (except as noted below):

	ifort
434.zeusmp:	/opt/intel/fc/9.1.045/bin/ifort -I/opt/intel/fc/9.1.045/include -L/opt/intel/fc/9.1.045/lib

Benchmarks using both Fortran and C:

icc ifort

Peak Portability Flags

410.bwaves:	-DSPEC_CPU_LP64
416.gamess:	-DSPEC_CPU_LP64
435.gromacs:	-DSPEC_CPU_LP64 -nofor_main
436.cactusADM:	-DSPEC_CPU_LP64 -nofor_main
437.leslie3d:	-DSPEC_CPU_LP64
444.namd:	-DSPEC_CPU_LP64
447.dealII:	-DSPEC_CPU_LP64
453.povray:	-DSPEC_CPU_LP64
454.calculix:	-DSPEC_CPU_LP64 -nofor_main
459.GemsFDTD:	-DSPEC_CPU_LP64
465.tonto:	-DSPEC_CPU_LP64
481.wrf:	-DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

433.milc:	-prof_gen(pass 1) -prof_use(pass 2) -fast
470.lbm:	Same as 433.milc
482.sphinx3:	-fast

C++ benchmarks:

444.namd:	basepeak = yes
447.dealII:	-prof_gen(pass 1) -prof_use(pass 2) -fast
450.soplex:	Same as 447.dealII
453.povray:	Same as 447.dealII

Fortran benchmarks:

410.bwaves:	basepeak = yes
416.gamess:	basepeak = yes
434.zeusmp:	-fast
437.leslie3d:	basepeak = yes
459.GemsFDTD:	basepeak = yes
465.tonto:	-prof_gen(pass 1) -prof_use(pass 2) -fast

Benchmarks using both Fortran and C:

435.gromacs:	-prof_gen(pass 1) -prof_use(pass 2) -fast
436.cactusADM:	basepeak = yes
454.calculix:	Same as 435.gromacs
481.wrf:	basepeak = yes

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/NEC-ic91-FP-linux-flags.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/NEC-ic91-FP-linux-flags.xml.
