| CPU2006 license: | 9006 | Test date: | Nov-2007 |
|---|---|---|---|
| Test sponsor: | NEC Corporation | Hardware Availability: | May-2007 |
| Tested by: | NEC Corporation | Software Availability: | Apr-2007 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon 3040 |
| CPU Characteristics: | 1.86 GHz, 2 MB L2, 1066 MHz bus |
| CPU MHz: | 1866 |
| FPU: | Integrated |
| CPU(s) enabled: | 2 cores, 1 chip, 2 cores/chip |
| CPU(s) orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 2 MB I+D on chip per chip |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 4 GB (4x1 GB PC2-5300E, 2 rank, CL5-5-5, ECC) |
| Disk Subsystem: | 1x80 GB SATAII, 7200RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Windows Server 2003 Standard x64 Edition Service Pack1 |
| Compiler: | Intel C++ Compiler for EM64T version 9.1 Build 20070322, Package-ID W_CC_C_9.1.037 Intel Fortran Compiler for EM64T version 9.1 Build 20070322, Package-ID W_FC_C_9.1.037 Microsoft Visual Studio 2005 (libr. & linker) |
| Auto Parallel: | Yes |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 64-bit |
| Peak Pointers: | 64-bit |
| Other Software: | None |

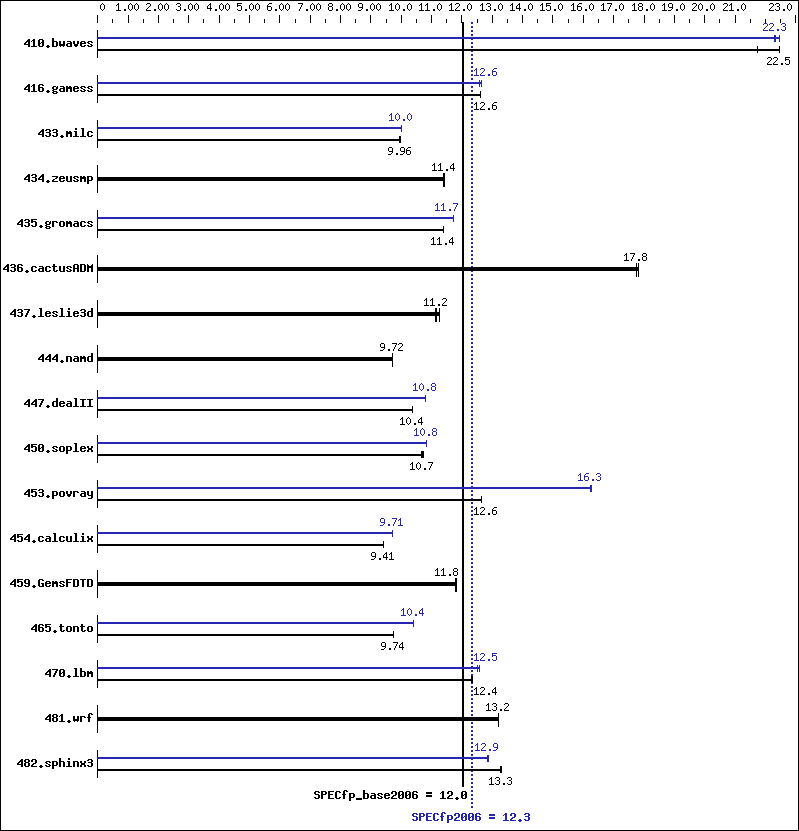

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 410.bwaves | 625 | 21.7 | 605 | 22.5 | 605 | 22.5 | 605 | 22.5 | 610 | 22.3 | 609 | 22.3 |
| 416.gamess | 1553 | 12.6 | 1553 | 12.6 | 1554 | 12.6 | 1549 | 12.6 | 1556 | 12.6 | 1556 | 12.6 |
| 433.milc | 922 | 9.96 | 922 | 9.95 | 921 | 9.97 | 918 | 10.0 | 917 | 10.0 | 917 | 10.0 |
| 434.zeusmp | 798 | 11.4 | 797 | 11.4 | 796 | 11.4 | 798 | 11.4 | 797 | 11.4 | 796 | 11.4 |
| 435.gromacs | 627 | 11.4 | 628 | 11.4 | 628 | 11.4 | 609 | 11.7 | 609 | 11.7 | 609 | 11.7 |
| 436.cactusADM | 673 | 17.8 | 670 | 17.8 | 674 | 17.7 | 673 | 17.8 | 670 | 17.8 | 674 | 17.7 |
| 437.leslie3d | 836 | 11.2 | 844 | 11.1 | 841 | 11.2 | 836 | 11.2 | 844 | 11.1 | 841 | 11.2 |
| 444.namd | 825 | 9.73 | 825 | 9.72 | 825 | 9.72 | 825 | 9.73 | 825 | 9.72 | 825 | 9.72 |
| 447.dealII | 1104 | 10.4 | 1104 | 10.4 | 1104 | 10.4 | 1060 | 10.8 | 1060 | 10.8 | 1060 | 10.8 |
| 450.soplex | 781 | 10.7 | 779 | 10.7 | 777 | 10.7 | 769 | 10.8 | 770 | 10.8 | 769 | 10.8 |
| 453.povray | 421 | 12.6 | 421 | 12.6 | 421 | 12.6 | 328 | 16.2 | 327 | 16.3 | 327 | 16.3 |
| 454.calculix | 877 | 9.41 | 877 | 9.41 | 877 | 9.41 | 850 | 9.71 | 850 | 9.70 | 849 | 9.71 |
| 459.GemsFDTD | 899 | 11.8 | 898 | 11.8 | 898 | 11.8 | 899 | 11.8 | 898 | 11.8 | 898 | 11.8 |
| 465.tonto | 1011 | 9.73 | 1010 | 9.74 | 1010 | 9.74 | 947 | 10.4 | 946 | 10.4 | 946 | 10.4 |
| 470.lbm | 1117 | 12.3 | 1112 | 12.4 | 1112 | 12.4 | 1099 | 12.5 | 1098 | 12.5 | 1091 | 12.6 |
| 481.wrf | 847 | 13.2 | 846 | 13.2 | 846 | 13.2 | 847 | 13.2 | 846 | 13.2 | 846 | 13.2 |
| 482.sphinx3 | 1469 | 13.3 | 1465 | 13.3 | 1466 | 13.3 | 1515 | 12.9 | 1517 | 12.8 | 1516 | 12.9 |
General Notes
The system bus runs at 1066 MHz All binaries were built with 64-bit Intel compiler.
Base Compiler Invocation
C benchmarks:
| icl -Qvc8 -Qc99 |
C++ benchmarks:
| icl -Qvc8 |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icl -Qvc8 -Qc99 ifort |
Base Portability Flags
| 410.bwaves: | -DSPEC_CPU_P64 |
| 416.gamess: | -DSPEC_CPU_P64 |
| 433.milc: | -D_Complex= -DSPEC_CPU_P64 |
| 434.zeusmp: | -DSPEC_CPU_P64 |
| 435.gromacs: | -D_Complex= -DSPEC_CPU_P64 |
| 436.cactusADM: | -D_Complex= -DSPEC_CPU_P64 -Qlowercase /assume:underscore |
| 437.leslie3d: | -DSPEC_CPU_P64 |
| 444.namd: | -DSPEC_CPU_P64 /TP |
| 447.dealII: | -D_Complex= -DSPEC_CPU_P64 -DBOOST_NO_INTRINSIC_WCHAR_T -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG |
| 450.soplex: | -DSPEC_CPU_P64 |
| 453.povray: | -DSPEC_CPU_P64 -DSPEC_CPU_WINDOWS_ICL |
| 454.calculix: | -D_Complex= -DSPEC_CPU_P64 -DSPEC_CPU_NOZMODIFIER -Qlowercase |
| 459.GemsFDTD: | -DSPEC_CPU_P64 |
| 465.tonto: | -DSPEC_CPU_P64 |
| 470.lbm: | -D_Complex= -DSPEC_CPU_P64 |
| 481.wrf: | -DSPEC_CPU_P64 -DSPEC_CPU_WINDOWS_ICL |
| 482.sphinx3: | -D_Complex= -DSPEC_CPU_P64 |
Base Optimization Flags
C benchmarks:
| -fast -Qparallel -F950000000 -link -FORCE:MULTIPLE |
C++ benchmarks:
| -fast -Qparallel -Qcxx-features -F950000000 -link -FORCE:MULTIPLE |
Fortran benchmarks:
| -fast -Qparallel -F950000000 -link -FORCE:MULTIPLE |
Benchmarks using both Fortran and C:
| -fast -Qparallel -F950000000 -link -FORCE:MULTIPLE |
Peak Compiler Invocation
C benchmarks:
| icl -Qvc8 -Qc99 |
C++ benchmarks:
| icl -Qvc8 |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icl -Qvc8 -Qc99 ifort |
Peak Portability Flags
Same as Base Portability Flags
Peak Optimization Flags
C benchmarks:
| -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -F950000000 -link -FORCE:MULTIPLE |
C++ benchmarks:
| 444.namd: | basepeak = yes |
| 447.dealII: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qcxx-features -F950000000 -link -FORCE:MULTIPLE |
| 450.soplex: | Same as 447.dealII |
| 453.povray: | Same as 447.dealII |
Fortran benchmarks:
| 410.bwaves: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qparallel -F950000000 -link -FORCE:MULTIPLE |
| 416.gamess: | -fast -F950000000 -link -FORCE:MULTIPLE |
| 434.zeusmp: | basepeak = yes |
| 437.leslie3d: | basepeak = yes |
| 459.GemsFDTD: | basepeak = yes |
| 465.tonto: | Same as 410.bwaves |
Benchmarks using both Fortran and C:
| 435.gromacs: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -F950000000 -link -FORCE:MULTIPLE |
| 436.cactusADM: | basepeak = yes |
| 454.calculix: | Same as 435.gromacs |
| 481.wrf: | basepeak = yes |
