SPEC® CINT2006 Result

Fujitsu Siemens Computers

PRIMERGY BX620 S4, Intel Xeon processor E5430,
2.66 GHz

SPECint®_rate2006 = 101

SPECint_rate_base2006 = 101

CPU2006 license:	22	Test date:	Nov-2007
Test sponsor:	Fujitsu Siemens Computers	Hardware Availability:	Dec-2007
Tested by:	Fujitsu Siemens Computers	Software Availability:	Nov-2007

Hardware
CPU Name:	Intel Xeon E5430
CPU Characteristics:	1333 MHz system bus
CPU MHz:	2667
FPU:	Integrated
CPU(s) enabled:	8 cores, 2 chips, 4 cores/chip
CPU(s) orderable:	1,2 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	12 MB I+D on chip per chip, 6 MB shared / 2 cores
L3 Cache:	None
Other Cache:	None
Memory:	16 GB (8x2 GB PC2-5300F, 2 rank, CAS 5-5-5, with ECC)
Disk Subsystem:	Seagate ST973451SS (SAS, 73GB, 15000rpm)
Other Hardware:	None

Software
Operating System:	SUSE Linux Enterprise Server 10 (x86_64) SP1, Kernel 2.6.16.46-0.12-smp
Compiler:	Intel C++ Compiler for Linux32 and Linux64 Version 10.1 - Build 20070725
Auto Parallel:	No
File System:	ext2
System State:	Multiuser, Runlevel 3
Base Pointers:	32-bit
Peak Pointers:	32-bit
Other Software:	Smart Heap Library, Version 8.1 binutils-2.17.tar.gz, Version 2.17

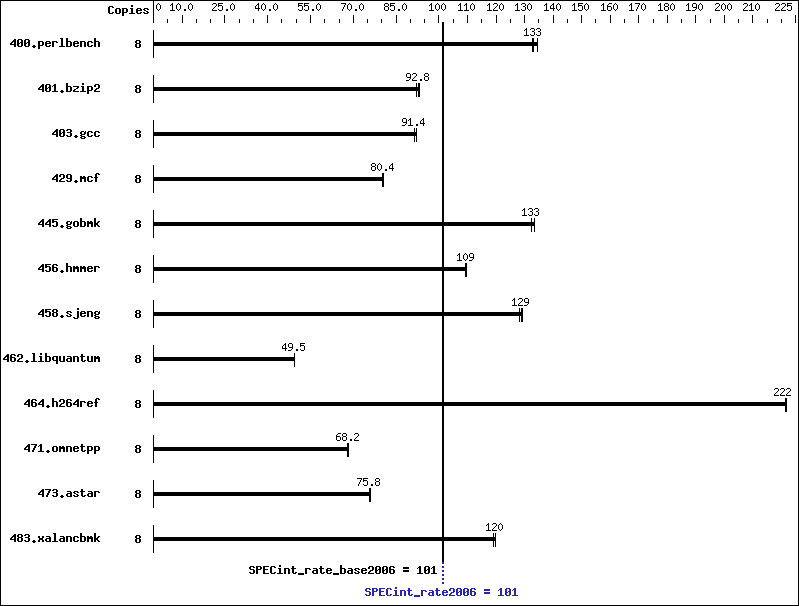

Results Table

Benchmark	Base							Peak
Benchmark	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench	8	581	135	588	133	588	133	8	581	135	588	133	588	133
401.bzip2	8	832	92.8	836	92.3	828	93.2	8	832	92.8	836	92.3	828	93.2
403.gcc	8	705	91.3	700	92.0	705	91.4	8	705	91.3	700	92.0	705	91.4
429.mcf	8	907	80.4	909	80.3	906	80.5	8	907	80.4	909	80.3	906	80.5
445.gobmk	8	633	133	629	133	633	132	8	633	133	629	133	633	132
456.hmmer	8	682	109	682	109	681	110	8	682	109	682	109	681	110
458.sjeng	8	750	129	751	129	755	128	8	750	129	751	129	755	128
462.libquantum	8	3347	49.5	3347	49.5	3347	49.5	8	3347	49.5	3347	49.5	3347	49.5
464.h264ref	8	799	222	800	221	798	222	8	799	222	800	221	798	222
471.omnetpp	8	731	68.4	737	67.8	733	68.2	8	731	68.4	737	67.8	733	68.2
473.astar	8	742	75.7	740	75.9	741	75.8	8	742	75.7	740	75.9	741	75.8
483.xalancbmk	8	463	119	461	120	461	120	8	463	119	461	120	461	120

General Notes


 This result has been produced with binaries provided and compiled by Intel.

 BIOS configuration:
 Hardware Prefetch = Disable, Adjacent Sector Prefetch = Disable

 For information about Fujitsu Siemens Computers please see:
 http://www.fujitsu-siemens.com

Base Compiler Invocation

C benchmarks:

icc

C++ benchmarks:

icpc

Base Portability Flags

400.perlbench:	-DSPEC_CPU_LINUX_IA32
462.libquantum:	-DSPEC_CPU_LINUX
483.xalancbmk:	-DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

-fast -inline-calloc -opt-malloc-options=3

C++ benchmarks:

-xT -ipo -O3 -no-prec-div -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.0/lib -lsmartheap

Base Other Flags

C benchmarks:

403.gcc:

-Dalloca=_alloca

Peak Optimization Flags

C benchmarks:

400.perlbench:	basepeak = yes
401.bzip2:	basepeak = yes
403.gcc:	basepeak = yes
429.mcf:	basepeak = yes
445.gobmk:	basepeak = yes
456.hmmer:	basepeak = yes
458.sjeng:	basepeak = yes
462.libquantum:	basepeak = yes
464.h264ref:	basepeak = yes

C++ benchmarks:

471.omnetpp:	basepeak = yes
473.astar:	basepeak = yes
483.xalancbmk:	basepeak = yes

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic10-ia32-intel64-linux-flags.20090714.06.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Intel-ic10-ia32-intel64-linux-flags.20090714.06.xml.
