| CPU2006 license: | 13 | Test date: | Nov-2007 |
|---|---|---|---|
| Test sponsor: | Intel Corporation | Hardware Availability: | Nov-2007 |
| Tested by: | Intel Corporation | Software Availability: | Nov-2007 |
| Hardware | |
|---|---|
| CPU Name: | Intel Core 2 Extreme QX9650 |
| CPU Characteristics: | 3.00 GHz 1333 MHz FSB |
| CPU MHz: | 3000 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 1 chip, 4 cores/chip |
| CPU(s) orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 12 MB I+D on chip per chip, 6 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 4 GB (4x1GB Corsair TWIN3X2048-1333C9DHX DDR3-1333 CL9) |
| Disk Subsystem: | Seagate 320GB NCQ SATA, 16MB cache, 7200 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Windows Vista64 Ultimate |
| Compiler: | Intel C++ Compiler for IA32 version 10.1 Build 20070913 Package ID: w_cc_p_10.1.011 Intel Fortran Compiler for IA32 version 10.1 Build 20070913 Package ID: w_fc_p_10.1.011 Microsoft Visual Studio 2005 SP1 (for libraries) |
| Auto Parallel: | Yes |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32-bit |
| Other Software: | SmartHeap Library Version 8.1 from http://www.microquill.com/ |

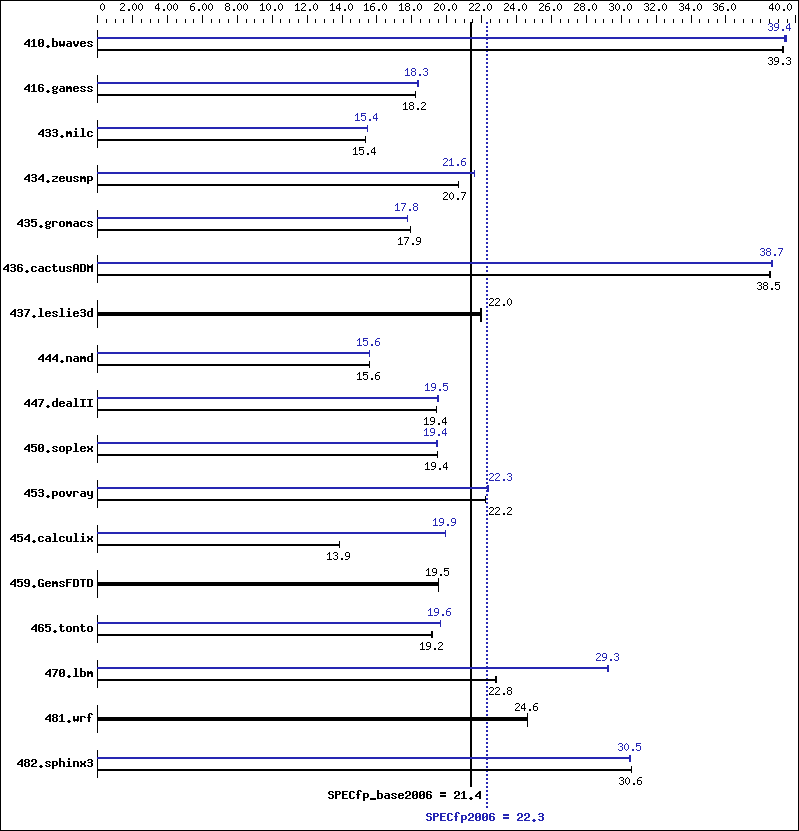

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 410.bwaves | 346 | 39.3 | 346 | 39.2 | 346 | 39.3 | 345 | 39.4 | 345 | 39.4 | 345 | 39.4 |
| 416.gamess | 1076 | 18.2 | 1077 | 18.2 | 1076 | 18.2 | 1067 | 18.3 | 1067 | 18.3 | 1066 | 18.4 |
| 433.milc | 597 | 15.4 | 598 | 15.4 | 598 | 15.4 | 594 | 15.4 | 594 | 15.4 | 594 | 15.5 |
| 434.zeusmp | 440 | 20.7 | 440 | 20.7 | 440 | 20.7 | 422 | 21.6 | 422 | 21.6 | 422 | 21.6 |
| 435.gromacs | 398 | 17.9 | 398 | 17.9 | 398 | 17.9 | 402 | 17.8 | 402 | 17.8 | 402 | 17.8 |
| 436.cactusADM | 310 | 38.5 | 310 | 38.5 | 310 | 38.5 | 309 | 38.7 | 309 | 38.6 | 309 | 38.7 |
| 437.leslie3d | 428 | 22.0 | 428 | 22.0 | 428 | 22.0 | 428 | 22.0 | 428 | 22.0 | 428 | 22.0 |
| 444.namd | 516 | 15.6 | 516 | 15.6 | 516 | 15.6 | 516 | 15.6 | 516 | 15.6 | 516 | 15.6 |
| 447.dealII | 589 | 19.4 | 589 | 19.4 | 589 | 19.4 | 587 | 19.5 | 587 | 19.5 | 587 | 19.5 |
| 450.soplex | 429 | 19.4 | 429 | 19.5 | 429 | 19.4 | 429 | 19.4 | 429 | 19.4 | 429 | 19.5 |
| 453.povray | 240 | 22.2 | 239 | 22.2 | 240 | 22.2 | 238 | 22.3 | 238 | 22.4 | 238 | 22.3 |
| 454.calculix | 594 | 13.9 | 594 | 13.9 | 595 | 13.9 | 414 | 19.9 | 414 | 19.9 | 414 | 19.9 |
| 459.GemsFDTD | 543 | 19.5 | 544 | 19.5 | 543 | 19.5 | 543 | 19.5 | 544 | 19.5 | 543 | 19.5 |
| 465.tonto | 513 | 19.2 | 514 | 19.2 | 514 | 19.2 | 501 | 19.6 | 501 | 19.6 | 501 | 19.6 |
| 470.lbm | 602 | 22.8 | 602 | 22.8 | 602 | 22.8 | 469 | 29.3 | 469 | 29.3 | 470 | 29.2 |
| 481.wrf | 454 | 24.6 | 453 | 24.6 | 453 | 24.6 | 454 | 24.6 | 453 | 24.6 | 453 | 24.6 |
| 482.sphinx3 | 638 | 30.6 | 638 | 30.6 | 638 | 30.6 | 639 | 30.5 | 639 | 30.5 | 639 | 30.5 |
General Notes
Tested systems can be used with Shin-G ATX case, Antec NeoPower 480W power supply Product description located as of 11/2007: http://www.asus.com/products.aspx?l1=3&l2=11&l3=572&l4=0&model=1872&modelmenu=1 The system bus runs at 1333 MHz System was configured with Asus EN8800GTX discrete graphics card Binaries were built on Windows Vista32 The following VS 2005 SP1 updates were applied: KB926601 and KB932232
Base Compiler Invocation
C benchmarks:
| icl -Qvc8 -Qc99 |
C++ benchmarks:
| icl -Qvc8 |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icl -Qvc8 -Qc99 ifort |
Base Portability Flags
| 436.cactusADM: | -Qlowercase /assume:underscore |
| 444.namd: | -TP |
| 447.dealII: | -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG |
| 453.povray: | -DSPEC_CPU_WINDOWS_ICL |
| 454.calculix: | -DSPEC_CPU_NOZMODIFIER -Qlowercase |
| 481.wrf: | -DSPEC_CPU_WINDOWS_ICL |
Base Optimization Flags
C benchmarks:
| -fast -Qparallel /F1000000000 libguide40.lib |
C++ benchmarks:
| -fast -Qparallel -Qcxx_features /F1000000000 shlw32m.lib libguide40.lib -link /FORCE:MULTIPLE |
Fortran benchmarks:
| -fast -Qparallel /F1000000000 libguide40.lib |
Benchmarks using both Fortran and C:
| -fast -Qparallel /F1000000000 libguide40.lib |
Peak Compiler Invocation
C benchmarks:
| icl -Qvc8 -Qc99 |
C++ benchmarks:
| icl -Qvc8 |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icl -Qvc8 -Qc99 ifort |
Peak Portability Flags
| 436.cactusADM: | -Qlowercase /assume:underscore |
| 444.namd: | -TP |
| 447.dealII: | -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG |
| 453.povray: | -DSPEC_CPU_WINDOWS_ICL |
| 454.calculix: | -DSPEC_CPU_NOZMODIFIER -Qlowercase |
| 481.wrf: | -DSPEC_CPU_WINDOWS_ICL |
Peak Optimization Flags
C benchmarks:
| 433.milc: | -fast -Qunroll2 -Oa /F1000000000 libguide40.lib |
| 470.lbm: | -fast -Qunroll2 -Qscalar-rep- -Qprefetch /F1000000000 libguide40.lib |
| 482.sphinx3: | -fast -Qunroll2 /F1000000000 libguide40.lib |
C++ benchmarks:
Fortran benchmarks:
| 410.bwaves: | -fast -Qparallel -Qprefetch /F1000000000 libguide40.lib |
| 416.gamess: | -fast -Qunroll2 -Ob0 -Qansi-alias -Qscalar-rep- /F1000000000 libguide40.lib |
| 434.zeusmp: | -QxT -O2 -Qprec-div- -Qunroll0 -Qscalar-rep- /F1000000000 libguide40.lib |
| 437.leslie3d: | basepeak = yes |
| 459.GemsFDTD: | basepeak = yes |
| 465.tonto: | -fast -Qunroll4 -Qauto /F1000000000 libguide40.lib |
Benchmarks using both Fortran and C:
| 435.gromacs: | -fast -Oa -Qprefetch /F1000000000 libguide40.lib |
| 436.cactusADM: | -fast -Qunroll2 -Qparallel -Qprefetch /F1000000000 libguide40.lib |
| 454.calculix: | -fast -Qunroll-aggressive /F1000000000 libguide40.lib |
| 481.wrf: | basepeak = yes |
