SPEC® CINT2006 Result

NEC Corporation

Express5800/120Bb-6
(Intel Xeon processor E5345)

Hardware
CPU Name:	Intel Xeon E5345
CPU Characteristics:	2.33 GHz, 2x4 MB L2 shared, 1333 MHz bus
CPU MHz:	2333
FPU:	Integrated
CPU(s) enabled:	8 cores, 2 chips, 4 cores/chip
CPU(s) orderable:	1,2 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	8 MB I+D on chip per chip, 4 MB shared / 2 cores
L3 Cache:	None
Other Cache:	None
Memory:	16 GB (4x4 GB PC2-5300F, 2 rank, CL5-5-5, ECC)
Disk Subsystem:	1x146.5 GB SAS, 10000RPM
Other Hardware:	None

Software
Operating System:	64-Bit SUSE LINUX Enterprise Server 10, Kernel 2.6.16.21-0.8-smp for x86_64
Compiler:	Intel C++ Compiler for IA32/EM64T application, Version 10.0 - Build 20070426 Package ID: l_cc_p_10.0.023
Auto Parallel:	No
File System:	ext2
System State:	Multiuser, Runlevel 3
Base Pointers:	32-bit
Peak Pointers:	32/64-bit
Other Software:	MicroQuill SmartHeap library 8.1 binutils-2.17.tar.gz, Version 2.17

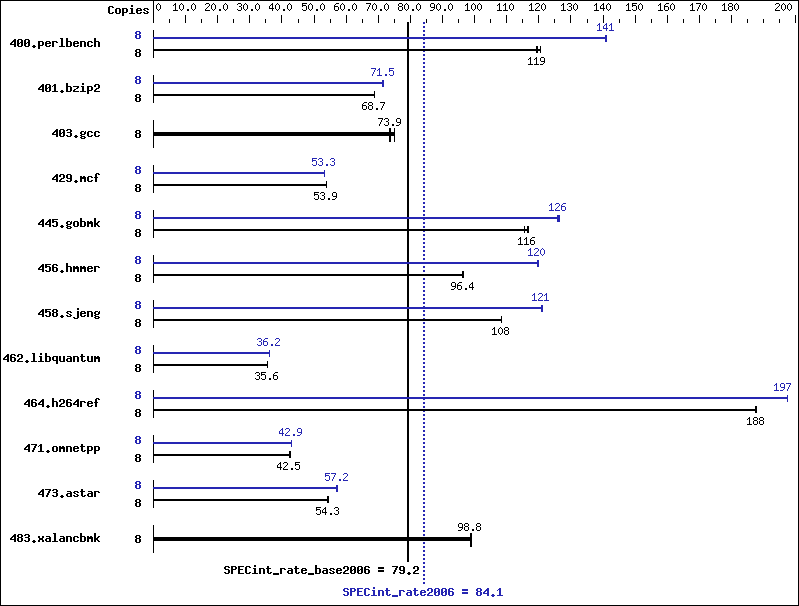

Results Table

Benchmark	Base							Peak
Benchmark	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench	8	655	119	648	121	654	119	8	554	141	556	141	554	141
401.bzip2	8	1122	68.8	1123	68.7	1124	68.7	8	1080	71.5	1080	71.5	1079	71.5
403.gcc	8	876	73.5	860	74.9	871	73.9	8	876	73.5	860	74.9	871	73.9
429.mcf	8	1353	53.9	1353	53.9	1355	53.9	8	1370	53.3	1371	53.2	1368	53.3
445.gobmk	8	721	116	726	116	719	117	8	663	127	665	126	667	126
456.hmmer	8	775	96.4	774	96.5	774	96.4	8	624	120	623	120	624	120
458.sjeng	8	892	108	894	108	893	108	8	801	121	798	121	801	121
462.libquantum	8	4659	35.6	4661	35.6	4660	35.6	8	4582	36.2	4580	36.2	4575	36.2
464.h264ref	8	943	188	943	188	944	188	8	897	197	897	197	897	197
471.omnetpp	8	1176	42.5	1177	42.5	1176	42.5	8	1166	42.9	1166	42.9	1164	42.9
473.astar	8	1035	54.3	1033	54.4	1033	54.3	8	984	57.0	982	57.2	982	57.2
483.xalancbmk	8	558	98.9	559	98.8	559	98.7	8	558	98.9	559	98.8	559	98.7

 'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
 '/usr/bin/taskset' used to bind processes to CPUs


All benchmarks compiled in 32-bit mode except 401.bzip2 and 456.hmmer,
for peak, are compiled in 64-bit mode

icc

icpc

-fast

403.gcc:

	icc
401.bzip2:	/opt/intel/cce/10.0.023/bin/icc -L/opt/intel/cce/10.0.023/lib -I/opt/intel/cce/10.0.023/include
456.hmmer:	/opt/intel/cce/10.0.023/bin/icc -L/opt/intel/cce/10.0.023/lib -I/opt/intel/cce/10.0.023/include

icpc

400.perlbench:	-prof-gen(pass 1) -prof-use(pass 2) -fast -ansi-alias -prefetch
401.bzip2:	-prof-gen(pass 1) -prof-use(pass 2) -fast
403.gcc:	basepeak = yes
429.mcf:	-fast -prefetch
445.gobmk:	-prof-gen(pass 1) -prof-use(pass 2) -xT -O2 -ipo -no-prec_div -ansi-alias
456.hmmer:	-prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -ansi-alias
458.sjeng:	-prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4
462.libquantum:	-prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 -Ob0 -prefetch -opt-streaming-stores always
464.h264ref:	Same as 456.hmmer

471.omnetpp:	-prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec_div -ansi-alias -Wl,-z,muldefs -L/opt/SmartHeap_8.1/lib -lsmartheap
473.astar:	Same as 471.omnetpp
483.xalancbmk:	basepeak = yes

403.gcc:
