| CPU2006 license: | 9006 | Test date: | Oct-2007 |
|---|---|---|---|
| Test sponsor: | NEC Corporation | Hardware Availability: | May-2007 |
| Tested by: | NEC Corporation | Software Availability: | Apr-2007 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon 5160 |
| CPU Characteristics: | 3.00 GHz, 4 MB L2, 1333 MHz bus |
| CPU MHz: | 3000 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 2 chips, 2 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 4 MB I+D on chip per chip |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 8 GB (4x2 GB PC2-5300F, 2 rank, CL5-5-5, ECC) |
| Disk Subsystem: | 1x36.3 GB SAS, 10000RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Windows Server 2003, Standard x64 Edition Service Pack1 |
| Compiler: | Intel C++ Compiler for EM64T version 9.1 Build 20070322, Package-ID W_CC_C_9.1.037 Intel Fortran Compiler for EM64T version 9.1 Build 20070322, Package-ID W_FC_C_9.1.037 Microsoft Visual Studio 2005 (libr. & linker) |
| Auto Parallel: | Yes |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 64-bit |
| Peak Pointers: | 64-bit |
| Other Software: | None |

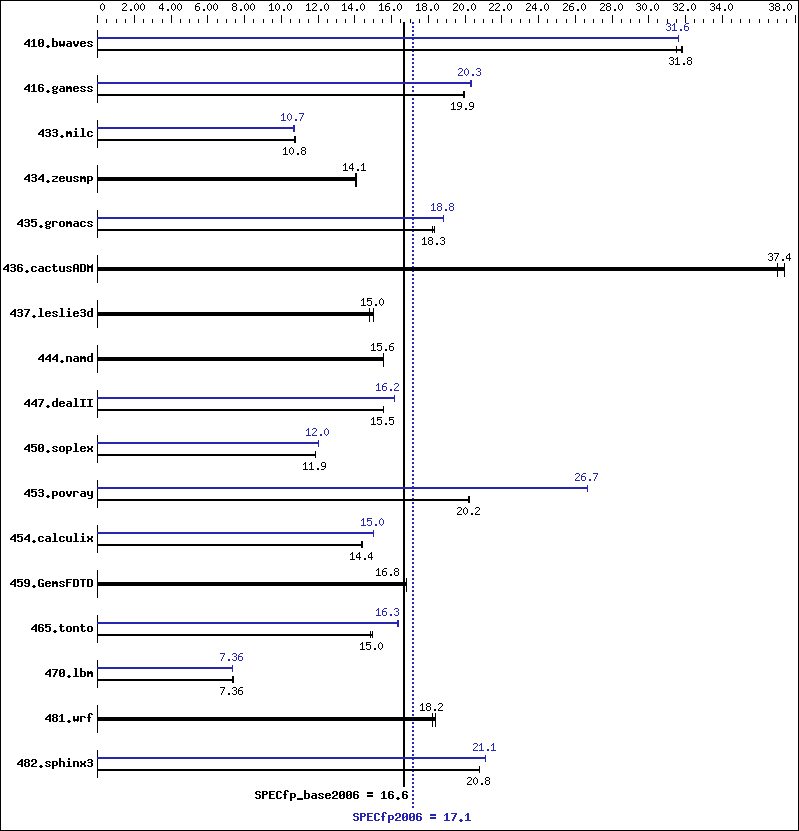

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 410.bwaves | 427 | 31.8 | 427 | 31.8 | 432 | 31.5 | 430 | 31.6 | 430 | 31.6 | 430 | 31.6 |
| 416.gamess | 982 | 19.9 | 982 | 19.9 | 984 | 19.9 | 964 | 20.3 | 964 | 20.3 | 964 | 20.3 |
| 433.milc | 853 | 10.8 | 853 | 10.8 | 859 | 10.7 | 860 | 10.7 | 859 | 10.7 | 860 | 10.7 |
| 434.zeusmp | 647 | 14.1 | 647 | 14.1 | 647 | 14.1 | 647 | 14.1 | 647 | 14.1 | 647 | 14.1 |
| 435.gromacs | 390 | 18.3 | 390 | 18.3 | 392 | 18.2 | 380 | 18.8 | 380 | 18.8 | 380 | 18.8 |
| 436.cactusADM | 320 | 37.4 | 320 | 37.4 | 323 | 37.0 | 320 | 37.4 | 320 | 37.4 | 323 | 37.0 |
| 437.leslie3d | 626 | 15.0 | 626 | 15.0 | 636 | 14.8 | 626 | 15.0 | 626 | 15.0 | 636 | 14.8 |
| 444.namd | 515 | 15.6 | 515 | 15.6 | 515 | 15.6 | 515 | 15.6 | 515 | 15.6 | 515 | 15.6 |
| 447.dealII | 736 | 15.6 | 736 | 15.5 | 736 | 15.5 | 708 | 16.2 | 708 | 16.2 | 708 | 16.2 |
| 450.soplex | 703 | 11.9 | 703 | 11.9 | 703 | 11.9 | 693 | 12.0 | 694 | 12.0 | 693 | 12.0 |
| 453.povray | 263 | 20.2 | 263 | 20.2 | 263 | 20.2 | 200 | 26.7 | 199 | 26.7 | 199 | 26.7 |
| 454.calculix | 574 | 14.4 | 573 | 14.4 | 573 | 14.4 | 549 | 15.0 | 549 | 15.0 | 549 | 15.0 |
| 459.GemsFDTD | 631 | 16.8 | 632 | 16.8 | 637 | 16.7 | 631 | 16.8 | 632 | 16.8 | 637 | 16.7 |
| 465.tonto | 657 | 15.0 | 657 | 15.0 | 662 | 14.9 | 602 | 16.3 | 601 | 16.4 | 602 | 16.3 |
| 470.lbm | 1868 | 7.36 | 1866 | 7.36 | 1866 | 7.36 | 1866 | 7.36 | 1866 | 7.36 | 1866 | 7.36 |
| 481.wrf | 608 | 18.4 | 612 | 18.2 | 613 | 18.2 | 608 | 18.4 | 612 | 18.2 | 613 | 18.2 |
| 482.sphinx3 | 938 | 20.8 | 938 | 20.8 | 938 | 20.8 | 924 | 21.1 | 924 | 21.1 | 924 | 21.1 |
Base Compiler Invocation
C benchmarks:
| icl -Qvc8 -Qc99 |
C++ benchmarks:
| icl -Qvc8 |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icl -Qvc8 -Qc99 ifort |
Base Portability Flags
| 410.bwaves: | -DSPEC_CPU_P64 |
| 416.gamess: | -DSPEC_CPU_P64 |
| 433.milc: | -D_Complex= -DSPEC_CPU_P64 |
| 434.zeusmp: | -DSPEC_CPU_P64 |
| 435.gromacs: | -D_Complex= -DSPEC_CPU_P64 |
| 436.cactusADM: | -D_Complex= -DSPEC_CPU_P64 -Qlowercase /assume:underscore |
| 437.leslie3d: | -DSPEC_CPU_P64 |
| 444.namd: | -DSPEC_CPU_P64 /TP |
| 447.dealII: | -D_Complex= -DSPEC_CPU_P64 -DBOOST_NO_INTRINSIC_WCHAR_T -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG |
| 450.soplex: | -DSPEC_CPU_P64 |
| 453.povray: | -DSPEC_CPU_P64 -DSPEC_CPU_WINDOWS_ICL |
| 454.calculix: | -D_Complex= -DSPEC_CPU_P64 -DSPEC_CPU_NOZMODIFIER -Qlowercase |
| 459.GemsFDTD: | -DSPEC_CPU_P64 |
| 465.tonto: | -DSPEC_CPU_P64 |
| 470.lbm: | -D_Complex= -DSPEC_CPU_P64 |
| 481.wrf: | -DSPEC_CPU_P64 -DSPEC_CPU_WINDOWS_ICL |
| 482.sphinx3: | -D_Complex= -DSPEC_CPU_P64 |
Base Optimization Flags
C benchmarks:
| -fast -Qparallel -F950000000 -link -FORCE:MULTIPLE |
C++ benchmarks:
| -fast -Qparallel -Qcxx-features -F950000000 -link -FORCE:MULTIPLE |
Fortran benchmarks:
| -fast -Qparallel -F950000000 -link -FORCE:MULTIPLE |
Benchmarks using both Fortran and C:
| -fast -Qparallel -F950000000 -link -FORCE:MULTIPLE |
Peak Compiler Invocation
C benchmarks:
| icl -Qvc8 -Qc99 |
C++ benchmarks:
| icl -Qvc8 |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icl -Qvc8 -Qc99 ifort |
Peak Portability Flags
Same as Base Portability Flags
Peak Optimization Flags
C benchmarks:
| -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -F950000000 -link -FORCE:MULTIPLE |
C++ benchmarks:
| 444.namd: | basepeak = yes |
| 447.dealII: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qcxx-features -F950000000 -link -FORCE:MULTIPLE |
| 450.soplex: | Same as 447.dealII |
| 453.povray: | Same as 447.dealII |
Fortran benchmarks:
| 410.bwaves: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qparallel -F950000000 -link -FORCE:MULTIPLE |
| 416.gamess: | -fast -F950000000 -link -FORCE:MULTIPLE |
| 434.zeusmp: | basepeak = yes |
| 437.leslie3d: | basepeak = yes |
| 459.GemsFDTD: | basepeak = yes |
| 465.tonto: | Same as 410.bwaves |
Benchmarks using both Fortran and C:
| 435.gromacs: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -F950000000 -link -FORCE:MULTIPLE |
| 436.cactusADM: | basepeak = yes |
| 454.calculix: | Same as 435.gromacs |
| 481.wrf: | basepeak = yes |
