| CPU2006 license: | 9006 | Test date: | Oct-2007 |
|---|---|---|---|
| Test sponsor: | NEC Corporation | Hardware Availability: | May-2007 |
| Tested by: | NEC Corporation | Software Availability: | Apr-2007 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon 5130 |
| CPU Characteristics: | 2.00 GHz, 4 MB L2, 1333 MHz bus |
| CPU MHz: | 2000 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 2 chips, 2 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 4 MB I+D on chip per chip |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 8 GB (8x1 GB PC2-5300F, 2 rank, CL5-5-5, ECC) |
| Disk Subsystem: | 1x36.3 GB SAS, 15000RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Windows Server 2003, Standard x64 Edition Service Pack1 |
| Compiler: | Intel C++ Compiler for EM64T version 9.1 Build 20070322, Package-ID W_CC_C_9.1.037 Intel Fortran Compiler for EM64T version 9.1 Build 20070322, Package-ID W_FC_C_9.1.037 Microsoft Visual Studio 2005 (libr. & linker) |
| Auto Parallel: | Yes |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 64-bit |
| Peak Pointers: | 64-bit |
| Other Software: | None |

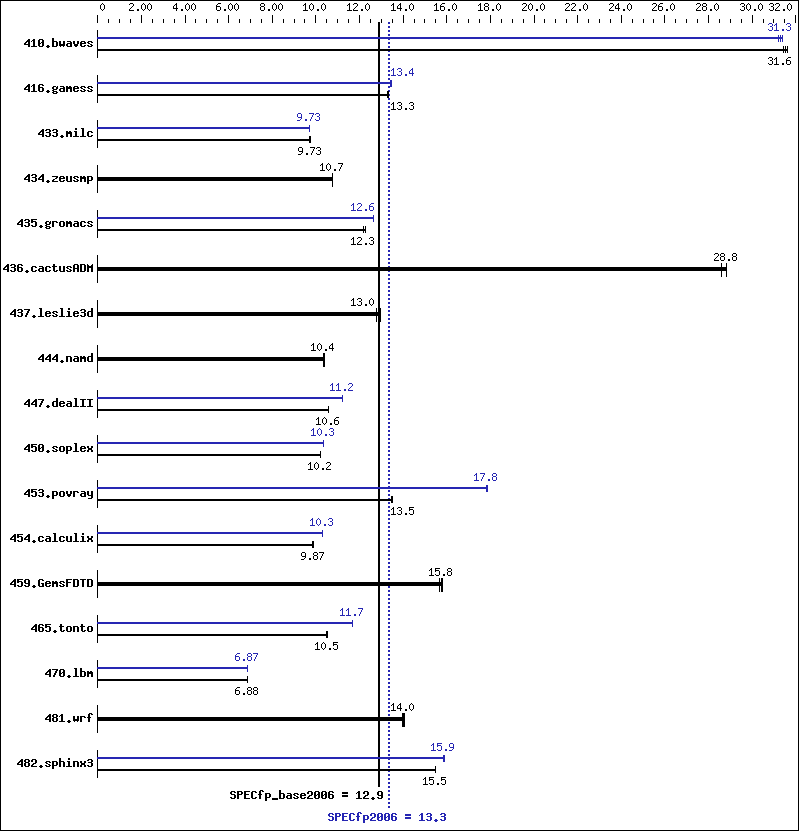

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 410.bwaves | 432 | 31.5 | 430 | 31.6 | 431 | 31.6 | 434 | 31.3 | 433 | 31.4 | 436 | 31.2 |
| 416.gamess | 1472 | 13.3 | 1470 | 13.3 | 1472 | 13.3 | 1457 | 13.4 | 1457 | 13.4 | 1456 | 13.4 |
| 433.milc | 943 | 9.73 | 940 | 9.76 | 944 | 9.73 | 944 | 9.73 | 944 | 9.73 | 944 | 9.73 |
| 434.zeusmp | 847 | 10.7 | 847 | 10.7 | 847 | 10.7 | 847 | 10.7 | 847 | 10.7 | 847 | 10.7 |
| 435.gromacs | 582 | 12.3 | 582 | 12.3 | 585 | 12.2 | 565 | 12.6 | 565 | 12.6 | 565 | 12.6 |
| 436.cactusADM | 415 | 28.8 | 414 | 28.8 | 418 | 28.6 | 415 | 28.8 | 414 | 28.8 | 418 | 28.6 |
| 437.leslie3d | 725 | 13.0 | 725 | 13.0 | 734 | 12.8 | 725 | 13.0 | 725 | 13.0 | 734 | 12.8 |
| 444.namd | 774 | 10.4 | 774 | 10.4 | 771 | 10.4 | 774 | 10.4 | 774 | 10.4 | 771 | 10.4 |
| 447.dealII | 1082 | 10.6 | 1082 | 10.6 | 1081 | 10.6 | 1020 | 11.2 | 1021 | 11.2 | 1020 | 11.2 |
| 450.soplex | 817 | 10.2 | 818 | 10.2 | 817 | 10.2 | 806 | 10.3 | 806 | 10.3 | 806 | 10.3 |
| 453.povray | 395 | 13.5 | 394 | 13.5 | 394 | 13.5 | 298 | 17.8 | 298 | 17.8 | 298 | 17.9 |
| 454.calculix | 836 | 9.87 | 838 | 9.85 | 836 | 9.87 | 802 | 10.3 | 802 | 10.3 | 802 | 10.3 |
| 459.GemsFDTD | 672 | 15.8 | 673 | 15.8 | 677 | 15.7 | 672 | 15.8 | 673 | 15.8 | 677 | 15.7 |
| 465.tonto | 934 | 10.5 | 933 | 10.5 | 937 | 10.5 | 842 | 11.7 | 841 | 11.7 | 842 | 11.7 |
| 470.lbm | 1998 | 6.88 | 2002 | 6.86 | 1998 | 6.88 | 2000 | 6.87 | 2000 | 6.87 | 2000 | 6.87 |
| 481.wrf | 796 | 14.0 | 795 | 14.1 | 800 | 14.0 | 796 | 14.0 | 795 | 14.1 | 800 | 14.0 |
| 482.sphinx3 | 1259 | 15.5 | 1260 | 15.5 | 1257 | 15.5 | 1228 | 15.9 | 1228 | 15.9 | 1227 | 15.9 |
Base Compiler Invocation
C benchmarks:
| icl -Qvc8 -Qc99 |
C++ benchmarks:
| icl -Qvc8 |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icl -Qvc8 -Qc99 ifort |
Base Portability Flags
| 410.bwaves: | -DSPEC_CPU_P64 |
| 416.gamess: | -DSPEC_CPU_P64 |
| 433.milc: | -D_Complex= -DSPEC_CPU_P64 |
| 434.zeusmp: | -DSPEC_CPU_P64 |
| 435.gromacs: | -D_Complex= -DSPEC_CPU_P64 |
| 436.cactusADM: | -D_Complex= -DSPEC_CPU_P64 -Qlowercase /assume:underscore |
| 437.leslie3d: | -DSPEC_CPU_P64 |
| 444.namd: | -DSPEC_CPU_P64 /TP |
| 447.dealII: | -D_Complex= -DSPEC_CPU_P64 -DBOOST_NO_INTRINSIC_WCHAR_T -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG |
| 450.soplex: | -DSPEC_CPU_P64 |
| 453.povray: | -DSPEC_CPU_P64 -DSPEC_CPU_WINDOWS_ICL |
| 454.calculix: | -D_Complex= -DSPEC_CPU_P64 -DSPEC_CPU_NOZMODIFIER -Qlowercase |
| 459.GemsFDTD: | -DSPEC_CPU_P64 |
| 465.tonto: | -DSPEC_CPU_P64 |
| 470.lbm: | -D_Complex= -DSPEC_CPU_P64 |
| 481.wrf: | -DSPEC_CPU_P64 -DSPEC_CPU_WINDOWS_ICL |
| 482.sphinx3: | -D_Complex= -DSPEC_CPU_P64 |
Base Optimization Flags
C benchmarks:
| -fast -Qparallel -F950000000 -link -FORCE:MULTIPLE |
C++ benchmarks:
| -fast -Qparallel -Qcxx-features -F950000000 -link -FORCE:MULTIPLE |
Fortran benchmarks:
| -fast -Qparallel -F950000000 -link -FORCE:MULTIPLE |
Benchmarks using both Fortran and C:
| -fast -Qparallel -F950000000 -link -FORCE:MULTIPLE |
Peak Compiler Invocation
C benchmarks:
| icl -Qvc8 -Qc99 |
C++ benchmarks:
| icl -Qvc8 |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icl -Qvc8 -Qc99 ifort |
Peak Portability Flags
Same as Base Portability Flags
Peak Optimization Flags
C benchmarks:
| -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -F950000000 -link -FORCE:MULTIPLE |
C++ benchmarks:
| 444.namd: | basepeak = yes |
| 447.dealII: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qcxx-features -F950000000 -link -FORCE:MULTIPLE |
| 450.soplex: | Same as 447.dealII |
| 453.povray: | Same as 447.dealII |
Fortran benchmarks:
| 410.bwaves: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qparallel -F950000000 -link -FORCE:MULTIPLE |
| 416.gamess: | -fast -F950000000 -link -FORCE:MULTIPLE |
| 434.zeusmp: | basepeak = yes |
| 437.leslie3d: | basepeak = yes |
| 459.GemsFDTD: | basepeak = yes |
| 465.tonto: | Same as 410.bwaves |
Benchmarks using both Fortran and C:
| 435.gromacs: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -F950000000 -link -FORCE:MULTIPLE |
| 436.cactusADM: | basepeak = yes |
| 454.calculix: | Same as 435.gromacs |
| 481.wrf: | basepeak = yes |
