| CPU2006 license: | 9001 | Test date: | Nov-2007 |
|---|---|---|---|
| Test sponsor: | Itautec | Hardware Availability: | Dec-2007 |
| Tested by: | Itautec | Software Availability: | Aug-2007 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5410 |
| CPU Characteristics: | |
| CPU MHz: | 2330 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 1 chip, 4 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 12 MB I+D on chip per chip, 6 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 8 GB (8 * 1GB DDR2 5300F, 2 rank, CL5 ECC) |
| Disk Subsystem: | SATA, 300GB, 7200rpm |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 10 (x86_64), Kernel 2.6.16.21-0.8-smp |
| Compiler: | Intel C++ Compiler for Linux32 version 10.0 Build 20070809 Package ID: l_cc_p_10.0.026 |
| Auto Parallel: | No |
| File System: | ReiserFS |
| System State: | Multi-user, run level 3 |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Binutils 2.16.91.0.7 |

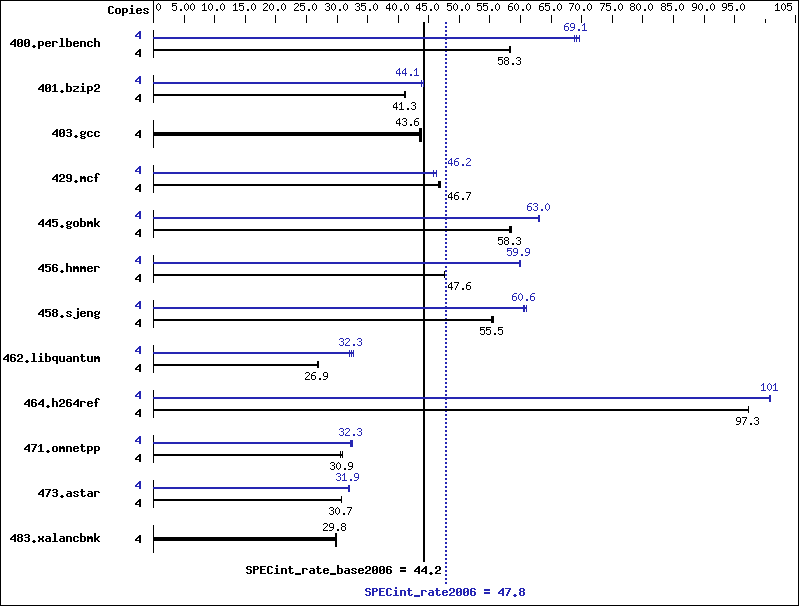

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 4 | 670 | 58.3 | 670 | 58.3 | 672 | 58.1 | 4 | 566 | 69.1 | 568 | 68.8 | 561 | 69.7 |
| 401.bzip2 | 4 | 935 | 41.3 | 939 | 41.1 | 935 | 41.3 | 4 | 875 | 44.1 | 881 | 43.8 | 873 | 44.2 |
| 403.gcc | 4 | 742 | 43.4 | 736 | 43.7 | 738 | 43.6 | 4 | 742 | 43.4 | 736 | 43.7 | 738 | 43.6 |
| 429.mcf | 4 | 781 | 46.7 | 782 | 46.6 | 779 | 46.8 | 4 | 789 | 46.2 | 788 | 46.3 | 796 | 45.8 |
| 445.gobmk | 4 | 718 | 58.5 | 719 | 58.3 | 721 | 58.2 | 4 | 666 | 63.0 | 665 | 63.1 | 667 | 62.9 |
| 456.hmmer | 4 | 784 | 47.6 | 783 | 47.6 | 784 | 47.6 | 4 | 624 | 59.8 | 622 | 60.0 | 623 | 59.9 |
| 458.sjeng | 4 | 875 | 55.3 | 871 | 55.6 | 872 | 55.5 | 4 | 794 | 61.0 | 798 | 60.6 | 800 | 60.5 |
| 462.libquantum | 4 | 3080 | 26.9 | 3085 | 26.9 | 3083 | 26.9 | 4 | 2537 | 32.7 | 2566 | 32.3 | 2587 | 32.0 |
| 464.h264ref | 4 | 909 | 97.3 | 910 | 97.3 | 910 | 97.3 | 4 | 878 | 101 | 878 | 101 | 878 | 101 |
| 471.omnetpp | 4 | 809 | 30.9 | 808 | 30.9 | 819 | 30.5 | 4 | 767 | 32.6 | 775 | 32.2 | 773 | 32.3 |
| 473.astar | 4 | 916 | 30.7 | 916 | 30.7 | 915 | 30.7 | 4 | 876 | 32.0 | 882 | 31.8 | 882 | 31.9 |
| 483.xalancbmk | 4 | 924 | 29.9 | 927 | 29.8 | 925 | 29.8 | 4 | 924 | 29.9 | 927 | 29.8 | 925 | 29.8 |
General Notes
Bios settings: Hardware Prefetcher: Disabled Adjacent Sector Prefetch: Disabled ulimit -s unlimited used to set stack size to unlimited taskset command used to assign copies to cores All benchmarks compiled in 32-bit mode except 401.bzip2 and 456.hmmer, for peak, are compiled in 64-bit mode
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -fast |
C++ benchmarks:
| -xT -ipo -O3 -no-prec-div -Wl,-z,muldefs |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc | |
| 401.bzip2: | /home/richard/intel/cce/10.0.026/bin/icc |
| 456.hmmer: | /home/richard/intel/cce/10.0.026/bin/icc |
C++ benchmarks:
| icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -prof-gen(pass 1) -prof-use(pass 2) -fast -ansi-alias -prefetch |
| 401.bzip2: | -L/home/richard/intel/cce/10.0.026/lib -I/home/richard/intel/cce/10.0.026/include -prof-gen(pass 1) -prof-use(pass 2) -fast |
| 403.gcc: | basepeak = yes |
| 429.mcf: | -fast -prefetch |
| 445.gobmk: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O2 -ipo -no-prec_div -ansi-alias |
| 456.hmmer: | -L/home/richard/intel/cce/10.0.026/lib -I/home/richard/intel/cce/10.0.026/include -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -ansi-alias |
| 458.sjeng: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 |
| 462.libquantum: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 -Ob0 -prefetch -opt-streaming-stores always |
| 464.h264ref: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec_div -ansi-alias -Wl,-z,muldefs |
| 473.astar: | Same as 471.omnetpp |
| 483.xalancbmk: | basepeak = yes |
