SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

SGI

SGI Altix 4700 Bandwidth System (Itanium
Processor 9150M 1.66GHz/24M)

CPU2006 license: 4 Test date: Oct-2007
Test sponsor: SGI Hardware Availability: Nov-2007
Tested by: SGI Software Availability: Nov-2007

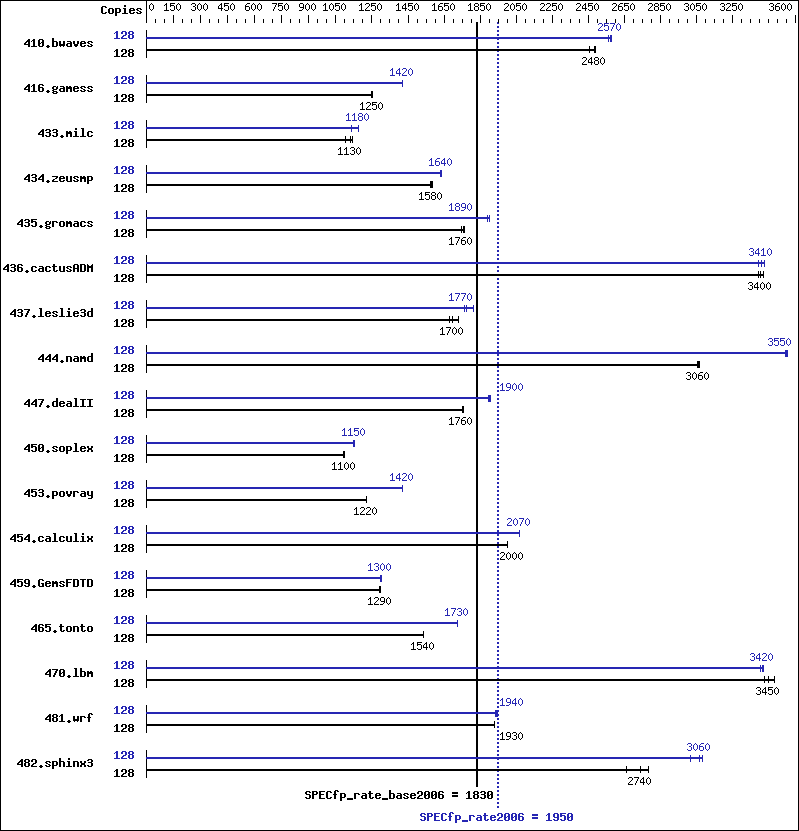

Benchmark results graph
Hardware
CPU Name: Dual-Core Intel Itanium 9150M
CPU Characteristics: 667MHz FSB
CPU MHz: 1669
FPU: Integrated
CPU(s) enabled: 128 cores, 64 chips, 2 cores/chip
CPU(s) orderable: 8 to 512 blades with 1 chip per blade
Primary Cache: 16 KB I + 16 KB D on chip per core
Secondary Cache: 1 MB I + 256 KB D on chip per core
L3 Cache: 12 MB I+D on chip per core
Other Cache: None
Memory: 512 GB (8*1GB DDR2-400 DIMMS per 2 core module)
Disk Subsystem: 2.4 TB RAID 4+1
32 x 73 GB SCSI (Seagate Cheetah 15k rpm)
Other Hardware: None
Software
Operating System: SUSE Linux Enterprise Server 10 (ia64) SP1,
Kernel 2.6.16.53-0.16-default
Compiler: Intel Fortran Compiler for Linux 10.1 (Build
20071005)
Intel C++ Compiler for Linux 10.1 (Build
20071005)
Auto Parallel: No
File System: xfs
System State: Multi-user
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: SGI ProPack 5 Service Pack 3

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 128 708 2460 698 2490 700 2480 128 675 2580 680 2560 676 2570
416.gamess 128 2003 1250 2010 1250 2002 1250 128 1766 1420 1767 1420 1766 1420
433.milc 128 1065 1100 1040 1130 1027 1140 128 1034 1140 999 1180 997 1180
434.zeusmp 128 736 1580 739 1580 736 1580 128 714 1630 712 1640 711 1640
435.gromacs 128 518 1760 523 1750 520 1760 128 481 1900 484 1890 484 1890
436.cactusADM 128 450 3400 447 3420 451 3390 128 448 3410 446 3430 451 3390
437.leslie3d 128 717 1680 696 1730 709 1700 128 683 1760 664 1810 679 1770
444.namd 128 336 3050 335 3060 335 3070 128 289 3560 290 3550 289 3550
447.dealII 128 834 1760 832 1760 836 1750 128 773 1890 767 1910 770 1900
450.soplex 128 973 1100 973 1100 978 1090 128 928 1150 927 1150 926 1150
453.povray 128 559 1220 559 1220 559 1220 128 480 1420 480 1420 480 1420
454.calculix 128 527 2000 527 2000 528 2000 128 510 2070 511 2070 511 2070
459.GemsFDTD 128 1046 1300 1049 1290 1052 1290 128 1046 1300 1047 1300 1042 1300
465.tonto 128 821 1530 819 1540 819 1540 128 731 1720 730 1730 730 1730
470.lbm 128 505 3480 510 3450 514 3420 128 515 3420 514 3420 517 3400
481.wrf 128 742 1930 742 1930 741 1930 128 737 1940 738 1940 734 1950
482.sphinx3 128 938 2660 910 2740 896 2790 128 826 3020 814 3060 810 3080

General Notes


 Processes were bound to CPUs using dplace.
 limit stacksize unlimited

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icc   ifort

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LINUX   -DSPEC_CPU_LINUX64_IPF
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -fast   -IPF-fp-relaxed   -opt-prefetch-next-iteration   -ansi-alias

C++ benchmarks:

 -fast   -IPF-fp-relaxed   -opt-prefetch-next-iteration   -ansi-alias

Fortran benchmarks:

 -fast   -IPF-fp-relaxed   -opt-prefetch-next-iteration

Benchmarks using both Fortran and C:

 -fast   -IPF-fp-relaxed   -opt-prefetch-next-iteration   -ansi-alias

Peak Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icc   ifort

Peak Portability Flags

Same as Base Portability Flags

Peak Optimization Flags

C benchmarks:

433.milc:  -fast   -IPF-fp-relaxed   -opt-prefetch-next-iteration   -fno-alias   -ansi-alias
470.lbm:  -fast   -IPF-fp-relaxed   -opt-prefetch-next-iteration   -ansi-alias
482.sphinx3:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -IPF-fp-relaxed   -opt-prefetch-next-iteration   -fno-alias   -no-opt-prefetch-initial-values   -ansi-alias

C++ benchmarks:

444.namd:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -IPF-fp-relaxed   -opt-prefetch-next-iteration   -no-prefetch   -auto-ilp32   -fno-alias   -ansi-alias
447.dealII:  -fast   -IPF-fp-relaxed   -opt-prefetch-next-iteration   -inline-factor=150   -no-alias-args   -no-opt-loadpair   -ansi-alias
450.soplex:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -IPF-fp-relaxed   -opt-prefetch-next-iteration   -auto-ilp32   -no-alias-args   -ansi-alias
453.povray:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -IPF-fp-relaxed   -opt-prefetch-next-iteration   -inline-factor=150   -ansi-alias

Fortran benchmarks:

410.bwaves:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -IPF-fp-relaxed   -opt-prefetch-next-iteration
416.gamess:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -IPF-fp-relaxed   -opt-prefetch-next-iteration   -no-prefetch
434.zeusmp:  Same as 410.bwaves
437.leslie3d:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -IPF-fp-relaxed   -opt-prefetch-next-iteration   -no-opt-loadpair
459.GemsFDTD:  -fast   -IPF-fp-relaxed   -opt-prefetch-next-iteration
465.tonto:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -IPF-fp-relaxed   -opt-prefetch-next-iteration   -inline-factor=150   -no-prefetch

Benchmarks using both Fortran and C:

435.gromacs:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -IPF-fp-relaxed   -opt-prefetch-next-iteration   -no-prefetch   -fno-alias   -ansi-alias
436.cactusADM:  -fast   -IPF-fp-relaxed   -opt-prefetch-next-iteration   -ansi-alias
454.calculix:  -fast   -IPF-fp-relaxed   -opt-prefetch-next-iteration   -inline-factor=150   -no-opt-prefetch-initial-values   -ansi-alias
481.wrf:  -fast   -IPF-fp-relaxed   -opt-prefetch-next-iteration   -no-opt-loadpair   -ansi-alias

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic91-ipf.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Intel-ic91-ipf.xml.

SPEC and SPECfp are registered trademarks of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2006-2014 Standard Performance Evaluation Corporation
Tested with SPEC CPU2006 v1.0.
Report generated on Tue Jul 22 14:10:39 2014 by SPEC CPU2006 HTML formatter v6932.
Originally published on 14 November 2007.
