SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Hewlett-Packard Company

ProLiant DL380 G5
(3.16 GHz, Intel Xeon processor X5460)

CPU2006 license: 3 Test date: Oct-2007
Test sponsor: Hewlett-Packard Company Hardware Availability: Nov-2007
Tested by: Hewlett-Packard Company Software Availability: Nov-2007

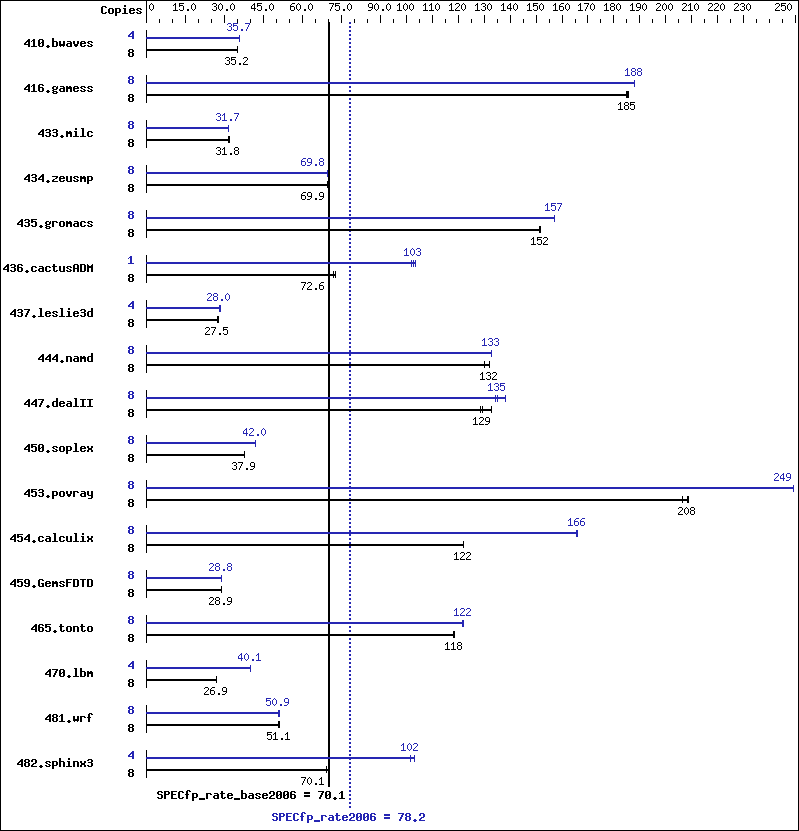

Benchmark results graph
Hardware
CPU Name: Intel Xeon X5460
CPU Characteristics: 3.16GHz, 2x6 MB L2 shared, 1333 MHz system bus
CPU MHz: 3166
FPU: Integrated
CPU(s) enabled: 8 cores, 2 chips, 4 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 12 MB I+D on chip per chip, 6 MB shared / 2 cores
L3 Cache: None
Other Cache: None
Memory: 16 GB (8x2 GB PC2-5300F CL5)
Disk Subsystem: 1x72 GHz 10 K SAS
Other Hardware: None
Software
Operating System: SuSE Linux Enterprise Server 10 (x86_64) SP1
kernel 2.6.16.46-0.12-smp
Compiler: Intel C++ and Fortran Compiler for Linux32 and
Linux64 version 10.1
Build 20070725
Auto Parallel: Yes
File System: ext2
System State: Multi-user run level 3
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: binutils-2.17.50

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 8 3093 35.2 3087 35.2 3095 35.1 4 1521 35.7 1523 35.7 1522 35.7
416.gamess 8 847 185   846 185   844 186   8 834 188   834 188   833 188
433.milc 8 2319 31.7 2312 31.8 2304 31.9 8 2314 31.7 2319 31.7 2316 31.7
434.zeusmp 8 1044 69.8 1040 70.0 1041 69.9 8 1043 69.8 1045 69.7 1043 69.8
435.gromacs 8 377 152   376 152   377 152   8 364 157   364 157   364 157
436.cactusADM 8 1317 72.6 1315 72.7 1326 72.1 1 117 102   116 103   115 104
437.leslie3d 8 2740 27.4 2732 27.5 2725 27.6 4 1343 28.0 1328 28.3 1343 28.0
444.namd 8 486 132   486 132   492 130   8 483 133   483 133   483 133
447.dealII 8 689 133   707 129   712 128   8 678 135   662 138   681 134
450.soplex 8 1759 37.9 1762 37.9 1762 37.9 8 1587 42.0 1588 42.0 1590 42.0
453.povray 8 204 209   206 207   204 208   8 171 249   171 249   171 249
454.calculix 8 540 122   541 122   540 122   8 398 166   398 166   398 166
459.GemsFDTD 8 2946 28.8 2933 28.9 2941 28.9 8 2943 28.8 2948 28.8 2947 28.8
465.tonto 8 665 118   664 119   665 118   8 645 122   645 122   646 122
470.lbm 8 4091 26.9 4091 26.9 4089 26.9 4 1368 40.2 1370 40.1 1369 40.1
481.wrf 8 1747 51.1 1750 51.1 1758 50.8 8 1755 50.9 1740 51.4 1757 50.8
482.sphinx3 8 2215 70.4 2226 70.1 2249 69.3 4 767 102   757 103   766 102

Operating System Notes

 'ulimit -s unlimited' was used to set the stacksize to unlimited
 '/usr/bin/taskset' used to bind processes to CPUs
 OMP_NUM_THREADS set to number of cores
 KMP_AFFINITY set to physical,0
 KMP_STACKSIZE set to 200M

Platform Notes

BIOS configuration:
  Power Regulator set to Static High Performance Mode
  Adjacent Sector Prefetch Disabled
  Hardware Prefetcher Disabled

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icc   ifort

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -fast

C++ benchmarks:

 -fast

Fortran benchmarks:

 -fast

Benchmarks using both Fortran and C:

 -fast

Peak Compiler Invocation

C benchmarks (except as noted below):

 /home/cmplr/usr3/alrahate/compilers/ic10.1mainline/20070725/Linux32/bin/icc   -L/home/cmplr/usr3/alrahate/compilers/ic10.1mainline/20070725/Linux32/lib   -I/home/cmplr/usr3/alrahate/compilers/ic10.1mainline/20070725/Linux32/include
433.milc:  icc

C++ benchmarks (except as noted below):

 icpc
450.soplex:  /home/cmplr/usr3/alrahate/compilers/ic10.1mainline/20070725/Linux32/bin/icpc   -L/home/cmplr/usr3/alrahate/compilers/ic10.1mainline/20070725/Linux32/lib   -I/home/cmplr/usr3/alrahate/compilers/ic10.1mainline/20070725/Linux32/include

Fortran benchmarks (except as noted below):

 ifort
437.leslie3d:  /home/cmplr/usr3/alrahate/compilers/ic10.1mainline/20070725/Linux32/bin/ifort   -L/home/cmplr/usr3/alrahate/compilers/ic10.1mainline/20070725/Linux32/lib   -I/home/cmplr/usr3/alrahate/compilers/ic10.1mainline/20070725/Linux32/include

Benchmarks using both Fortran and C:

 icc   ifort

Peak Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

433.milc:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -fno-alias   -auto-ilp32
470.lbm:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll2   -scalar-rep-   -prefetch   -opt-malloc-options=3
482.sphinx3:  -fast   -unroll2

C++ benchmarks:

444.namd:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -fno-alias   -auto-ilp32
447.dealII:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll2   -ansi-alias   -scalar-rep-
450.soplex:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -opt-malloc-options=3
453.povray:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll4   -ansi-alias

Fortran benchmarks:

410.bwaves:  -fast   -prefetch
416.gamess:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll2   -Ob0   -ansi-alias   -scalar-rep-
434.zeusmp:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast
437.leslie3d:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -prefetch   -opt-malloc-options=3
459.GemsFDTD:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll2   -Ob0   -prefetch
465.tonto:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll4   -auto

Benchmarks using both Fortran and C:

435.gromacs:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -prefetch   -auto-ilp32
436.cactusADM:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll2   -prefetch   -parallel   -auto-ilp32
454.calculix:  -fast   -unroll-aggressive   -auto-ilp32
481.wrf:  -fast   -auto-ilp32

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/HP-Intel-ic10.1-linux-fp-flags.20090714.01.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/HP-Intel-ic10.1-linux-fp-flags.20090714.01.xml.

SPEC and SPECfp are registered trademarks of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2006-2014 Standard Performance Evaluation Corporation
Tested with SPEC CPU2006 v1.0.
Report generated on Tue Jul 22 14:39:46 2014 by SPEC CPU2006 HTML formatter v6932.
Originally published on 13 November 2007.
