| CPU2006 license: | 55 | Test date: | Aug-2007 |
|---|---|---|---|
| Test sponsor: | Dell Inc. | Hardware Availability: | Dec-2006 |
| Tested by: | Dell Inc. | Software Availability: | Jun-2007 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5310 |
| CPU Characteristics: | 1066 MHz Bus Speed |
| CPU MHz: | 1600 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 1 chip, 4 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 8 MB I+D on chip per chip, 4 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 8 GB (8 x 1 GB 667MHz CL5 DDR2 FB-DIMM SDRAM) |
| Disk Subsystem: | 4 x 146 GB SAS, 15000RPM |
| Other Hardware: | 1 X Gigabit Ethernet card Dual Port Integrated |
| Software | |
|---|---|
| Operating System: | Microsoft Windows Server 2003 Enterprise x64 Edition |
| Compiler: | Intel C++ Compiler for IA32 version 10.0 Build 20070426 Package ID: W_CC_P_10.0.025 Microsoft Visual Studio .Net 2003 (for libraries) |
| Auto Parallel: | No |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32-bit |
| Other Software: | MicroQuill SmartHeap Library Version 8.0 |

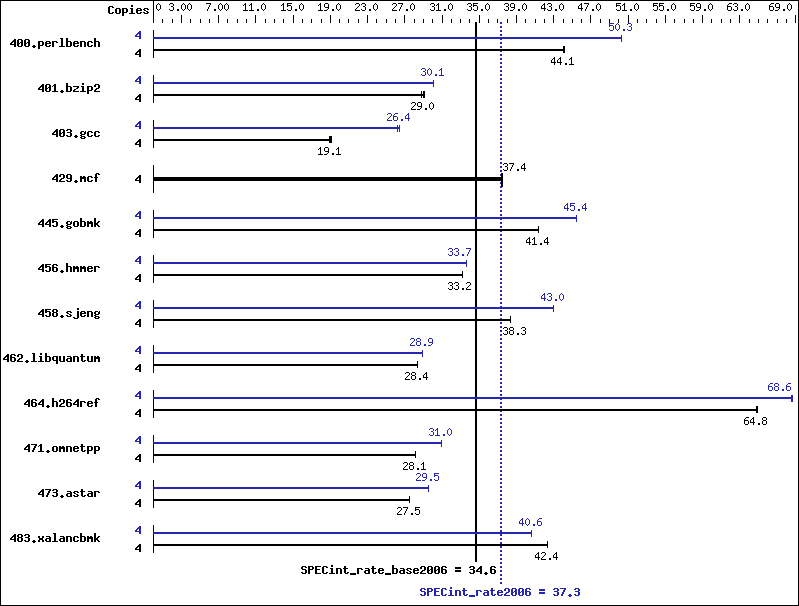

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 4 | 886 | 44.1 | 888 | 44.0 | 886 | 44.1 | 4 | 778 | 50.2 | 778 | 50.3 | 778 | 50.3 |
| 401.bzip2 | 4 | 1332 | 29.0 | 1325 | 29.1 | 1340 | 28.8 | 4 | 1285 | 30.0 | 1282 | 30.1 | 1282 | 30.1 |
| 403.gcc | 4 | 1700 | 18.9 | 1686 | 19.1 | 1689 | 19.1 | 4 | 1228 | 26.2 | 1217 | 26.5 | 1220 | 26.4 |
| 429.mcf | 4 | 973 | 37.5 | 976 | 37.4 | 976 | 37.4 | 4 | 973 | 37.5 | 976 | 37.4 | 976 | 37.4 |
| 445.gobmk | 4 | 1013 | 41.4 | 1015 | 41.3 | 1015 | 41.4 | 4 | 923 | 45.5 | 924 | 45.4 | 924 | 45.4 |
| 456.hmmer | 4 | 1123 | 33.2 | 1123 | 33.2 | 1123 | 33.2 | 4 | 1108 | 33.7 | 1108 | 33.7 | 1108 | 33.7 |
| 458.sjeng | 4 | 1262 | 38.3 | 1263 | 38.3 | 1263 | 38.3 | 4 | 1126 | 43.0 | 1127 | 43.0 | 1127 | 43.0 |
| 462.libquantum | 4 | 2920 | 28.4 | 2920 | 28.4 | 2925 | 28.3 | 4 | 2870 | 28.9 | 2869 | 28.9 | 2870 | 28.9 |
| 464.h264ref | 4 | 1365 | 64.8 | 1366 | 64.8 | 1366 | 64.8 | 4 | 1291 | 68.6 | 1290 | 68.6 | 1289 | 68.7 |
| 471.omnetpp | 4 | 888 | 28.1 | 888 | 28.2 | 889 | 28.1 | 4 | 807 | 31.0 | 807 | 31.0 | 807 | 31.0 |
| 473.astar | 4 | 1020 | 27.5 | 1020 | 27.5 | 1019 | 27.6 | 4 | 951 | 29.5 | 952 | 29.5 | 951 | 29.5 |
| 483.xalancbmk | 4 | 652 | 42.3 | 651 | 42.4 | 652 | 42.4 | 4 | 679 | 40.6 | 680 | 40.6 | 680 | 40.6 |
General Notes
"start /b /wait /affinity" used to bind processes to cores
Base Portability Flags
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 464.h264ref: | -DSPEC_CPU_NO_INTTYPES -DWIN32 |
Base Optimization Flags
C benchmarks:
| -fast /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
C++ benchmarks:
| -fast -Qcxx_features /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
Peak Portability Flags
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 464.h264ref: | -DSPEC_CPU_NO_INTTYPES -DWIN32 |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qansi-alias -Qprefetch /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
| 401.bzip2: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
| 403.gcc: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast /F512000000 -link /FORCE:MULTIPLE |
| 429.mcf: | basepeak = yes |
| 445.gobmk: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -QxT -O2 -Qipo -Qprec_div- -Qansi-alias /F512000000 -link /FORCE:MULTIPLE |
| 456.hmmer: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qunroll2 -Qansi-alias /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
| 458.sjeng: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qunroll4 /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
| 462.libquantum: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qunroll4 -Ob0 -Qprefetch -Qopt-streaming-stores:always /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
| 464.h264ref: | Same as 456.hmmer |
C++ benchmarks:
| -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qansi-alias -Qcxx_features /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
