| CPU2006 license: | 9006 | Test date: | Oct-2007 |
|---|---|---|---|
| Test sponsor: | NEC Corporation | Hardware Availability: | Jan-2007 |
| Tested by: | NEC Corporation | Software Availability: | Apr-2007 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5345 |
| CPU Characteristics: | 2.33 GHz, 2x4 MB L2 shared, 1333 MHz bus |
| CPU MHz: | 2333 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 8 MB I+D on chip per chip, 4 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 8 GB (8x1 GB PC2-5300F, 2 rank, CL5-5-5, ECC) |
| Disk Subsystem: | 1x36.3 GB SAS, 15000RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Windows Server 2003, Standard x64 Edition Service Pack1 |
| Compiler: | Intel C++ Compiler for EM64T version 9.1 Build 20070322, Package-ID W_CC_C_9.1.037 Intel Fortran Compiler for EM64T version 9.1 Build 20070322, Package-ID W_FC_C_9.1.037 Microsoft Visual Studio 2005 (libr. & linker) |
| Auto Parallel: | Yes |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 64-bit |
| Peak Pointers: | 64-bit |
| Other Software: | None |

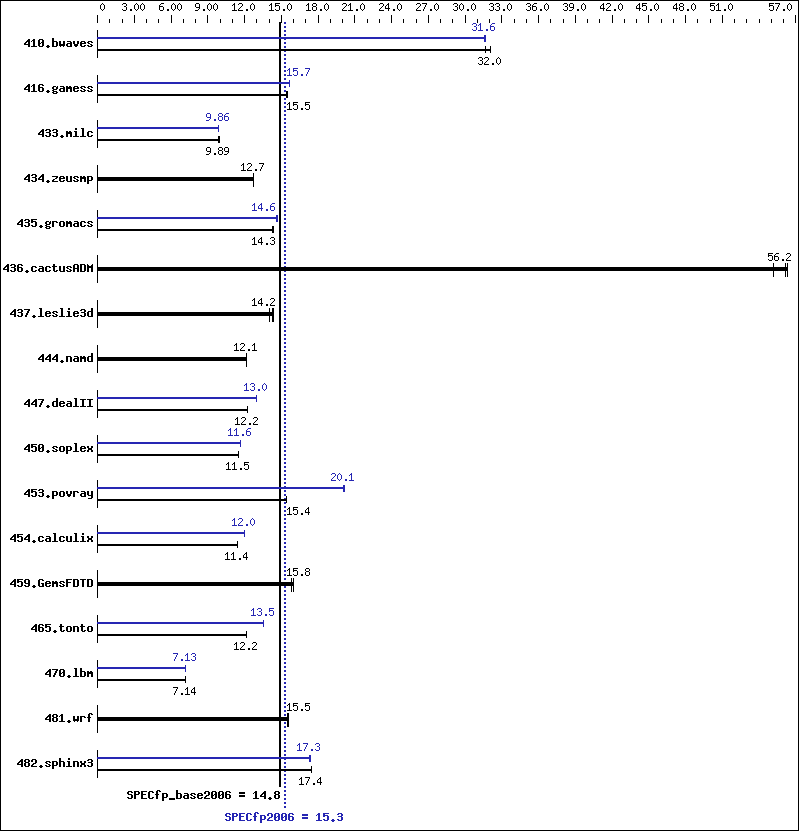

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 410.bwaves | 424 | 32.0 | 424 | 32.1 | 429 | 31.7 | 431 | 31.5 | 429 | 31.7 | 430 | 31.6 |
| 416.gamess | 1266 | 15.5 | 1267 | 15.5 | 1268 | 15.4 | 1248 | 15.7 | 1248 | 15.7 | 1249 | 15.7 |
| 433.milc | 924 | 9.93 | 929 | 9.89 | 929 | 9.88 | 932 | 9.85 | 931 | 9.86 | 930 | 9.87 |
| 434.zeusmp | 717 | 12.7 | 717 | 12.7 | 717 | 12.7 | 717 | 12.7 | 717 | 12.7 | 717 | 12.7 |
| 435.gromacs | 499 | 14.3 | 499 | 14.3 | 502 | 14.2 | 490 | 14.6 | 488 | 14.6 | 488 | 14.6 |
| 436.cactusADM | 212 | 56.3 | 213 | 56.2 | 217 | 55.2 | 212 | 56.3 | 213 | 56.2 | 217 | 55.2 |
| 437.leslie3d | 655 | 14.4 | 660 | 14.2 | 669 | 14.1 | 655 | 14.4 | 660 | 14.2 | 669 | 14.1 |
| 444.namd | 661 | 12.1 | 661 | 12.1 | 661 | 12.1 | 661 | 12.1 | 661 | 12.1 | 661 | 12.1 |
| 447.dealII | 935 | 12.2 | 935 | 12.2 | 935 | 12.2 | 883 | 13.0 | 883 | 13.0 | 883 | 13.0 |
| 450.soplex | 725 | 11.5 | 725 | 11.5 | 725 | 11.5 | 716 | 11.6 | 716 | 11.6 | 716 | 11.6 |
| 453.povray | 346 | 15.4 | 346 | 15.4 | 346 | 15.4 | 266 | 20.0 | 265 | 20.1 | 265 | 20.1 |
| 454.calculix | 722 | 11.4 | 722 | 11.4 | 722 | 11.4 | 690 | 12.0 | 690 | 12.0 | 690 | 12.0 |
| 459.GemsFDTD | 664 | 16.0 | 670 | 15.8 | 670 | 15.8 | 664 | 16.0 | 670 | 15.8 | 670 | 15.8 |
| 465.tonto | 810 | 12.2 | 812 | 12.1 | 810 | 12.2 | 727 | 13.5 | 727 | 13.5 | 727 | 13.5 |
| 470.lbm | 1924 | 7.14 | 1924 | 7.14 | 1925 | 7.14 | 1928 | 7.13 | 1928 | 7.13 | 1928 | 7.13 |
| 481.wrf | 716 | 15.6 | 721 | 15.5 | 722 | 15.5 | 716 | 15.6 | 721 | 15.5 | 722 | 15.5 |
| 482.sphinx3 | 1118 | 17.4 | 1118 | 17.4 | 1119 | 17.4 | 1125 | 17.3 | 1125 | 17.3 | 1124 | 17.3 |
Base Compiler Invocation
C benchmarks:
| icl -Qvc8 -Qc99 |
C++ benchmarks:
| icl -Qvc8 |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icl -Qvc8 -Qc99 ifort |
Base Portability Flags
| 410.bwaves: | -DSPEC_CPU_P64 |
| 416.gamess: | -DSPEC_CPU_P64 |
| 433.milc: | -D_Complex= -DSPEC_CPU_P64 |
| 434.zeusmp: | -DSPEC_CPU_P64 |
| 435.gromacs: | -D_Complex= -DSPEC_CPU_P64 |
| 436.cactusADM: | -D_Complex= -DSPEC_CPU_P64 -Qlowercase /assume:underscore |
| 437.leslie3d: | -DSPEC_CPU_P64 |
| 444.namd: | -DSPEC_CPU_P64 /TP |
| 447.dealII: | -D_Complex= -DSPEC_CPU_P64 -DBOOST_NO_INTRINSIC_WCHAR_T -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG |
| 450.soplex: | -DSPEC_CPU_P64 |
| 453.povray: | -DSPEC_CPU_P64 -DSPEC_CPU_WINDOWS_ICL |
| 454.calculix: | -D_Complex= -DSPEC_CPU_P64 -DSPEC_CPU_NOZMODIFIER -Qlowercase |
| 459.GemsFDTD: | -DSPEC_CPU_P64 |
| 465.tonto: | -DSPEC_CPU_P64 |
| 470.lbm: | -D_Complex= -DSPEC_CPU_P64 |
| 481.wrf: | -DSPEC_CPU_P64 -DSPEC_CPU_WINDOWS_ICL |
| 482.sphinx3: | -D_Complex= -DSPEC_CPU_P64 |
Base Optimization Flags
C benchmarks:
| -fast -Qparallel -F950000000 -link -FORCE:MULTIPLE |
C++ benchmarks:
| -fast -Qparallel -Qcxx-features -F950000000 -link -FORCE:MULTIPLE |
Fortran benchmarks:
| -fast -Qparallel -F950000000 -link -FORCE:MULTIPLE |
Benchmarks using both Fortran and C:
| -fast -Qparallel -F950000000 -link -FORCE:MULTIPLE |
Peak Compiler Invocation
C benchmarks:
| icl -Qvc8 -Qc99 |
C++ benchmarks:
| icl -Qvc8 |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icl -Qvc8 -Qc99 ifort |
Peak Portability Flags
Same as Base Portability Flags
Peak Optimization Flags
C benchmarks:
| -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -F950000000 -link -FORCE:MULTIPLE |
C++ benchmarks:
| 444.namd: | basepeak = yes |
| 447.dealII: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qcxx-features -F950000000 -link -FORCE:MULTIPLE |
| 450.soplex: | Same as 447.dealII |
| 453.povray: | Same as 447.dealII |
Fortran benchmarks:
| 410.bwaves: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qparallel -F950000000 -link -FORCE:MULTIPLE |
| 416.gamess: | -fast -F950000000 -link -FORCE:MULTIPLE |
| 434.zeusmp: | basepeak = yes |
| 437.leslie3d: | basepeak = yes |
| 459.GemsFDTD: | basepeak = yes |
| 465.tonto: | Same as 410.bwaves |
Benchmarks using both Fortran and C:
| 435.gromacs: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -F950000000 -link -FORCE:MULTIPLE |
| 436.cactusADM: | basepeak = yes |
| 454.calculix: | Same as 435.gromacs |
| 481.wrf: | basepeak = yes |
