SPEC® CFP2006 Result

Bull SAS

NovaScale T860
(Intel Xeon processor E5320,1.86GHz)

SPECfp®_rate2006 = 44.9

SPECfp_rate_base2006 = 43.6

CPU2006 license:	20	Test date:	Jul-2007
Test sponsor:	Bull SAS	Hardware Availability:	Mar-2007
Tested by:	Bull SAS	Software Availability:	May-2007

Hardware
CPU Name:	Intel Xeon E5320
CPU Characteristics:	1.86 GHz, 8 MB L2, 1066 MHz system bus
CPU MHz:	1860
FPU:	Integrated
CPU(s) enabled:	8 cores, 2 chips, 4 cores/chip
CPU(s) orderable:	1 to 2 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	8 MB I+D on chip per chip, 4 MB shared / 2 cores
L3 Cache:	None
Other Cache:	None
Memory:	12 GB (12x1 GB) FB-DIMM PC2-4200F ECC CL4
Disk Subsystem:	1x147 GB SAS, 15000 RPM
Other Hardware:	None

Software
Operating System:	SUSE LINUX Enterprise Server 10 Kernel 2.6.16.21-0.8-smp for x86_64
Compiler:	Intel C++ Compiler for IA32/EM64T application version 10.0 Build 20070426 Package ID: l_cc_p_10.0.023 Intel Fortran Compiler for IA32/EM64T application version 10.0 Build 20070426 Package ID: l_fc_p_10.0.023
Auto Parallel:	No
File System:	ext2
System State:	Multi-user run level 3
Base Pointers:	32-bit
Peak Pointers:	32/64-bit
Other Software:	Binutils 2.17.50.0.15

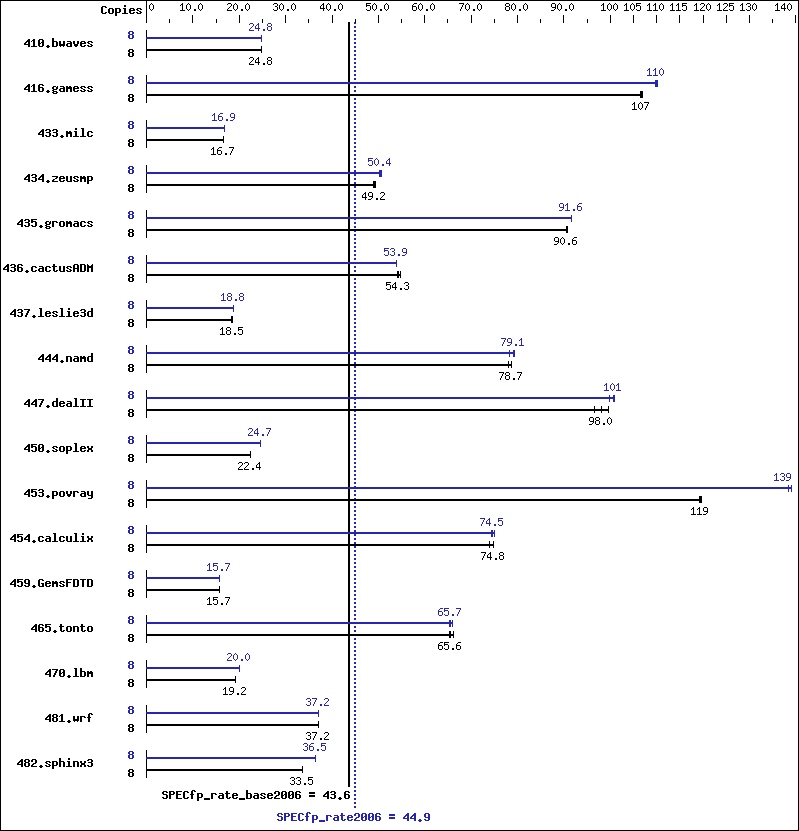

Results Table

Benchmark	Base							Peak
Benchmark	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves	8	4386	24.8	4384	24.8	4385	24.8	8	4385	24.8	4384	24.8	4385	24.8
416.gamess	8	1467	107	1466	107	1471	106	8	1426	110	1423	110	1421	110
433.milc	8	4415	16.6	4410	16.7	4410	16.7	8	4355	16.9	4355	16.9	4354	16.9
434.zeusmp	8	1481	49.2	1475	49.4	1488	48.9	8	1445	50.4	1434	50.8	1450	50.2
435.gromacs	8	631	90.6	629	90.8	631	90.5	8	624	91.6	624	91.5	623	91.6
436.cactusADM	8	1761	54.3	1765	54.2	1749	54.7	8	1774	53.9	1775	53.9	1771	54.0
437.leslie3d	8	4070	18.5	4072	18.5	4092	18.4	8	4008	18.8	4014	18.7	4010	18.8
444.namd	8	815	78.7	816	78.7	821	78.1	8	809	79.3	811	79.1	820	78.2
447.dealII	8	919	99.5	933	98.0	948	96.5	8	907	101	916	99.9	909	101
450.soplex	8	2976	22.4	2974	22.4	2970	22.5	8	2704	24.7	2705	24.7	2706	24.7
453.povray	8	357	119	357	119	356	120	8	308	138	306	139	306	139
454.calculix	8	893	73.9	882	74.8	881	74.9	8	878	75.1	885	74.5	888	74.4
459.GemsFDTD	8	5398	15.7	5404	15.7	5404	15.7	8	5402	15.7	5410	15.7	5405	15.7
465.tonto	8	1190	66.1	1203	65.4	1199	65.6	8	1206	65.3	1192	66.0	1199	65.7
470.lbm	8	5728	19.2	5728	19.2	5728	19.2	8	5491	20.0	5490	20.0	5491	20.0
481.wrf	8	2404	37.2	2404	37.2	2405	37.2	8	2405	37.2	2408	37.1	2405	37.2
482.sphinx3	8	4649	33.5	4646	33.6	4648	33.5	8	4271	36.5	4268	36.5	4273	36.5

Operating System Notes

 'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
 '/usr/bin/taskset' used to bind processes to CPUs

General Notes

 All binaries were built with 64-bit Intel compiler except:
 437.leslie3d, 450.soplex, 470.lbm and 482.sphinx3 in peak were built with
 32-bit Intel compiler by changing the path for include and library files.

Base Compiler Invocation

C benchmarks:

icc

C++ benchmarks:

icpc

Fortran benchmarks:

ifort

Benchmarks using both Fortran and C:

icc ifort

Base Portability Flags

410.bwaves:	-DSPEC_CPU_LP64
416.gamess:	-DSPEC_CPU_LP64
433.milc:	-DSPEC_CPU_LP64
434.zeusmp:	-DSPEC_CPU_LP64
435.gromacs:	-DSPEC_CPU_LP64 -nofor_main
436.cactusADM:	-DSPEC_CPU_LP64 -nofor_main
437.leslie3d:	-DSPEC_CPU_LP64
444.namd:	-DSPEC_CPU_LP64
447.dealII:	-DSPEC_CPU_LP64
450.soplex:	-DSPEC_CPU_LP64
453.povray:	-DSPEC_CPU_LP64
454.calculix:	-DSPEC_CPU_LP64 -nofor_main
459.GemsFDTD:	-DSPEC_CPU_LP64
465.tonto:	-DSPEC_CPU_LP64
470.lbm:	-DSPEC_CPU_LP64
481.wrf:	-DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX
482.sphinx3:	-DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

-fast

C++ benchmarks:

-fast

Fortran benchmarks:

-fast

Benchmarks using both Fortran and C:

-fast

Peak Compiler Invocation

C benchmarks (except as noted below):

	/opt/intel/cc/10.0.023/bin/icc -L/opt/intel/cc/10.0.023/lib -I/opt/intel/cc/10.0.023/include
433.milc:	icc

C++ benchmarks (except as noted below):

	icpc
450.soplex:	/opt/intel/cc/10.0.023/bin/icpc -L/opt/intel/cc/10.0.023/lib -I/opt/intel/cc/10.0.023/include

Fortran benchmarks (except as noted below):

	ifort
437.leslie3d:	/opt/intel/fc/10.0.023/bin/ifort -L/opt/intel/fc/10.0.023/lib -I/opt/intel/fc/10.0.023/include

Benchmarks using both Fortran and C:

icc ifort

Peak Portability Flags

Same as Base Portability Flags

Peak Optimization Flags

C benchmarks:

433.milc:	-prof_gen(pass 1) -prof_use(pass 2) -fast -fno-alias
470.lbm:	-prof_gen(pass 1) -prof_use(pass 2) -fast -unroll2 -scalar-rep- -prefetch
482.sphinx3:	-fast -unroll2

C++ benchmarks:

444.namd:	-prof_gen(pass 1) -prof_use(pass 2) -fast -fno-alias -auto_ilp32
447.dealII:	-prof_gen(pass 1) -prof_use(pass 2) -fast -unroll2 -ansi-alias -scalar-rep-
450.soplex:	-prof_gen(pass 1) -prof_use(pass 2) -fast -xT -ipo -O3 -no-prec-div
453.povray:	-prof_gen(pass 1) -prof_use(pass 2) -fast -unroll4 -ansi-alias

Fortran benchmarks:

410.bwaves:	-fast
416.gamess:	-prof_gen(pass 1) -prof_use(pass 2) -fast -unroll2 -Ob0 -ansi-alias -scalar-rep-
434.zeusmp:	-prof_gen(pass 1) -prof_use(pass 2) -fast
437.leslie3d:	Same as 434.zeusmp
459.GemsFDTD:	-prof_gen(pass 1) -prof_use(pass 2) -fast -unroll2 -Ob0
465.tonto:	-prof_gen(pass 1) -prof_use(pass 2) -fast -unroll4

Benchmarks using both Fortran and C:

435.gromacs:	-prof_gen(pass 1) -prof_use(pass 2) -fast -auto_ilp32
436.cactusADM:	-prof_gen(pass 1) -prof_use(pass 2) -fast -unroll2 -auto_ilp32
454.calculix:	-fast -auto_ilp32
481.wrf:	Same as 454.calculix

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/EM64T_Intel100_flags.20090714.00.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/EM64T_Intel100_flags.20090714.00.xml.
