SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Bull SAS

NovaScale T840
(Intel Xeon processor 5110,1.60GHz)

CPU2006 license: 20 Test date: Sep-2007
Test sponsor: Bull SAS Hardware Availability: Mar-2007
Tested by: Bull SAS Software Availability: Aug-2007

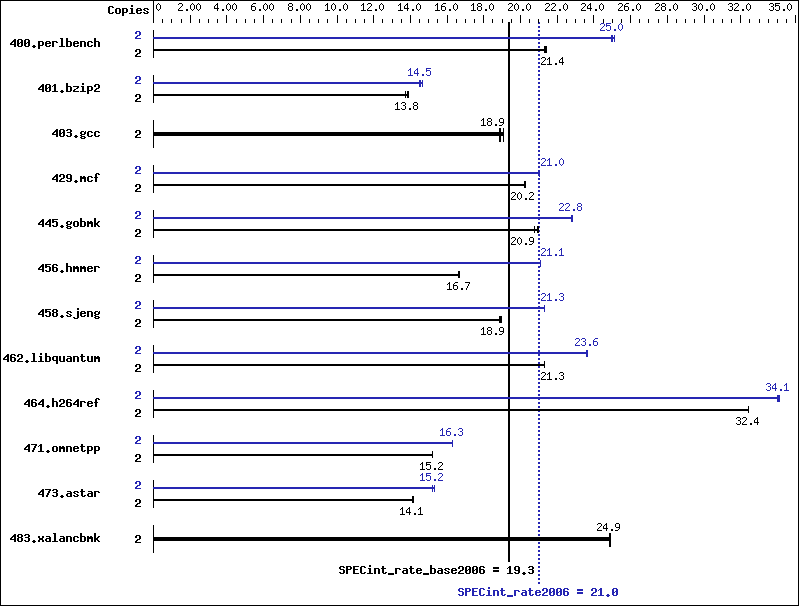

Benchmark results graph
Hardware
CPU Name: Intel Xeon 5110
CPU Characteristics: 1.60 GHz, 4 MB L2, 1066 MHz system bus
CPU MHz: 1600
FPU: Integrated
CPU(s) enabled: 2 cores, 1 chip, 2 cores/chip
CPU(s) orderable: 1 to 2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 4 MB I+D on chip per chip
L3 Cache: None
Other Cache: None
Memory: 4 GB (4x1 GB) FB-DIMM PC2-4200F ECC CL4
Disk Subsystem: 1x73 GB SCSI, 15000 RPM
Other Hardware: None
Software
Operating System: SUSE LINUX Enterprise Server 10
Kernel 2.6.16.21-0.8-smp for x86_64
Compiler: Intel C++ Compiler for Linux32 and Linux64
version 10.0
Build 20070426 Package ID: l_cc_p_10.0.023
Auto Parallel: No
File System: ext2
System State: Multi-user run level 3
Base Pointers: 32-bit
Peak Pointers: 32/64-bit
Other Software: SmartHeap library V8.1
Binutils 2.17.50.0.15

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 2 913 21.4 914 21.4 918 21.3 2 783 25.0 781 25.0 778 25.1
401.bzip2 2 1389 13.9 1396 13.8 1406 13.7 2 1333 14.5 1327 14.5 1318 14.6
403.gcc 2 844 19.1 851 18.9 853 18.9 2 844 19.1 851 18.9 853 18.9
429.mcf 2 903 20.2 903 20.2 901 20.2 2 868 21.0 868 21.0 866 21.1
445.gobmk 2 999 21.0 1011 20.7 1002 20.9 2 919 22.8 921 22.8 921 22.8
456.hmmer 2 1119 16.7 1121 16.6 1120 16.7 2 884 21.1 885 21.1 884 21.1
458.sjeng 2 1280 18.9 1282 18.9 1275 19.0 2 1137 21.3 1136 21.3 1136 21.3
462.libquantum 2 1946 21.3 1944 21.3 1944 21.3 2 1751 23.7 1755 23.6 1753 23.6
464.h264ref 2 1364 32.4 1366 32.4 1365 32.4 2 1301 34.0 1297 34.1 1298 34.1
471.omnetpp 2 823 15.2 822 15.2 823 15.2 2 767 16.3 766 16.3 767 16.3
473.astar 2 996 14.1 993 14.1 994 14.1 2 922 15.2 922 15.2 917 15.3
483.xalancbmk 2 554 24.9 555 24.9 555 24.9 2 554 24.9 555 24.9 555 24.9

Operating System Notes

 'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
 '/usr/bin/taskset' used to bind processes to CPUs

General Notes

Bios settings:
Hardware Prefetcher:      Enabled
Adjacent Sector Prefetch: Disabled
All benchmarks compiled in 32-bit mode except 401.bzip2 and 456.hmmer,
for peak, are compiled in 64-bit mode

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Base Portability Flags

400.perlbench:  -DSPEC_CPU_LINUX_IA32
462.libquantum:  -DSPEC_CPU_LINUX
483.xalancbmk:  -DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

 -fast

C++ benchmarks:

 -xT   -ipo   -O3   -no-prec-div   -Wl,-z,muldefs   -L/spec/cpu2006/lib -lsmartheap

Base Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

Peak Compiler Invocation

C benchmarks (except as noted below):

 icc
401.bzip2:  /opt/intel/cce/10.0.023/bin/icc   -L/opt/intel/cce/10.0.023/lib   -I/opt/intel/cce/10.0.023/include
456.hmmer:  /opt/intel/cce/10.0.023/bin/icc   -L/opt/intel/cce/10.0.023/lib   -I/opt/intel/cce/10.0.023/include

C++ benchmarks:

 icpc

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_LINUX_IA32
401.bzip2:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LINUX
483.xalancbmk:  -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

400.perlbench:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -ansi-alias   -prefetch
401.bzip2:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast
403.gcc:  basepeak = yes
429.mcf:  -fast   -prefetch
445.gobmk:  -prof_gen(pass 1)   -prof_use(pass 2)   -xT   -O2   -ipo   -no-prec_div   -ansi-alias
456.hmmer:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -unroll2   -ansi-alias
458.sjeng:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -unroll4
462.libquantum:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -unroll4   -Ob0   -prefetch   -opt-streaming-stores always
464.h264ref:  Same as 456.hmmer

C++ benchmarks:

471.omnetpp:  -prof_gen(pass 1)   -prof_use(pass 2)   -xT   -O3   -ipo   -no-prec_div   -ansi-alias   -Wl,-z,muldefs   -L/spec/cpu2006/lib -lsmartheap
473.astar:  Same as 471.omnetpp
483.xalancbmk:  basepeak = yes

Peak Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/EM64T_Intel100_flags.20090714.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/EM64T_Intel100_flags.20090714.xml.

SPEC and SPECint are registered trademarks of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2006-2014 Standard Performance Evaluation Corporation
Tested with SPEC CPU2006 v1.0.
Report generated on Tue Jul 22 14:58:16 2014 by SPEC CPU2006 HTML formatter v6932.
Originally published on 16 October 2007.
