| CPU2006 license: | 9006 | Test date: | Sep-2007 |
|---|---|---|---|
| Test sponsor: | NEC Corporation | Hardware Availability: | Jan-2007 |
| Tested by: | NEC Corporation | Software Availability: | Apr-2007 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon 5130 |
| CPU Characteristics: | 2.00 GHz, 4MB L2, 1333MHz bus |
| CPU MHz: | 2000 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 2 chips, 2 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 4 MB I+D on chip per chip |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 8 GB (8x1 GB PC2-5300F, 2 rank, CL5-5-5, ECC) |
| Disk Subsystem: | 1x73.2 GB SAS, 10000RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Windows Server 2003, Standard x64 Edition Service Pack1 |
| Compiler: | Intel C++ Compiler for EM64T version 9.1 Build 20070322, Package-ID W_CC_C_9.1.037 Intel Fortran Compiler for EM64T version 9.1 Build 20070322, Package-ID W_FC_C_9.1.037 Microsoft Visual Studio 2005 (libr. & linker) |
| Auto Parallel: | Yes |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 64-bit |
| Peak Pointers: | 64-bit |
| Other Software: | None |

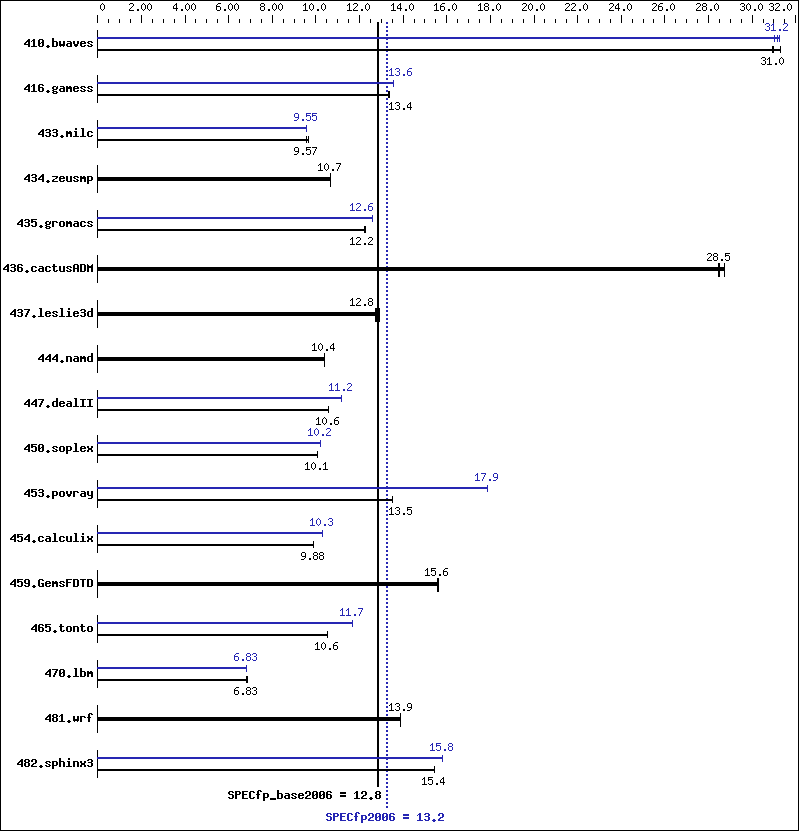

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 410.bwaves | 434 | 31.3 | 439 | 30.9 | 438 | 31.0 | 436 | 31.2 | 438 | 31.0 | 435 | 31.2 |
| 416.gamess | 1467 | 13.4 | 1467 | 13.3 | 1464 | 13.4 | 1444 | 13.6 | 1445 | 13.6 | 1444 | 13.6 |
| 433.milc | 951 | 9.65 | 960 | 9.57 | 960 | 9.57 | 961 | 9.55 | 960 | 9.56 | 961 | 9.55 |
| 434.zeusmp | 853 | 10.7 | 853 | 10.7 | 853 | 10.7 | 853 | 10.7 | 853 | 10.7 | 853 | 10.7 |
| 435.gromacs | 581 | 12.3 | 585 | 12.2 | 585 | 12.2 | 567 | 12.6 | 567 | 12.6 | 567 | 12.6 |
| 436.cactusADM | 416 | 28.7 | 419 | 28.5 | 420 | 28.5 | 416 | 28.7 | 419 | 28.5 | 420 | 28.5 |
| 437.leslie3d | 727 | 12.9 | 737 | 12.7 | 737 | 12.8 | 727 | 12.9 | 737 | 12.7 | 737 | 12.8 |
| 444.namd | 771 | 10.4 | 771 | 10.4 | 771 | 10.4 | 771 | 10.4 | 771 | 10.4 | 771 | 10.4 |
| 447.dealII | 1080 | 10.6 | 1080 | 10.6 | 1080 | 10.6 | 1022 | 11.2 | 1022 | 11.2 | 1022 | 11.2 |
| 450.soplex | 826 | 10.1 | 828 | 10.1 | 828 | 10.1 | 817 | 10.2 | 817 | 10.2 | 817 | 10.2 |
| 453.povray | 394 | 13.5 | 394 | 13.5 | 394 | 13.5 | 298 | 17.8 | 298 | 17.9 | 298 | 17.9 |
| 454.calculix | 835 | 9.88 | 835 | 9.88 | 835 | 9.88 | 801 | 10.3 | 801 | 10.3 | 801 | 10.3 |
| 459.GemsFDTD | 679 | 15.6 | 681 | 15.6 | 681 | 15.6 | 679 | 15.6 | 681 | 15.6 | 681 | 15.6 |
| 465.tonto | 932 | 10.6 | 933 | 10.6 | 933 | 10.5 | 843 | 11.7 | 842 | 11.7 | 842 | 11.7 |
| 470.lbm | 2003 | 6.86 | 2012 | 6.83 | 2012 | 6.83 | 2012 | 6.83 | 2012 | 6.83 | 2012 | 6.83 |
| 481.wrf | 804 | 13.9 | 804 | 13.9 | 804 | 13.9 | 804 | 13.9 | 804 | 13.9 | 804 | 13.9 |
| 482.sphinx3 | 1262 | 15.4 | 1263 | 15.4 | 1263 | 15.4 | 1234 | 15.8 | 1234 | 15.8 | 1234 | 15.8 |
Base Compiler Invocation
C benchmarks:
| icl -Qvc8 -Qc99 |
C++ benchmarks:
| icl -Qvc8 |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icl -Qvc8 -Qc99 ifort |
Base Portability Flags
| 410.bwaves: | -DSPEC_CPU_P64 |
| 416.gamess: | -DSPEC_CPU_P64 |
| 433.milc: | -D_Complex= -DSPEC_CPU_P64 |
| 434.zeusmp: | -DSPEC_CPU_P64 |
| 435.gromacs: | -D_Complex= -DSPEC_CPU_P64 |
| 436.cactusADM: | -D_Complex= -DSPEC_CPU_P64 -Qlowercase /assume:underscore |
| 437.leslie3d: | -DSPEC_CPU_P64 |
| 444.namd: | -DSPEC_CPU_P64 /TP |
| 447.dealII: | -D_Complex= -DSPEC_CPU_P64 -DBOOST_NO_INTRINSIC_WCHAR_T -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG |
| 450.soplex: | -DSPEC_CPU_P64 |
| 453.povray: | -DSPEC_CPU_P64 -DSPEC_CPU_WINDOWS_ICL |
| 454.calculix: | -D_Complex= -DSPEC_CPU_P64 -DSPEC_CPU_NOZMODIFIER -Qlowercase |
| 459.GemsFDTD: | -DSPEC_CPU_P64 |
| 465.tonto: | -DSPEC_CPU_P64 |
| 470.lbm: | -D_Complex= -DSPEC_CPU_P64 |
| 481.wrf: | -DSPEC_CPU_P64 -DSPEC_CPU_WINDOWS_ICL |
| 482.sphinx3: | -D_Complex= -DSPEC_CPU_P64 |
Base Optimization Flags
C benchmarks:
| -fast -Qparallel -F950000000 -link -FORCE:MULTIPLE |
C++ benchmarks:
| -fast -Qparallel -Qcxx-features -F950000000 -link -FORCE:MULTIPLE |
Fortran benchmarks:
| -fast -Qparallel -F950000000 -link -FORCE:MULTIPLE |
Benchmarks using both Fortran and C:
| -fast -Qparallel -F950000000 -link -FORCE:MULTIPLE |
Peak Compiler Invocation
C benchmarks:
| icl -Qvc8 -Qc99 |
C++ benchmarks:
| icl -Qvc8 |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icl -Qvc8 -Qc99 ifort |
Peak Portability Flags
Same as Base Portability Flags
Peak Optimization Flags
C benchmarks:
| -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -F950000000 -link -FORCE:MULTIPLE |
C++ benchmarks:
| 444.namd: | basepeak = yes |
| 447.dealII: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qcxx-features -F950000000 -link -FORCE:MULTIPLE |
| 450.soplex: | Same as 447.dealII |
| 453.povray: | Same as 447.dealII |
Fortran benchmarks:
| 410.bwaves: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qparallel -F950000000 -link -FORCE:MULTIPLE |
| 416.gamess: | -fast -F950000000 -link -FORCE:MULTIPLE |
| 434.zeusmp: | basepeak = yes |
| 437.leslie3d: | basepeak = yes |
| 459.GemsFDTD: | basepeak = yes |
| 465.tonto: | Same as 410.bwaves |
Benchmarks using both Fortran and C:
| 435.gromacs: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -F950000000 -link -FORCE:MULTIPLE |
| 436.cactusADM: | basepeak = yes |
| 454.calculix: | Same as 435.gromacs |
| 481.wrf: | basepeak = yes |
