| CPU2006 license: | 20 | Test date: | Jul-2007 |
|---|---|---|---|
| Test sponsor: | Bull SAS | Hardware Availability: | Mar-2007 |
| Tested by: | Bull SAS | Software Availability: | May-2007 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5310 |
| CPU Characteristics: | 1.60 GHz, 8 MB L2, 1066 MHz system bus |
| CPU MHz: | 1600 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
| CPU(s) orderable: | 1 to 2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 8 MB I+D on chip per chip, 4 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 12 GB (12x1 GB) FB-DIMM PC2-4200F ECC CL4 |
| Disk Subsystem: | 1x73 GB SAS, 15000 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE LINUX Enterprise Server 10 Kernel 2.6.16.21-0.8-smp for x86_64 |
| Compiler: | Intel C++ Compiler for Linux32 and Linux64 version 10.0 Build 20070426 Package ID: l_cc_p_10.0.023 |
| Auto Parallel: | No |
| File System: | ext2 |
| System State: | Multi-user run level 3 |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | SmartHeap library V8.1 Binutils 2.17.50.0.15 |

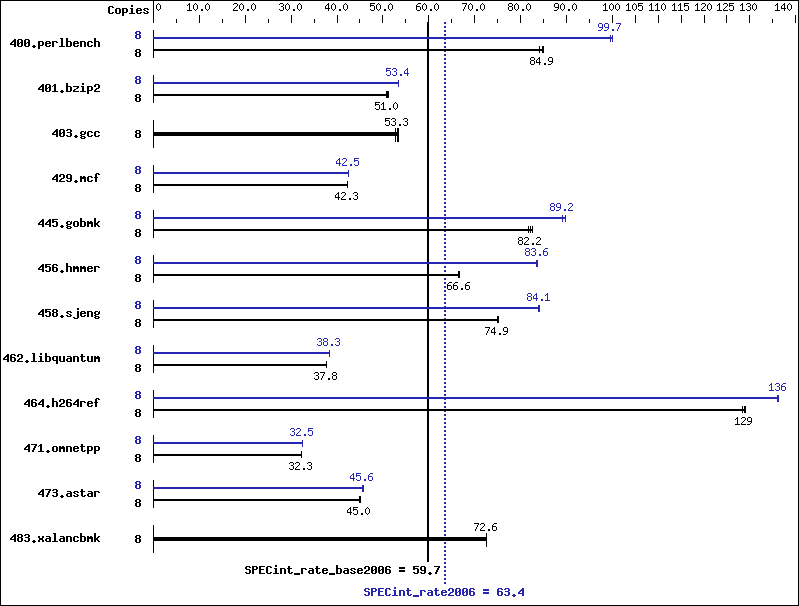

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 8 | 920 | 85.0 | 929 | 84.1 | 921 | 84.9 | 8 | 784 | 99.7 | 781 | 100 | 784 | 99.7 |
| 401.bzip2 | 8 | 1517 | 50.9 | 1514 | 51.0 | 1506 | 51.3 | 8 | 1444 | 53.5 | 1446 | 53.4 | 1444 | 53.4 |
| 403.gcc | 8 | 1207 | 53.3 | 1209 | 53.3 | 1219 | 52.8 | 8 | 1207 | 53.3 | 1209 | 53.3 | 1219 | 52.8 |
| 429.mcf | 8 | 1724 | 42.3 | 1723 | 42.3 | 1723 | 42.3 | 8 | 1713 | 42.6 | 1717 | 42.5 | 1715 | 42.5 |
| 445.gobmk | 8 | 1015 | 82.7 | 1021 | 82.2 | 1026 | 81.8 | 8 | 942 | 89.1 | 934 | 89.8 | 941 | 89.2 |
| 456.hmmer | 8 | 1122 | 66.5 | 1121 | 66.6 | 1121 | 66.6 | 8 | 892 | 83.6 | 891 | 83.8 | 895 | 83.4 |
| 458.sjeng | 8 | 1292 | 74.9 | 1292 | 74.9 | 1286 | 75.3 | 8 | 1150 | 84.1 | 1150 | 84.2 | 1152 | 84.0 |
| 462.libquantum | 8 | 4390 | 37.8 | 4385 | 37.8 | 4386 | 37.8 | 8 | 4324 | 38.3 | 4325 | 38.3 | 4323 | 38.3 |
| 464.h264ref | 8 | 1372 | 129 | 1378 | 128 | 1374 | 129 | 8 | 1299 | 136 | 1301 | 136 | 1300 | 136 |
| 471.omnetpp | 8 | 1545 | 32.4 | 1547 | 32.3 | 1546 | 32.3 | 8 | 1540 | 32.5 | 1540 | 32.5 | 1540 | 32.5 |
| 473.astar | 8 | 1251 | 44.9 | 1247 | 45.0 | 1249 | 45.0 | 8 | 1230 | 45.7 | 1231 | 45.6 | 1230 | 45.6 |
| 483.xalancbmk | 8 | 761 | 72.5 | 760 | 72.6 | 760 | 72.6 | 8 | 761 | 72.5 | 760 | 72.6 | 760 | 72.6 |
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run '/usr/bin/taskset' used to bind processes to CPUs All benchmarks compiled in 32-bit mode except 401.bzip2 and 456.hmmer, for peak, are compiled in 64-bit mode
General Notes
The NovaScale R440 and the NovaScale R460 models are electronically equivalent. The results have been measured on a NovaScale R460 model.
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -fast |
C++ benchmarks:
| -xT -ipo -O3 -no-prec-div -ansi-alias -L/spec/cpu2006/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
C++ benchmarks:
| icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -prof_gen(pass 1) -prof_use(pass 2) -fast -ansi-alias -prefetch |
| 401.bzip2: | -prof_gen(pass 1) -prof_use(pass 2) -fast |
| 403.gcc: | basepeak = yes |
| 429.mcf: | -fast -prefetch |
| 445.gobmk: | -prof_gen(pass 1) -prof_use(pass 2) -xT -O2 -ipo -no-prec_div -ansi-alias |
| 456.hmmer: | -prof_gen(pass 1) -prof_use(pass 2) -fast -unroll2 -ansi-alias |
| 458.sjeng: | -prof_gen(pass 1) -prof_use(pass 2) -fast -unroll4 |
| 462.libquantum: | -prof_gen(pass 1) -prof_use(pass 2) -fast -unroll4 -Ob0 -prefetch -opt-streaming-stores always |
| 464.h264ref: | Same as 456.hmmer |
C++ benchmarks:
| 471.omnetpp: | -prof_gen(pass 1) -prof_use(pass 2) -xT -O3 -ipo -no-prec_div -ansi-alias -L/spec/cpu2006/lib -lsmartheap |
| 473.astar: | Same as 471.omnetpp |
| 483.xalancbmk: | basepeak = yes |
