SPEC® CFP2006 Result

Bull SAS

NovaScale R460
(Intel Xeon processor E5335, 2.00GHz)

SPECfp®_rate2006 = 52.1

SPECfp_rate_base2006 = 51.4

CPU2006 license:	20	Test date:	Aug-2007
Test sponsor:	Bull SAS	Hardware Availability:	Mar-2007
Tested by:	Bull SAS	Software Availability:	May-2007

Hardware
CPU Name:	Intel Xeon E5335
CPU Characteristics:	2.00 GHz, 8 MB L2, 1333 MHz system bus
CPU MHz:	2000
FPU:	Integrated
CPU(s) enabled:	8 cores, 2 chips, 4 cores/chip
CPU(s) orderable:	1 to 2 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	8 MB I+D on chip per chip, 4 MB shared / 2 cores
L3 Cache:	None
Other Cache:	None
Memory:	16 GB (8x2 GB) FB-DIMM PC2-5300F ECC CL5
Disk Subsystem:	1x73 GB SAS, 15000 RPM
Other Hardware:	None

Software
Operating System:	SUSE LINUX Enterprise Server 10 Kernel 2.6.16.21-0.8-smp for x86_64
Compiler:	Intel C++ Compiler for IA32/EM64T application version 10.0 Build 20070426 Package ID: l_cc_p_10.0.023 Intel Fortran Compiler for IA32/EM64T application version 10.0 Build 20070426 Package ID: l_fc_p_10.0.023
Auto Parallel:	No
File System:	ext2
System State:	Multi-user run level 3
Base Pointers:	64-bit
Peak Pointers:	32/64-bit
Other Software:	Binutils 2.17.50.0.15

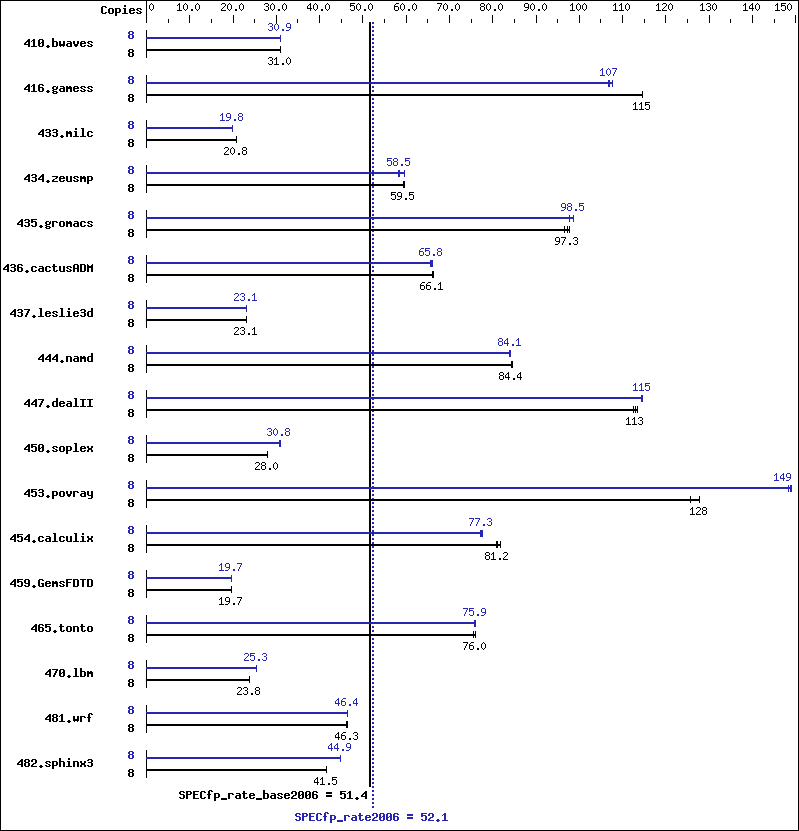

Results Table

Benchmark	Base							Peak
Benchmark	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves	8	3502	31.0	3502	31.0	3502	31.0	8	3516	30.9	3516	30.9	3516	30.9
416.gamess	8	1368	115	1368	115	1366	115	8	1456	108	1466	107	1465	107
433.milc	8	3531	20.8	3530	20.8	3536	20.8	8	3709	19.8	3706	19.8	3710	19.8
434.zeusmp	8	1227	59.3	1222	59.6	1224	59.5	8	1250	58.3	1221	59.6	1245	58.5
435.gromacs	8	584	97.7	592	96.5	587	97.3	8	580	98.5	584	97.7	580	98.5
436.cactusADM	8	1447	66.0	1446	66.1	1441	66.3	8	1449	66.0	1453	65.8	1458	65.6
437.leslie3d	8	3257	23.1	3262	23.1	3241	23.2	8	3262	23.1	3265	23.0	3249	23.1
444.namd	8	760	84.4	761	84.3	759	84.5	8	763	84.1	763	84.1	764	84.0
447.dealII	8	810	113	807	113	813	113	8	800	114	799	115	799	115
450.soplex	8	2381	28.0	2379	28.0	2383	28.0	8	2170	30.7	2163	30.8	2163	30.8
453.povray	8	339	126	333	128	333	128	8	287	148	286	149	286	149
454.calculix	8	816	80.9	807	81.7	813	81.2	8	850	77.6	855	77.2	853	77.3
459.GemsFDTD	8	4306	19.7	4306	19.7	4306	19.7	8	4312	19.7	4302	19.7	4307	19.7
465.tonto	8	1036	76.0	1043	75.5	1035	76.1	8	1037	75.9	1039	75.8	1035	76.1
470.lbm	8	4626	23.8	4629	23.7	4624	23.8	8	4341	25.3	4341	25.3	4341	25.3
481.wrf	8	1924	46.4	1929	46.3	1929	46.3	8	1928	46.4	1928	46.4	1929	46.3
482.sphinx3	8	3754	41.5	3753	41.5	3754	41.5	8	3471	44.9	3471	44.9	3470	44.9

Operating System Notes

 'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
 '/usr/bin/taskset' used to bind processes to CPUs

General Notes

 All binaries were built with 64-bit Intel compiler except:
 433.milc, 434.zeusmp, 450.soplex, 470.lbm and 482.sphinx3 in peak were built with
 32-bit Intel compiler by changing the path for include and library files.

 The NovaScale R440 and the NovaScale R460 models are
 electronically equivalent.
 The results have been measured on a NovaScale R460 model.

Base Compiler Invocation

C benchmarks:

icc

C++ benchmarks:

icpc

Fortran benchmarks:

ifort

Benchmarks using both Fortran and C:

icc ifort

Base Portability Flags

410.bwaves:	-DSPEC_CPU_LP64
416.gamess:	-DSPEC_CPU_LP64
433.milc:	-DSPEC_CPU_LP64
434.zeusmp:	-DSPEC_CPU_LP64
435.gromacs:	-DSPEC_CPU_LP64 -nofor_main
436.cactusADM:	-DSPEC_CPU_LP64 -nofor_main
437.leslie3d:	-DSPEC_CPU_LP64
444.namd:	-DSPEC_CPU_LP64
447.dealII:	-DSPEC_CPU_LP64
450.soplex:	-DSPEC_CPU_LP64
453.povray:	-DSPEC_CPU_LP64
454.calculix:	-DSPEC_CPU_LP64 -nofor_main
459.GemsFDTD:	-DSPEC_CPU_LP64
465.tonto:	-DSPEC_CPU_LP64
470.lbm:	-DSPEC_CPU_LP64
481.wrf:	-DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX
482.sphinx3:	-DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

-fast

C++ benchmarks:

-fast

Fortran benchmarks:

-fast

Benchmarks using both Fortran and C:

-fast

Peak Compiler Invocation

C benchmarks:

/opt/intel/cc/10.0.023/bin/icc -L/opt/intel/cc/10.0.023/lib -I/opt/intel/cc/10.0.023/include

C++ benchmarks (except as noted below):

	icpc
450.soplex:	/opt/intel/cc/10.0.023/bin/icpc -L/opt/intel/cc/10.0.023/lib -I/opt/intel/cc/10.0.023/include

Fortran benchmarks (except as noted below):

	ifort
434.zeusmp:	/opt/intel/fc/10.0.023/bin/ifort -L/opt/intel/fc/10.0.023/lib -I/opt/intel/fc/10.0.023/include

Benchmarks using both Fortran and C:

icc ifort

Peak Portability Flags

410.bwaves:	-DSPEC_CPU_LP64
416.gamess:	-DSPEC_CPU_LP64
435.gromacs:	-DSPEC_CPU_LP64 -nofor_main
436.cactusADM:	-DSPEC_CPU_LP64 -nofor_main
437.leslie3d:	-DSPEC_CPU_LP64
444.namd:	-DSPEC_CPU_LP64
447.dealII:	-DSPEC_CPU_LP64
453.povray:	-DSPEC_CPU_LP64
454.calculix:	-DSPEC_CPU_LP64 -nofor_main
459.GemsFDTD:	-DSPEC_CPU_LP64
465.tonto:	-DSPEC_CPU_LP64
481.wrf:	-DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

433.milc:	-prof_gen(pass 1) -prof_use(pass 2) -fast -auto_ilp32
470.lbm:	Same as 433.milc
482.sphinx3:	-fast -auto_ilp32

C++ benchmarks:

-prof_gen(pass 1) -prof_use(pass 2) -fast -auto_ilp32

Fortran benchmarks:

410.bwaves:	-prof_gen(pass 1) -prof_use(pass 2) -fast
416.gamess:	Same as 410.bwaves
434.zeusmp:	-fast
437.leslie3d:	Same as 410.bwaves
459.GemsFDTD:	Same as 410.bwaves
465.tonto:	Same as 410.bwaves

Benchmarks using both Fortran and C:

-prof_gen(pass 1) -prof_use(pass 2) -fast -auto_ilp32

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/EM64T_Intel100_flags.20090714.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/EM64T_Intel100_flags.20090714.xml.
