SPEC® CFP2006 Result

Hewlett-Packard Company

ProLiant DL580 G4
(3.2 GHz, Intel Xeon processor 7130M)

SPECfp®_rate2006 = 52.8

SPECfp_rate_base2006 = 51.1

CPU2006 license:	3	Test date:	Aug-2007
Test sponsor:	Hewlett-Packard Company	Hardware Availability:	Aug-2006
Tested by:	Hewlett-Packard Company	Software Availability:	May-2007

Hardware
CPU Name:	Intel Xeon 7130M
CPU Characteristics:	3.2 GHz, 800 MHz system bus
CPU MHz:	3200
FPU:	Integrated
CPU(s) enabled:	8 cores, 4 chips, 2 cores/chip
CPU(s) orderable:	1,2,4 chips
Primary Cache:	12 K micro-ops I + 16 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
L3 Cache:	8 MB I+D on chip per chip
Other Cache:	None
Memory:	32 GB (16x2 GB PC2-3200R)
Disk Subsystem:	1x72 GB 15 K SAS
Other Hardware:	None

Software
Operating System:	SuSE LinuxEnterprise Server 10 (x86_64) kernel 2.6.16.21-0.8-smp
Compiler:	Intel C++ Compiler for IA32/EM64T applications, Version 10.0 Build 20070426 Package ID: l_cc_p_10.0.023 Intel Fortran Compiler for applications running on IA32/Intel 64, Version 10.0 Build 20070426 Package ID: l_fc_p_10.0.023
Auto Parallel:	No
File System:	ext2
System State:	Multi-user run level 3
Base Pointers:	64-bit
Peak Pointers:	32/64-bit
Other Software:	None

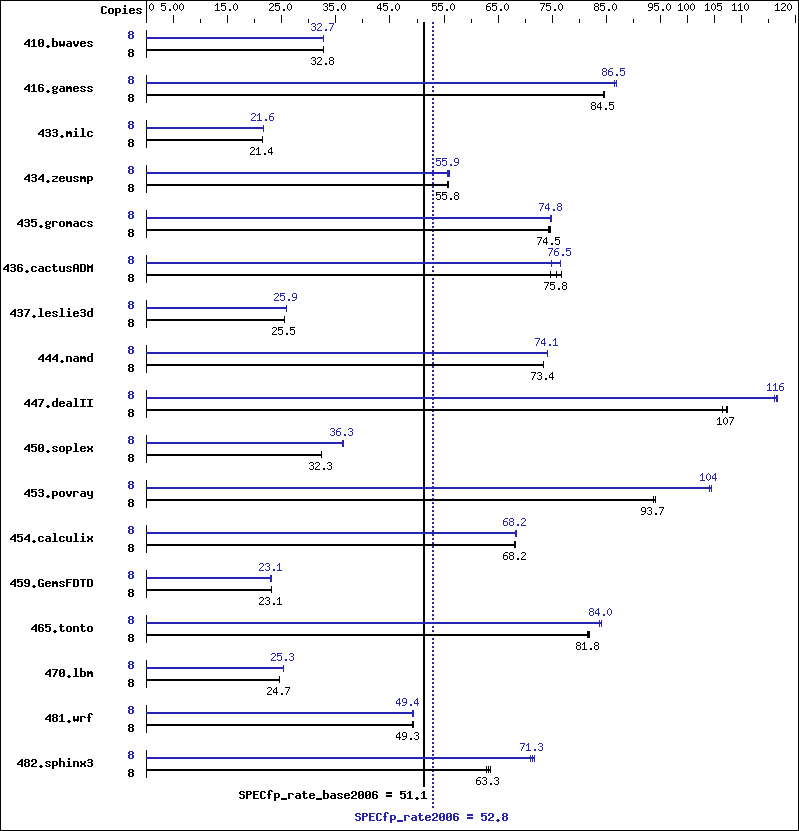

Results Table

Benchmark	Base							Peak
Benchmark	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves	8	3321	32.7	3319	32.8	3318	32.8	8	3320	32.7	3318	32.8	3321	32.7
416.gamess	8	1852	84.6	1853	84.5	1854	84.5	8	1804	86.8	1811	86.5	1811	86.5
433.milc	8	3433	21.4	3431	21.4	3434	21.4	8	3398	21.6	3399	21.6	3398	21.6
434.zeusmp	8	1308	55.7	1306	55.8	1305	55.8	8	1299	56.1	1309	55.6	1303	55.9
435.gromacs	8	768	74.4	767	74.5	765	74.7	8	766	74.6	763	74.9	763	74.8
436.cactusADM	8	1246	76.7	1261	75.8	1281	74.6	8	1248	76.6	1276	74.9	1250	76.5
437.leslie3d	8	2945	25.5	2942	25.6	2950	25.5	8	2901	25.9	2899	25.9	2901	25.9
444.namd	8	874	73.4	874	73.4	873	73.5	8	866	74.1	866	74.1	866	74.1
447.dealII	8	852	107	859	107	854	107	8	785	117	788	116	786	116
450.soplex	8	2065	32.3	2062	32.3	2065	32.3	8	1836	36.3	1839	36.3	1842	36.2
453.povray	8	455	93.6	453	94.0	454	93.7	8	409	104	408	104	409	104
454.calculix	8	967	68.2	972	67.9	968	68.2	8	967	68.2	966	68.3	968	68.2
459.GemsFDTD	8	3682	23.1	3680	23.1	3681	23.1	8	3681	23.1	3693	23.0	3680	23.1
465.tonto	8	965	81.6	962	81.9	963	81.8	8	936	84.1	941	83.7	937	84.0
470.lbm	8	4464	24.6	4458	24.7	4459	24.7	8	4342	25.3	4340	25.3	4340	25.3
481.wrf	8	1808	49.4	1814	49.3	1818	49.2	8	1810	49.4	1820	49.1	1809	49.4
482.sphinx3	8	2465	63.3	2451	63.6	2480	62.9	8	2175	71.7	2187	71.3	2195	71.0

Operating System Notes

 'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run

Platform Notes

 BIOS configuration:
  Power Regulator Disabled
  Adjacent Sector Prefetch Enabled
  Hardware Prefetcher Enabled
  Hyper-Threading Technology Disabled

Base Compiler Invocation

C benchmarks:

icc

C++ benchmarks:

icpc

Fortran benchmarks:

ifort

Benchmarks using both Fortran and C:

icc ifort

Base Portability Flags

410.bwaves:	-DSPEC_CPU_LP64
416.gamess:	-DSPEC_CPU_LP64
433.milc:	-DSPEC_CPU_LP64
434.zeusmp:	-DSPEC_CPU_LP64
435.gromacs:	-DSPEC_CPU_LP64 -nofor_main
436.cactusADM:	-DSPEC_CPU_LP64 -nofor_main
437.leslie3d:	-DSPEC_CPU_LP64
444.namd:	-DSPEC_CPU_LP64
447.dealII:	-DSPEC_CPU_LP64
450.soplex:	-DSPEC_CPU_LP64
453.povray:	-DSPEC_CPU_LP64
454.calculix:	-DSPEC_CPU_LP64 -nofor_main
459.GemsFDTD:	-DSPEC_CPU_LP64
465.tonto:	-DSPEC_CPU_LP64
470.lbm:	-DSPEC_CPU_LP64
481.wrf:	-DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX
482.sphinx3:	-DSPEC_CPU_LP64

Peak Compiler Invocation

C benchmarks (except as noted below):

	/opt/intel/cc/10.0.023/bin/icc -L/opt/intel/cc/10.0.023/lib -I/opt/intel/cc/10.0.023/include
433.milc:	icc

C++ benchmarks (except as noted below):

	icpc
450.soplex:	/opt/intel/cc/10.0.023/bin/icpc -L/opt/intel/cc/10.0.023/lib -I/opt/intel/cc/10.0.023/include

Fortran benchmarks (except as noted below):

	ifort
437.leslie3d:	/opt/intel/fc/10.0.023/bin/ifort -L/opt/intel/fc/10.0.023/lib -I/opt/intel/fc/10.0.023/include

Benchmarks using both Fortran and C:

icc ifort

Peak Portability Flags

Same as Base Portability Flags

Peak Optimization Flags

C benchmarks:

433.milc:	-prof-gen(pass 1) -prof-use(pass 2) -xP -ipo -O3 -static -no-prec-div -fno-alias
470.lbm:	-prof-gen(pass 1) -prof-use(pass 2) -xP -ipo -O3 -static -no-prec-div -unroll2 -no-scalar-rep -prefetch
482.sphinx3:	-xP -ipo -O3 -static -no-prec-div -unroll2

C++ benchmarks:

444.namd:	-prof-gen(pass 1) -prof-use(pass 2) -xP -ipo -O3 -static -no-prec-div -fno-alias -auto-ilp32
447.dealII:	-prof-gen(pass 1) -prof-use(pass 2) -xP -ipo -O3 -static -no-prec-div -unroll2 -ansi-alias -no-scalar-rep
450.soplex:	-prof-gen(pass 1) -prof-use(pass 2) -xP -ipo -O3 -static -no-prec-div
453.povray:	-prof-gen(pass 1) -prof-use(pass 2) -xP -ipo -O3 -static -no-prec-div -unroll4 -ansi-alias

Fortran benchmarks:

410.bwaves:	-xP -ipo -O3 -static -no-prec-div
416.gamess:	-prof-gen(pass 1) -prof-use(pass 2) -xP -ipo -O3 -static -no-prec-div -unroll2 -Ob0 -ansi-alias -no-scalar-rep
434.zeusmp:	-prof-gen(pass 1) -prof-use(pass 2) -xP -ipo -O3 -static -no-prec-div
437.leslie3d:	Same as 434.zeusmp
459.GemsFDTD:	-prof-gen(pass 1) -prof-use(pass 2) -xP -ipo -O3 -static -no-prec-div -unroll2 -Ob0
465.tonto:	-prof-gen(pass 1) -prof-use(pass 2) -xP -ipo -O3 -static -no-prec-div -unroll4

Benchmarks using both Fortran and C:

435.gromacs:	-prof-gen(pass 1) -prof-use(pass 2) -xP -ipo -O3 -static -no-prec-div -fno-alias
436.cactusADM:	-prof-gen(pass 1) -prof-use(pass 2) -xP -ipo -O3 -static -no-prec-div -unroll2 -auto-ilp32
454.calculix:	-xP -ipo -O3 -static -no-prec-div -auto-ilp32
481.wrf:	Same as 454.calculix

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/hp-ic10-flags.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/hp-ic10-flags.xml.
