SPEC® CFP2006 Result

Hewlett-Packard Company

ProLiant DL385 G2
(3.0 GHz AMD Opteron 2222)

SPECfp®_rate2006 = 25.9

SPECfp_rate_base2006 = 25.5

CPU2006 license:	3	Test date:	Aug-2007
Test sponsor:	Hewlett-Packard Company	Hardware Availability:	Sep-2007
Tested by:	Hewlett-Packard Company	Software Availability:	Oct-2007

Hardware
CPU Name:	AMD Opteron 2222
CPU Characteristics:
CPU MHz:	3000
FPU:	Integrated
CPU(s) enabled:	2 cores, 1 chip, 2 cores/chip
CPU(s) orderable:	1,2 chips
Primary Cache:	64 KB I + 64 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
L3 Cache:	None
Other Cache:	None
Memory:	16 GB (4x4 GB, PC2-5300P CL5)
Disk Subsystem:	1x72 GB 10 K SAS
Other Hardware:	None

Software
Operating System:	SuSE Linux Enterprise Server 10 (x86_64) SP1 kernel 2.6.16.46-0.12-smp
Compiler:	The Portland Group (PGI) PGI pgf90 7.1-0 Fortran Compiler PGI pgcc 7.1-0 C Compiler PGI pgCC 7.1-0 C++ Compiler
Auto Parallel:	No
File System:	ext2
System State:	Multi-user, run level 3
Base Pointers:	64-bit
Peak Pointers:	64-bit
Other Software:	none

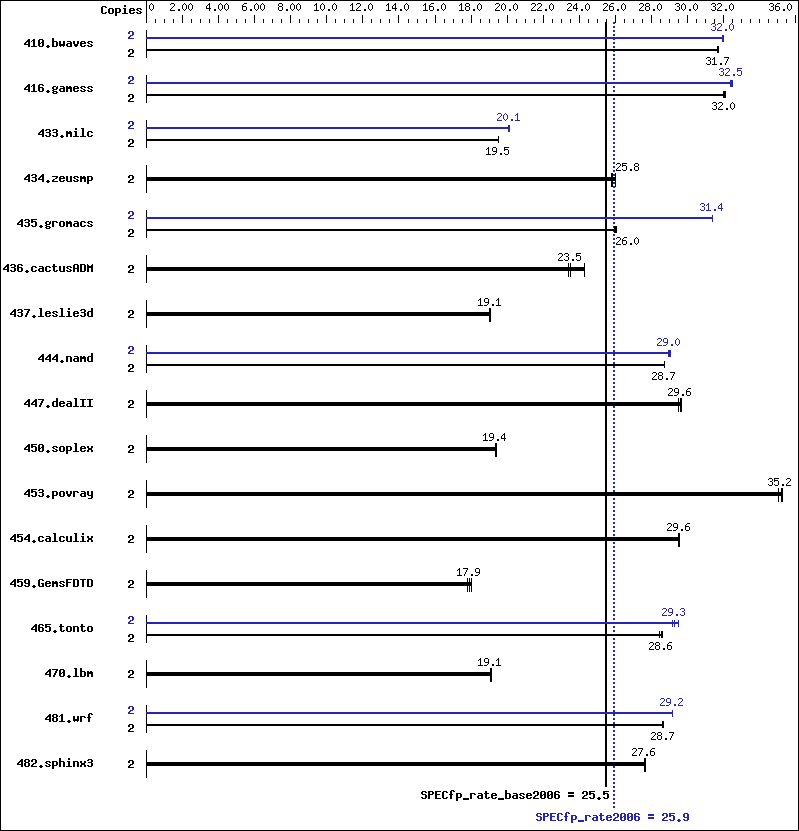

Results Table

Benchmark	Base							Peak
Benchmark	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves	2	857	31.7	857	31.7	858	31.7	2	851	32.0	850	32.0	850	32.0
416.gamess	2	1223	32.0	1224	32.0	1220	32.1	2	1209	32.4	1206	32.5	1206	32.5
433.milc	2	942	19.5	941	19.5	940	19.5	2	913	20.1	914	20.1	912	20.1
434.zeusmp	2	704	25.8	705	25.8	700	26.0	2	704	25.8	705	25.8	700	26.0
435.gromacs	2	550	26.0	549	26.0	548	26.0	2	455	31.4	455	31.4	455	31.4
436.cactusADM	2	1021	23.4	984	24.3	1017	23.5	2	1021	23.4	984	24.3	1017	23.5
437.leslie3d	2	984	19.1	987	19.0	985	19.1	2	984	19.1	987	19.0	985	19.1
444.namd	2	559	28.7	558	28.7	558	28.7	2	553	29.0	552	29.1	555	28.9
447.dealII	2	772	29.6	775	29.5	771	29.7	2	772	29.6	775	29.5	771	29.7
450.soplex	2	861	19.4	859	19.4	861	19.4	2	861	19.4	859	19.4	861	19.4
453.povray	2	304	35.0	302	35.2	302	35.2	2	304	35.0	302	35.2	302	35.2
454.calculix	2	558	29.6	558	29.6	560	29.5	2	558	29.6	558	29.6	560	29.5
459.GemsFDTD	2	1178	18.0	1184	17.9	1193	17.8	2	1178	18.0	1184	17.9	1193	17.8
465.tonto	2	688	28.6	689	28.6	692	28.4	2	672	29.3	667	29.5	674	29.2
470.lbm	2	1437	19.1	1440	19.1	1439	19.1	2	1437	19.1	1440	19.1	1439	19.1
481.wrf	2	779	28.7	779	28.7	780	28.6	2	766	29.2	766	29.2	766	29.2
482.sphinx3	2	1411	27.6	1410	27.6	1411	27.6	2	1411	27.6	1410	27.6	1411	27.6

Operating System Notes

Environment stack size set to 'unlimited'
ulimit -l set to 1048576
'numactl' was used to bind copies to the cores
Set vm/nr_hugepages=1024 in /etc/sysctl.conf
mount -t hugetlbfs nodev /mnt/hugepages

Base Compiler Invocation

C benchmarks:

pgcc

C++ benchmarks:

pgcpp

Fortran benchmarks:

pgf95

Benchmarks using both Fortran and C:

pgcc pgf95

Base Portability Flags

410.bwaves:	-DSPEC_CPU_LP64
416.gamess:	-DSPEC_CPU_LP64
433.milc:	-DSPEC_CPU_LP64
434.zeusmp:	-DSPEC_CPU_LP64
435.gromacs:	-DSPEC_CPU_LP64 -Mnomain
436.cactusADM:	-DSPEC_CPU_LP64 -Mnomain
437.leslie3d:	-DSPEC_CPU_LP64
444.namd:	-DSPEC_CPU_LP64
447.dealII:	-DSPEC_CPU_LP64
450.soplex:	-DSPEC_CPU_LP64
453.povray:	-DSPEC_CPU_LP64
454.calculix:	-DSPEC_CPU_LP64 -Mnomain
459.GemsFDTD:	-DSPEC_CPU_LP64
465.tonto:	-DSPEC_CPU_LP64
470.lbm:	-DSPEC_CPU_LP64
481.wrf:	-DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX
482.sphinx3:	-DSPEC_CPU_LP64

Base Other Flags

C benchmarks:

-w

C++ benchmarks:

-w

Fortran benchmarks:

-w

Benchmarks using both Fortran and C:

-w

Peak Compiler Invocation

C benchmarks:

pgcc

C++ benchmarks:

pgcpp

Fortran benchmarks:

pgf95

Benchmarks using both Fortran and C:

pgcc pgf95

Peak Portability Flags

Same as Base Portability Flags

Peak Optimization Flags

C benchmarks:

433.milc:	-Mpfi(pass 1) -Mipa=fast(pass 2) -Mipa=inline(pass 2) -Mipa=noarg(pass 2) -Mpfo(pass 2) -fast -O4 -Mdse -Mfprelaxed -Msmartalloc=huge:8 -tp k8-64 -Bstatic_pgi
470.lbm:	basepeak = yes
482.sphinx3:	basepeak = yes

C++ benchmarks:

444.namd:	-Mpfi(pass 1) -Mpfo(pass 2) -Mipa=fast(pass 2) -Mipa=inline(pass 2) -fast -O4 -Mfprelaxed -Msmartalloc=huge:32 --zc_eh -tp k8-64 -Bstatic_pgi
447.dealII:	basepeak = yes
450.soplex:	basepeak = yes
453.povray:	basepeak = yes

Fortran benchmarks:

410.bwaves:	-fast -Mipa=fast -Mipa=inline -Mfprelaxed -Msmartalloc -tp k8-64 -Bstatic_pgi
416.gamess:	-fast -Mipa=fast -Mipa=inline -Mfprelaxed -Mvect=noaltcode -Msmartalloc=huge:64 -tp k8-64 -Bstatic_pgi
434.zeusmp:	basepeak = yes
437.leslie3d:	basepeak = yes
459.GemsFDTD:	basepeak = yes
465.tonto:	-fast -Mfprelaxed -Msmartalloc=huge:128 -Mipa=fast -Mipa=inline -Mvect=noaltcode -tp k8-64 -Bstatic_pgi

Benchmarks using both Fortran and C:

435.gromacs:	-fast -O4 -Mipa=fast -Mipa=inline -Mfprelaxed -Msmartalloc=huge:16 -tp k8-64 -Mfpapprox=rsqrt -Bstatic_pgi
436.cactusADM:	basepeak = yes
454.calculix:	basepeak = yes
481.wrf:	-fast -Mfprelaxed -Msmartalloc=huge:32 -Mvect=noaltcode -tp k8-64 -Bstatic_pgi

Peak Other Flags

C benchmarks:

-w

C++ benchmarks:

-w

Fortran benchmarks:

-w

Benchmarks using both Fortran and C:

-w

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/hp-pgi710_flags.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/hp-pgi710_flags.xml.
