SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Dell Inc.

Dell Precision 690 (Intel 5160, 3.00 GHz)

CPU2006 license: 55 Test date: Aug-2007
Test sponsor: Dell Inc. Hardware Availability: May-2006
Tested by: Dell Inc. Software Availability: Jun-2007

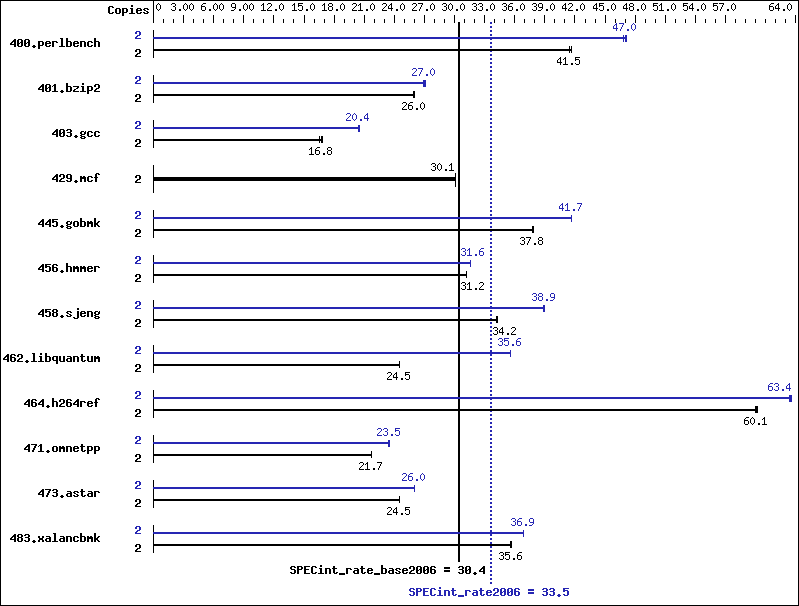

Benchmark results graph
Hardware
CPU Name: Intel Xeon 5160
CPU Characteristics: 1333 MHz Bus Speed
CPU MHz: 3000
FPU: Integrated
CPU(s) enabled: 2 cores, 1 chip, 2 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 4 MB I+D on chip per chip
L3 Cache: None
Other Cache: None
Memory: 8 GB (8x1 GB 667 MHz ECC CL5 FB-DIMM)
Disk Subsystem: 1 x 73GB SAS 10K RPM
Other Hardware: None
Software
Operating System: Windows XP Professional x64 Edition SP2
Compiler: Intel C++ Compiler for IA-32, Version 10.0
Build 20070426 Package ID: W_CC_P_10.0.025
Microsoft Visual Studio 2005 SP1
Auto Parallel: No
File System: NTFS
System State: Default
Base Pointers: 32-bit
Peak Pointers: 32-bit
Other Software: MicroQuill SmartHeap Library 8.0

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 2 472 41.4 469 41.6 471 41.5 2 416 47.0 415 47.1 417 46.8
401.bzip2 2 743 26.0 745 25.9 743 26.0 2 717 26.9 713 27.1 715 27.0
403.gcc 2 961 16.8 954 16.9 971 16.6 2 784 20.5 789 20.4 788 20.4
429.mcf 2 606 30.1 607 30.1 606 30.1 2 606 30.1 607 30.1 606 30.1
445.gobmk 2 554 37.9 555 37.8 556 37.8 2 504 41.7 504 41.7 503 41.7
456.hmmer 2 598 31.2 598 31.2 598 31.2 2 591 31.6 591 31.6 590 31.6
458.sjeng 2 707 34.2 707 34.2 706 34.3 2 623 38.8 622 38.9 621 39.0
462.libquantum 2 1688 24.5 1688 24.5 1689 24.5 2 1165 35.6 1166 35.5 1165 35.6
464.h264ref 2 735 60.2 738 60.0 736 60.1 2 698 63.4 697 63.5 698 63.4
471.omnetpp 2 576 21.7 577 21.7 576 21.7 2 532 23.5 534 23.4 532 23.5
473.astar 2 573 24.5 573 24.5 573 24.5 2 540 26.0 540 26.0 540 26.0
483.xalancbmk 2 387 35.6 388 35.6 387 35.6 2 375 36.8 374 36.9 374 36.9

General Notes

 Binaries were built on Windows Vista Ultimate (64-bit)

 BIOS Settings
   Snoop Filter                 : OFF
   Adjacent Cache Line Prefetch : ON
   Hardware Prefetcher          : ON

   Snoop Filter
     Preserves cache coherency while minimizing snoops
     to remote nodes.

   Adjacent Cache Line Prefetch
     Prefetch data in order to shorten execution cycles
     and maximize data processing efficiency.

Base Compiler Invocation

C benchmarks:

 icl   -Qstd=c99

C++ benchmarks:

 icl

Base Portability Flags

403.gcc:  -DSPEC_CPU_WIN32
464.h264ref:  -DSPEC_CPU_NO_INTTYPES   -DWIN32

Base Optimization Flags

C benchmarks:

 -fast   /F512000000   shlw32m.lib    -link /FORCE:MULTIPLE

C++ benchmarks:

 -fast   -Qcxx_features   /F512000000   shlw32m.lib    -link /FORCE:MULTIPLE

Base Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

Peak Compiler Invocation

C benchmarks:

 icl   -Qstd=c99

C++ benchmarks:

 icl

Peak Portability Flags

403.gcc:  -DSPEC_CPU_WIN32
464.h264ref:  -DSPEC_CPU_NO_INTTYPES   -DWIN32

Peak Optimization Flags

C benchmarks:

400.perlbench:  ONESTEP   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qansi-alias   -Qprefetch   /F512000000   shlw32m.lib    -link /FORCE:MULTIPLE
401.bzip2:  ONESTEP   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   /F512000000   shlw32m.lib    -link /FORCE:MULTIPLE
403.gcc:  ONESTEP   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   /F512000000    -link /FORCE:MULTIPLE
429.mcf:  basepeak = yes
445.gobmk:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -QxT   -O2   -Qipo   -Qprec-div-   -Qansi-alias   /F512000000    -link /FORCE:MULTIPLE
456.hmmer:  ONESTEP   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qunroll2   -Qansi-alias   /F512000000   shlw32m.lib    -link /FORCE:MULTIPLE
458.sjeng:  ONESTEP   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qunroll4   /F512000000   shlw32m.lib    -link /FORCE:MULTIPLE
462.libquantum:  ONESTEP   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qunroll4   -Ob0   -Qprefetch   -Qopt-streaming-stores:always   /F512000000   shlw32m.lib    -link /FORCE:MULTIPLE
464.h264ref:  Same as 456.hmmer

C++ benchmarks:

 ONESTEP   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qansi-alias   -Qcxx_features   /F512000000   shlw32m.lib    -link /FORCE:MULTIPLE

Peak Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/dell.ic10.windows.flags.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/dell.ic10.windows.flags.xml.

SPEC and SPECint are registered trademarks of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2006-2014 Standard Performance Evaluation Corporation
Tested with SPEC CPU2006 v1.0.
Report generated on Tue Jul 22 13:11:34 2014 by SPEC CPU2006 HTML formatter v6932.
Originally published on 4 September 2007.
