| CPU2006 license: | 11 | Test date: | Jul-2007 |
|---|---|---|---|
| Test sponsor: | IBM Corporation | Hardware Availability: | Jul-2006 |
| Tested by: | IBM Corporation | Software Availability: | Jul-2007 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon 5140 |
| CPU Characteristics: | 1333MHz system bus |
| CPU MHz: | 2333 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 2 chips, 2 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 4 MB I+D on chip per chip |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 16 GB (8 x 2 GB DDR2-5300F ECC) |
| Disk Subsystem: | 1 x 36 GB SAS, 15000 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SLES 10 (x86_64), 2.6.16.21-0.8-smp |
| Compiler: | Intel C++ Compiler for Linux version 10.0 Build 20070426 Package ID: l_cc_p_10.0.023 |
| Auto Parallel: | No |
| File System: | ReiserFS |
| System State: | Multi-user, run level 3 |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | MicroQuill SmartHeap 8.1 |

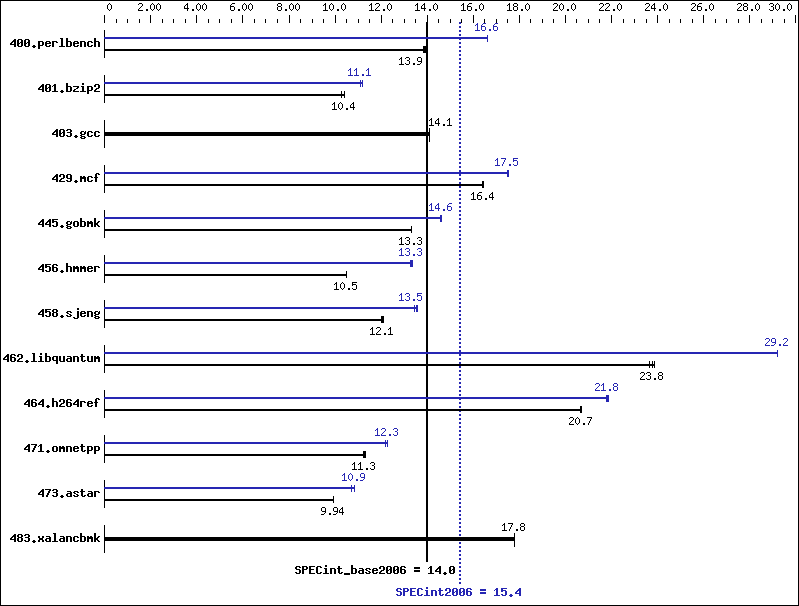

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 704 | 13.9 | 706 | 13.8 | 703 | 13.9 | 588 | 16.6 | 589 | 16.6 | 588 | 16.6 |
| 401.bzip2 | 938 | 10.3 | 928 | 10.4 | 926 | 10.4 | 868 | 11.1 | 869 | 11.1 | 863 | 11.2 |
| 403.gcc | 571 | 14.1 | 575 | 14.0 | 571 | 14.1 | 571 | 14.1 | 575 | 14.0 | 571 | 14.1 |
| 429.mcf | 554 | 16.5 | 556 | 16.4 | 555 | 16.4 | 522 | 17.5 | 520 | 17.5 | 522 | 17.5 |
| 445.gobmk | 788 | 13.3 | 788 | 13.3 | 788 | 13.3 | 720 | 14.6 | 719 | 14.6 | 719 | 14.6 |
| 456.hmmer | 889 | 10.5 | 889 | 10.5 | 890 | 10.5 | 703 | 13.3 | 701 | 13.3 | 699 | 13.3 |
| 458.sjeng | 1001 | 12.1 | 1007 | 12.0 | 1002 | 12.1 | 895 | 13.5 | 898 | 13.5 | 891 | 13.6 |
| 462.libquantum | 868 | 23.9 | 876 | 23.6 | 872 | 23.8 | 709 | 29.2 | 709 | 29.2 | 709 | 29.2 |
| 464.h264ref | 1069 | 20.7 | 1072 | 20.6 | 1070 | 20.7 | 1014 | 21.8 | 1012 | 21.9 | 1015 | 21.8 |
| 471.omnetpp | 553 | 11.3 | 557 | 11.2 | 554 | 11.3 | 509 | 12.3 | 512 | 12.2 | 509 | 12.3 |
| 473.astar | 708 | 9.91 | 706 | 9.94 | 705 | 9.95 | 647 | 10.9 | 654 | 10.7 | 646 | 10.9 |
| 483.xalancbmk | 388 | 17.8 | 388 | 17.8 | 388 | 17.8 | 388 | 17.8 | 388 | 17.8 | 388 | 17.8 |
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -fast |
C++ benchmarks:
| -xT -ipo -O3 -no-prec-div -Wl,-z,muldefs -L/spec/cpu2006.1.0/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
C++ benchmarks:
| icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -prof-gen(pass 1) -prof-use(pass 2) -fast -ansi-alias -prefetch |
| 401.bzip2: | -prof-gen(pass 1) -prof-use(pass 2) -fast |
| 403.gcc: | basepeak = yes |
| 429.mcf: | -fast -prefetch |
| 445.gobmk: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O2 -ipo -no-prec_div -ansi-alias |
| 456.hmmer: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -ansi-alias |
| 458.sjeng: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 |
| 462.libquantum: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 -Ob0 -prefetch -opt-streaming-stores always |
| 464.h264ref: | Same as 456.hmmer |
C++ benchmarks:
| 471.omnetpp: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec_div -ansi-alias -Wl,-z,muldefs -L/spec/cpu2006.1.0/lib -lsmartheap |
| 473.astar: | Same as 471.omnetpp |
| 483.xalancbmk: | basepeak = yes |
