| CPU2006 license: | 9006 | Test date: | Jun-2007 |
|---|---|---|---|
| Test sponsor: | NEC Corporation | Hardware Availability: | May-2007 |
| Tested by: | NEC Corporation | Software Availability: | Jun-2007 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon 5140 |
| CPU Characteristics: | 2.33 GHz, 4MB L2, 1333MHz bus |
| CPU MHz: | 2333 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 2 chips, 2 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 4 MB I+D on chip per chip |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 8 GB (4x2 GB DDR2 5300F, 2 rank, CL5-5-5, ECC) |
| Disk Subsystem: | 1x73.2 GB SAS, 15000RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | 64-Bit SUSE LINUX Enterprise Server 10, Kernel 2.6.16.21-0.8-smp for x86_64 |
| Compiler: | Intel C++ Compiler for IA32/EM64T application, Version 10.0 - Build 20070426 Package ID: l_cc_p_10.0.023 |
| Auto Parallel: | No |
| File System: | ext2 |
| System State: | Multiuser, Runlevel 3 |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | MicroQuill SmartHeap library 8.1 binutils-2.17.tar.gz, Version 2.17 |

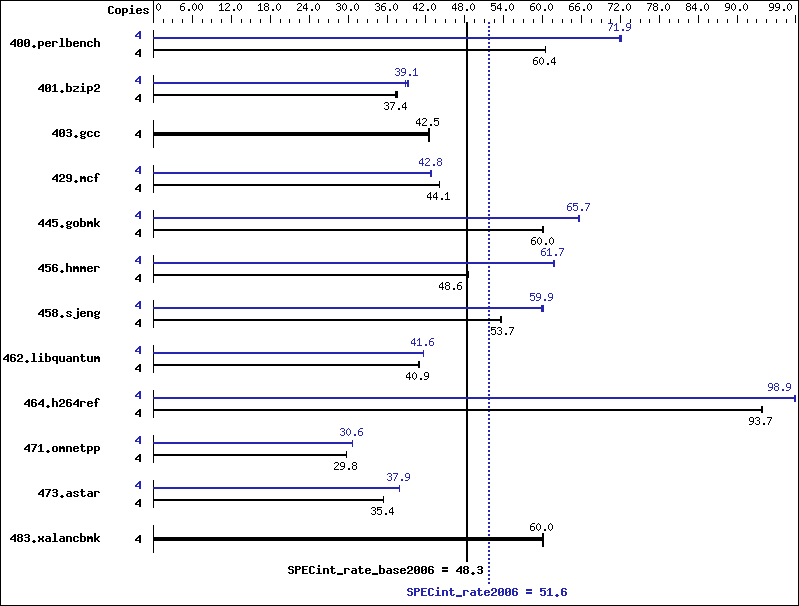

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 4 | 647 | 60.4 | 647 | 60.4 | 647 | 60.4 | 4 | 543 | 71.9 | 541 | 72.2 | 544 | 71.9 |
| 401.bzip2 | 4 | 1033 | 37.4 | 1026 | 37.6 | 1031 | 37.4 | 4 | 983 | 39.3 | 988 | 39.1 | 994 | 38.8 |
| 403.gcc | 4 | 760 | 42.4 | 756 | 42.6 | 758 | 42.5 | 4 | 760 | 42.4 | 756 | 42.6 | 758 | 42.5 |
| 429.mcf | 4 | 828 | 44.1 | 828 | 44.1 | 829 | 44.0 | 4 | 852 | 42.8 | 853 | 42.7 | 851 | 42.9 |
| 445.gobmk | 4 | 699 | 60.0 | 699 | 60.0 | 698 | 60.1 | 4 | 640 | 65.5 | 639 | 65.7 | 639 | 65.7 |
| 456.hmmer | 4 | 768 | 48.6 | 767 | 48.6 | 767 | 48.6 | 4 | 605 | 61.7 | 603 | 61.8 | 605 | 61.7 |
| 458.sjeng | 4 | 901 | 53.7 | 902 | 53.7 | 905 | 53.5 | 4 | 805 | 60.1 | 810 | 59.7 | 808 | 59.9 |
| 462.libquantum | 4 | 2028 | 40.9 | 2021 | 41.0 | 2026 | 40.9 | 4 | 1991 | 41.6 | 1989 | 41.7 | 1991 | 41.6 |
| 464.h264ref | 4 | 944 | 93.7 | 944 | 93.8 | 944 | 93.7 | 4 | 896 | 98.8 | 895 | 98.9 | 894 | 99.0 |
| 471.omnetpp | 4 | 840 | 29.8 | 840 | 29.8 | 840 | 29.7 | 4 | 816 | 30.7 | 816 | 30.6 | 817 | 30.6 |
| 473.astar | 4 | 792 | 35.5 | 792 | 35.4 | 793 | 35.4 | 4 | 740 | 37.9 | 740 | 37.9 | 741 | 37.9 |
| 483.xalancbmk | 4 | 460 | 60.0 | 459 | 60.1 | 460 | 60.0 | 4 | 460 | 60.0 | 459 | 60.1 | 460 | 60.0 |
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run '/usr/bin/taskset' used to bind processes to CPUs
General Notes
All benchmarks compiled in 32-bit mode except 401.bzip2 and 456.hmmer, for peak, are compiled in 64-bit mode
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -fast |
C++ benchmarks:
| -xT -ipo -O3 -no-prec-div -Wl,-z,muldefs -L/opt/SmartHeap_8.1/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc | |
| 401.bzip2: | /opt/intel/cce/10.0.023/bin/icc |
| 456.hmmer: | /opt/intel/cce/10.0.023/bin/icc |
C++ benchmarks:
| icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -prof-gen(pass 1) -prof-use(pass 2) -fast -ansi-alias -prefetch |
| 401.bzip2: | -L/opt/intel/cce/10.0.023/lib -I/opt/intel/cce/10.0.023/include -prof-gen(pass 1) -prof-use(pass 2) -fast |
| 403.gcc: | basepeak = yes |
| 429.mcf: | -fast -prefetch |
| 445.gobmk: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O2 -ipo -no-prec_div -ansi-alias |
| 456.hmmer: | -L/opt/intel/cce/10.0.023/lib -I/opt/intel/cce/10.0.023/include -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -ansi-alias |
| 458.sjeng: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 |
| 462.libquantum: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 -Ob0 -prefetch -opt-streaming-stores always |
| 464.h264ref: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec_div -ansi-alias -Wl,-z,muldefs -L/opt/SmartHeap_8.1/lib -lsmartheap |
| 473.astar: | Same as 471.omnetpp |
| 483.xalancbmk: | basepeak = yes |
