| CPU2006 license: | 13 | Test date: | May-2007 |
|---|---|---|---|
| Test sponsor: | Intel Corporation | Hardware Availability: | Sep-2007 |
| Tested by: | Intel Corporation | Software Availability: | Jun-2007 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5310 |
| CPU Characteristics: | Quad Core, 1.60 GHz |
| CPU MHz: | 1600 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 8 MB I+D on chip per chip, 4 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 16 GB (8 * 2GB Samsung DDR2 4200F, 2 rank, CL4-4-4, ECC) |
| Disk Subsystem: | Seagate, SCSI, 73GB, 10Krpm, 1 disk only |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | 64-Bit SUSE LINUX Enterprise Server 10, Kernel 2.6.16.21-0.8-smp for x86_64 |
| Compiler: | Intel C++ Compiler for Linux32 version 10.0 Build 20070426 Package ID: l_cc_p_10.0.023 |
| Auto Parallel: | No |
| File System: | ReiserFS |
| System State: | Multi-user, run level 3 |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | SmartHeap library V8.1 Binutils 2.17.50.0.15 |

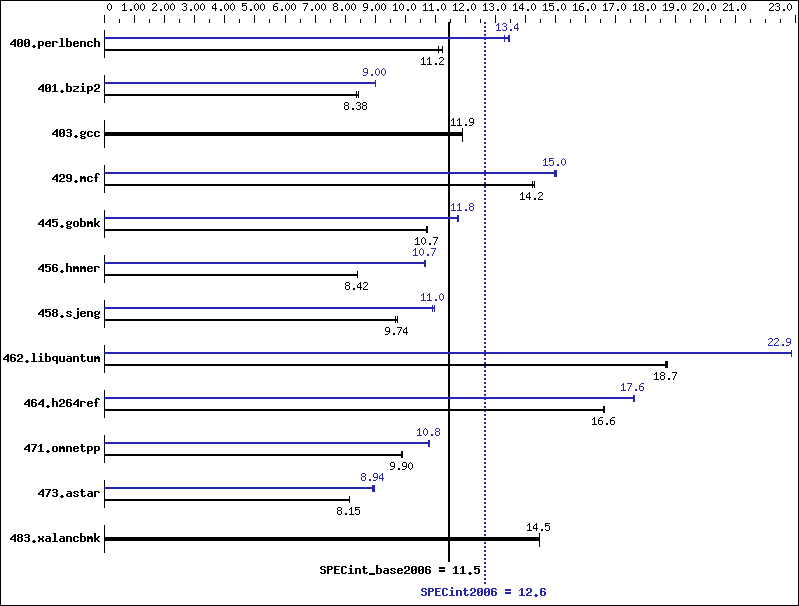

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 868 | 11.2 | 869 | 11.2 | 879 | 11.1 | 727 | 13.4 | 725 | 13.5 | 735 | 13.3 |
| 401.bzip2 | 1154 | 8.36 | 1144 | 8.44 | 1151 | 8.38 | 1072 | 9.00 | 1070 | 9.02 | 1073 | 9.00 |
| 403.gcc | 676 | 11.9 | 677 | 11.9 | 676 | 11.9 | 676 | 11.9 | 677 | 11.9 | 676 | 11.9 |
| 429.mcf | 641 | 14.2 | 641 | 14.2 | 637 | 14.3 | 608 | 15.0 | 609 | 15.0 | 606 | 15.0 |
| 445.gobmk | 978 | 10.7 | 978 | 10.7 | 978 | 10.7 | 892 | 11.8 | 892 | 11.8 | 892 | 11.8 |
| 456.hmmer | 1107 | 8.43 | 1108 | 8.42 | 1108 | 8.42 | 873 | 10.7 | 873 | 10.7 | 876 | 10.7 |
| 458.sjeng | 1243 | 9.74 | 1241 | 9.75 | 1250 | 9.68 | 1103 | 11.0 | 1108 | 10.9 | 1102 | 11.0 |
| 462.libquantum | 1106 | 18.7 | 1109 | 18.7 | 1108 | 18.7 | 907 | 22.8 | 906 | 22.9 | 906 | 22.9 |
| 464.h264ref | 1332 | 16.6 | 1331 | 16.6 | 1332 | 16.6 | 1257 | 17.6 | 1256 | 17.6 | 1258 | 17.6 |
| 471.omnetpp | 631 | 9.90 | 632 | 9.89 | 631 | 9.90 | 577 | 10.8 | 578 | 10.8 | 581 | 10.8 |
| 473.astar | 862 | 8.14 | 861 | 8.15 | 861 | 8.15 | 787 | 8.92 | 783 | 8.97 | 786 | 8.94 |
| 483.xalancbmk | 477 | 14.5 | 477 | 14.5 | 477 | 14.5 | 477 | 14.5 | 477 | 14.5 | 477 | 14.5 |
General Notes
Bios settings: Hardware Prefetcher: Enabled Adjacent Sector Prefetch: Enabled ulimit -s unlimited used to set stack size to unlimited All benchmarks compiled in 32-bit mode except 401.bzip2 and 456.hmmer, for peak, are compiled in 64-bit mode
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -fast |
C++ benchmarks:
| -xT -ipo -O3 -no-prec-div -Wl,-z,muldefs -L/spec/cpu2006.1.0/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
C++ benchmarks:
| icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -prof-gen(pass 1) -prof-use(pass 2) -fast -ansi-alias -prefetch |
| 401.bzip2: | -prof-gen(pass 1) -prof-use(pass 2) -fast |
| 403.gcc: | basepeak = yes |
| 429.mcf: | -fast -prefetch |
| 445.gobmk: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O2 -ipo -no-prec_div -ansi-alias |
| 456.hmmer: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -ansi-alias |
| 458.sjeng: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 |
| 462.libquantum: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 -Ob0 -prefetch -opt-streaming-stores always |
| 464.h264ref: | Same as 456.hmmer |
C++ benchmarks:
| 471.omnetpp: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec_div -ansi-alias -Wl,-z,muldefs -L/spec/cpu2006.1.0/lib -lsmartheap |
| 473.astar: | Same as 471.omnetpp |
| 483.xalancbmk: | basepeak = yes |
