SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Fujitsu Siemens Computers

PRIMERGY RX600 S3, Intel Xeon processor 7120M,
3.0 GHz

CPU2006 license: 22 Test date: Jun-2007
Test sponsor: Fujitsu Siemens Computers Hardware Availability: Aug-2006
Tested by: Fujitsu Siemens Computers Software Availability: Mar-2007

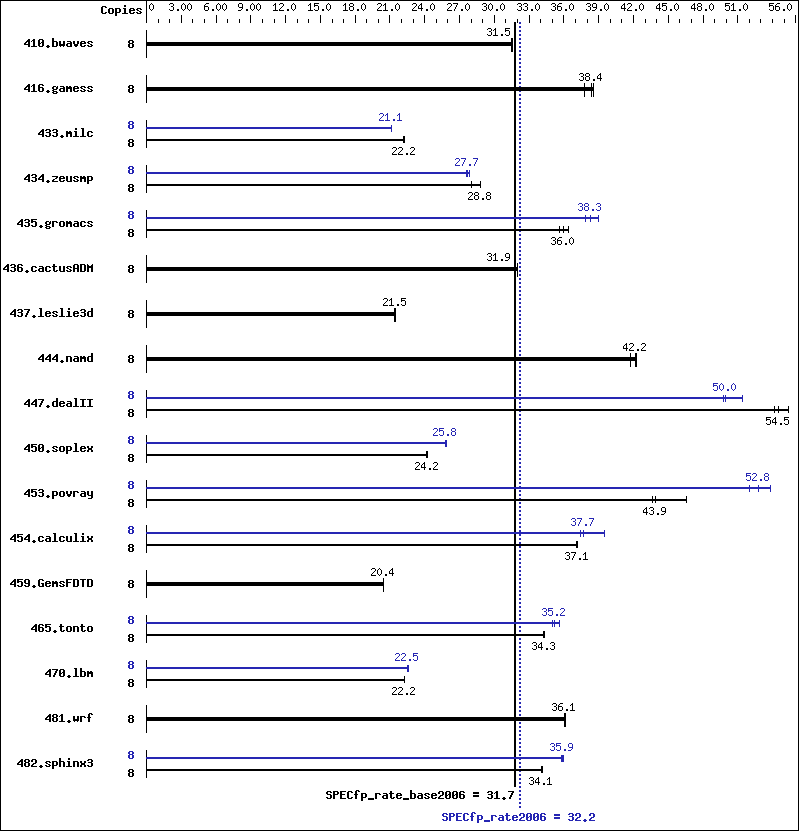

Benchmark results graph
Hardware
CPU Name: Intel Xeon 7120M
CPU Characteristics: 800 MHz system bus
CPU MHz: 3000
FPU: Integrated
CPU(s) enabled: 4 cores, 2 chips, 2 cores/chip, 2 threads/core
CPU(s) orderable: 1,2,4 chips
Primary Cache: 12 K micro-ops I + 16 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
L3 Cache: 4 MB I+D on chip per chip
Other Cache: None
Memory: 32 GB (16x2 GB DDR2 PC2-3200R, 2 rank, CAS 3-3-3,
with ECC)
Disk Subsystem: Seagate ST973401SS (SAS 73GB 10 krpm)
Other Hardware: None
Software
Operating System: 64-Bit SUSE LINUX Enterprise Server 10, Kernel
2.6.16.21-0.8-smp on an x86_64
Compiler: Intel C++ Compiler for IA32/EM64T application,
Version 9.1 - Build 20070215, Package-ID:
l_cc_p_9.1.047
Intel Fortran Compiler for IA32/EM64T application,
Version 9.1 - Build 20070215, Package ID:
l_fc_p_9.1.043
Auto Parallel: No
File System: ReiserFS
System State: Multiuser Runlevel 3
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: None

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 8 3451 31.5 3449 31.5 3448 31.5 8 3451 31.5 3449 31.5 3448 31.5
416.gamess 8 4149 37.8 4059 38.6 4084 38.4 8 4149 37.8 4059 38.6 4084 38.4
433.milc 8 3305 22.2 3305 22.2 3310 22.2 8 3477 21.1 3481 21.1 3479 21.1
434.zeusmp 8 2527 28.8 2595 28.0 2527 28.8 8 2610 27.9 2630 27.7 2640 27.6
435.gromacs 8 1602 35.7 1588 36.0 1570 36.4 8 1510 37.8 1492 38.3 1465 39.0
436.cactusADM 8 2991 32.0 3001 31.9 3002 31.8 8 2991 32.0 3001 31.9 3002 31.8
437.leslie3d 8 3512 21.4 3503 21.5 3498 21.5 8 3512 21.4 3503 21.5 3498 21.5
444.namd 8 1521 42.2 1517 42.3 1536 41.8 8 1521 42.2 1517 42.3 1536 41.8
447.dealII 8 1678 54.5 1690 54.2 1652 55.4 8 1780 51.4 1838 49.8 1831 50.0
450.soplex 8 2752 24.2 2763 24.1 2753 24.2 8 2583 25.8 2584 25.8 2583 25.8
453.povray 8 976 43.6 913 46.6 969 43.9 8 806 52.8 791 53.8 818 52.0
454.calculix 8 1781 37.1 1777 37.1 1775 37.2 8 1753 37.7 1671 39.5 1764 37.4
459.GemsFDTD 8 4161 20.4 4155 20.4 4145 20.5 8 4161 20.4 4155 20.4 4145 20.5
465.tonto 8 2301 34.2 2294 34.3 2294 34.3 8 2212 35.6 2246 35.0 2238 35.2
470.lbm 8 4943 22.2 4948 22.2 4946 22.2 8 4880 22.5 4873 22.6 4889 22.5
481.wrf 8 2472 36.1 2477 36.1 2477 36.1 8 2472 36.1 2477 36.1 2477 36.1
482.sphinx3 8 4569 34.1 4581 34.0 4572 34.1 8 4351 35.8 4338 35.9 4343 35.9

Operating System Notes

 'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
 '/usr/bin/taskset' used to bind processes to CPUs

General Notes


 The system bus runs at 800 MHz

 All binaries were built with 64-bit Intel compiler except:
 433.milc, 434.zeusmp, 450.soplex, 470.lbm and 482.sphinx3 in peak were built with
 32-bit Intel compiler by changing the path for include and library files.

 BIOS configuration:
 Hardware Prefetch = Enable

 The PRIMERGY RX600 S3 and the PRIMERGY TX600 S3 are electronically equivalent.

 For information about Fujitsu Siemens Computers in your country please see:
 http://www.fujitsu-siemens.com/countries

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icc   ifort

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -fast

C++ benchmarks:

 -fast

Fortran benchmarks:

 -fast

Benchmarks using both Fortran and C:

 -fast

Peak Compiler Invocation

C benchmarks:

 /opt/intel/cc/9.1.047/bin/icc   -I/opt/intel/cc/9.1.047/include   -L/opt/intel/cc/9.1.047/lib

C++ benchmarks (except as noted below):

 icpc
450.soplex:  /opt/intel/cc/9.1.047/bin/icpc   -I/opt/intel/cc/9.1.047/include   -L/opt/intel/cc/9.1.047/lib

Fortran benchmarks (except as noted below):

 ifort
434.zeusmp:  /opt/intel/fc/9.1.043/bin/ifort   -I/opt/intel/fc/9.1.043/include   -L/opt/intel/fc/9.1.043/lib

Benchmarks using both Fortran and C:

 icc   ifort

Peak Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

433.milc:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast
470.lbm:  Same as 433.milc
482.sphinx3:  -fast

C++ benchmarks:

444.namd:  basepeak = yes
447.dealII:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast
450.soplex:  Same as 447.dealII
453.povray:  Same as 447.dealII

Fortran benchmarks:

410.bwaves:  basepeak = yes
416.gamess:  basepeak = yes
434.zeusmp:  -fast
437.leslie3d:  basepeak = yes
459.GemsFDTD:  basepeak = yes
465.tonto:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast

Benchmarks using both Fortran and C:

435.gromacs:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast
436.cactusADM:  basepeak = yes
454.calculix:  Same as 435.gromacs
481.wrf:  basepeak = yes

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090714.09.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090714.09.xml.

SPEC and SPECfp are registered trademarks of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2006-2014 Standard Performance Evaluation Corporation
Tested with SPEC CPU2006 v1.0.
Report generated on Tue Jul 22 11:17:36 2014 by SPEC CPU2006 HTML formatter v6932.
Originally published on 26 June 2007.
