| CPU2006 license: | 20 | Test date: | May-2007 |
|---|---|---|---|
| Test sponsor: | Bull SAS | Hardware Availability: | Mar-2007 |
| Tested by: | Bull SAS | Software Availability: | Dec-2006 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5310 |
| CPU Characteristics: | 1.60 GHz, 8 MB L2, 1066 MHz system bus |
| CPU MHz: | 1600 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
| CPU(s) orderable: | 1 to 2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 8 MB I+D on chip per chip, 4 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 24 GB (12x2 GB) FB-DIMM PC2-5300F ECC CL5 |
| Disk Subsystem: | 1x147 GB SAS, 15000 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SuSE Linux Enterprise Server 10 (EM64T) kernel 2.6.16.21-0.8-smp |
| Compiler: | Intel C++ Compiler for Intel EM64T-based applications, Version 9.1 Package ID l_cc_c_9.1.045 Build no 20061101 Intel Fortran Compiler for Intel EM64T-based applications, Version 9.1 Package ID l_fc_c_9.1.040 Build no 20061101 |
| Auto Parallel: | No |
| File System: | ext2 |
| System State: | Multi-user run level 3 |
| Base Pointers: | 64-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | None |

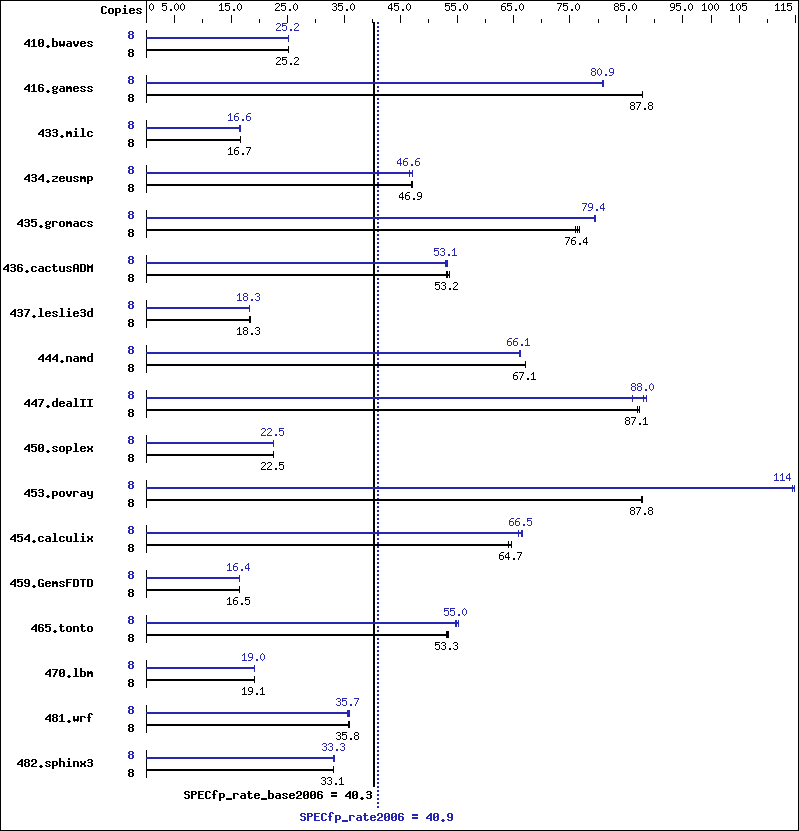

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 410.bwaves | 8 | 4317 | 25.2 | 4315 | 25.2 | 4317 | 25.2 | 8 | 4317 | 25.2 | 4313 | 25.2 | 4316 | 25.2 |
| 416.gamess | 8 | 1784 | 87.8 | 1784 | 87.8 | 1784 | 87.8 | 8 | 1935 | 80.9 | 1939 | 80.8 | 1934 | 81.0 |
| 433.milc | 8 | 4395 | 16.7 | 4395 | 16.7 | 4395 | 16.7 | 8 | 4437 | 16.6 | 4432 | 16.6 | 4430 | 16.6 |
| 434.zeusmp | 8 | 1553 | 46.9 | 1544 | 47.1 | 1552 | 46.9 | 8 | 1561 | 46.6 | 1563 | 46.6 | 1547 | 47.0 |
| 435.gromacs | 8 | 745 | 76.7 | 748 | 76.4 | 752 | 76.0 | 8 | 719 | 79.4 | 719 | 79.4 | 719 | 79.4 |
| 436.cactusADM | 8 | 1780 | 53.7 | 1796 | 53.2 | 1799 | 53.1 | 8 | 1804 | 53.0 | 1800 | 53.1 | 1792 | 53.4 |
| 437.leslie3d | 8 | 4098 | 18.4 | 4110 | 18.3 | 4104 | 18.3 | 8 | 4120 | 18.3 | 4115 | 18.3 | 4118 | 18.3 |
| 444.namd | 8 | 957 | 67.1 | 955 | 67.2 | 956 | 67.1 | 8 | 969 | 66.2 | 970 | 66.1 | 971 | 66.1 |
| 447.dealII | 8 | 1048 | 87.3 | 1052 | 87.0 | 1051 | 87.1 | 8 | 1034 | 88.5 | 1040 | 88.0 | 1063 | 86.1 |
| 450.soplex | 8 | 2956 | 22.6 | 2959 | 22.5 | 2961 | 22.5 | 8 | 2965 | 22.5 | 2964 | 22.5 | 2960 | 22.5 |
| 453.povray | 8 | 485 | 87.8 | 484 | 87.9 | 485 | 87.7 | 8 | 372 | 114 | 371 | 115 | 372 | 114 |
| 454.calculix | 8 | 1020 | 64.7 | 1020 | 64.7 | 1029 | 64.1 | 8 | 993 | 66.5 | 1003 | 65.8 | 992 | 66.5 |
| 459.GemsFDTD | 8 | 5155 | 16.5 | 5147 | 16.5 | 5143 | 16.5 | 8 | 5159 | 16.5 | 5165 | 16.4 | 5162 | 16.4 |
| 465.tonto | 8 | 1473 | 53.4 | 1477 | 53.3 | 1484 | 53.1 | 8 | 1425 | 55.2 | 1432 | 55.0 | 1441 | 54.6 |
| 470.lbm | 8 | 5771 | 19.0 | 5769 | 19.1 | 5769 | 19.1 | 8 | 5770 | 19.0 | 5770 | 19.0 | 5770 | 19.1 |
| 481.wrf | 8 | 2493 | 35.8 | 2486 | 35.9 | 2496 | 35.8 | 8 | 2503 | 35.7 | 2506 | 35.7 | 2487 | 35.9 |
| 482.sphinx3 | 8 | 4704 | 33.1 | 4702 | 33.2 | 4706 | 33.1 | 8 | 4687 | 33.3 | 4686 | 33.3 | 4695 | 33.2 |
Operating System Notes
Environment stack size set to 'unlimited' '/usr/bin/taskset' used to bind processes to CPUs
Base Compiler Invocation
C benchmarks:
| icc |
C++ benchmarks:
| icpc |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icc ifort |
Base Portability Flags
| 410.bwaves: | -DSPEC_CPU_LP64 |
| 416.gamess: | -DSPEC_CPU_LP64 |
| 433.milc: | -DSPEC_CPU_LP64 |
| 434.zeusmp: | -DSPEC_CPU_LP64 |
| 435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
| 436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
| 437.leslie3d: | -DSPEC_CPU_LP64 |
| 444.namd: | -DSPEC_CPU_LP64 |
| 447.dealII: | -DSPEC_CPU_LP64 |
| 450.soplex: | -DSPEC_CPU_LP64 |
| 453.povray: | -DSPEC_CPU_LP64 |
| 454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
| 459.GemsFDTD: | -DSPEC_CPU_LP64 |
| 465.tonto: | -DSPEC_CPU_LP64 |
| 470.lbm: | -DSPEC_CPU_LP64 |
| 481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
| 482.sphinx3: | -DSPEC_CPU_LP64 |
Base Optimization Flags
C benchmarks:
| -fast |
C++ benchmarks:
| -fast |
Fortran benchmarks:
| -fast |
Benchmarks using both Fortran and C:
| -fast |
Peak Compiler Invocation
C benchmarks:
| icc |
C++ benchmarks:
| icpc |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icc ifort |
Peak Portability Flags
Same as Base Portability Flags
Peak Optimization Flags
C benchmarks:
| -prof_gen(pass 1) -prof_use(pass 2) -fast -auto_ilp32 |
C++ benchmarks:
| -prof_gen(pass 1) -prof_use(pass 2) -fast -auto_ilp32 |
Fortran benchmarks:
| -prof_gen(pass 1) -prof_use(pass 2) -fast |
Benchmarks using both Fortran and C:
| -prof_gen(pass 1) -prof_use(pass 2) -fast -auto_ilp32 |
