| CPU2006 license: | 001176 | Test date: | Apr-2007 |
|---|---|---|---|
| Test sponsor: | Supermicro | Hardware Availability: | May-2006 |
| Tested by: | Supermicro | Software Availability: | Apr-2007 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon X5355 |
| CPU Characteristics: | 1333MHz system bus |
| CPU MHz: | 2660 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
| CPU(s) orderable: | 1, 2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 8 MB I+D on chip per chip, 4 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 16 GB (8 X 2GB ECC, CL5, FBDIMM) |
| Disk Subsystem: | 1 X 750GB IDE, 7200RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Windows Server 2003 Enterprise Edition W/ SP1 |
| Compiler: | Intel C++ Compiler for IA32 version 9.1 Build no 20070322Z Intel Fortran Compiler for IA32 version 9.1 Build no 20070322Z Microsoft Visual Studio .Net 2003 (for libraries) |
| Auto Parallel: | Yes |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32-bit |
| Other Software: | SmartHeap Library Version 8.0 |

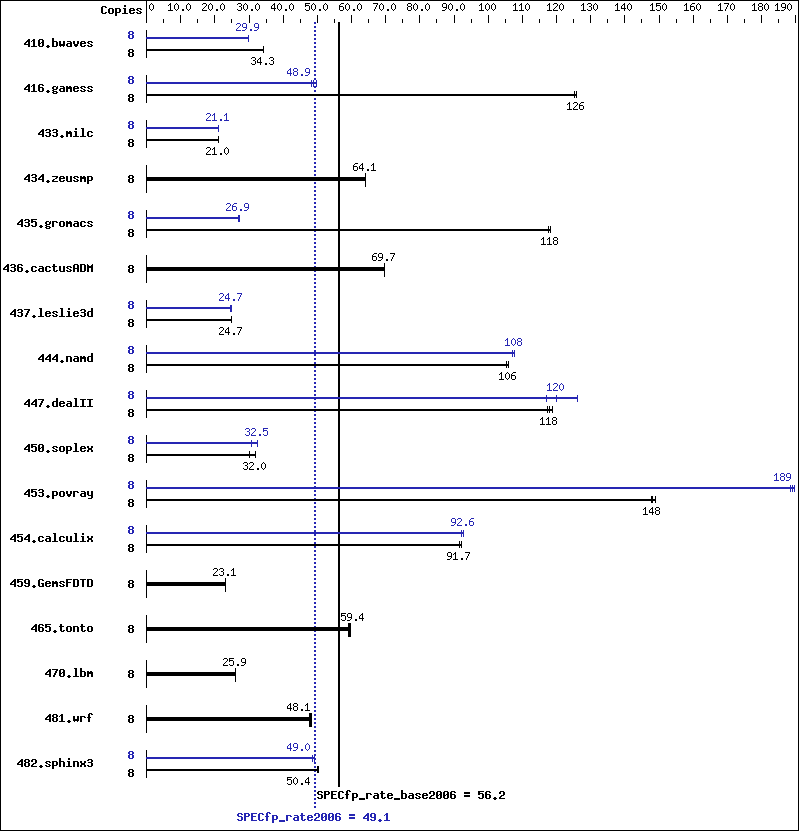

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 410.bwaves | 8 | 3173 | 34.3 | 3171 | 34.3 | 3171 | 34.3 | 8 | 3635 | 29.9 | 3631 | 29.9 | 3635 | 29.9 |
| 416.gamess | 8 | 1245 | 126 | 1249 | 125 | 1246 | 126 | 8 | 3238 | 48.4 | 3204 | 48.9 | 3151 | 49.7 |
| 433.milc | 8 | 3489 | 21.0 | 3491 | 21.0 | 3490 | 21.0 | 8 | 3485 | 21.1 | 3486 | 21.1 | 3488 | 21.1 |
| 434.zeusmp | 8 | 1136 | 64.1 | 1137 | 64.0 | 1136 | 64.1 | 8 | 1136 | 64.1 | 1137 | 64.0 | 1136 | 64.1 |
| 435.gromacs | 8 | 485 | 118 | 483 | 118 | 483 | 118 | 8 | 2100 | 27.2 | 2122 | 26.9 | 2120 | 26.9 |
| 436.cactusADM | 8 | 1372 | 69.7 | 1372 | 69.7 | 1373 | 69.6 | 8 | 1372 | 69.7 | 1372 | 69.7 | 1373 | 69.6 |
| 437.leslie3d | 8 | 3039 | 24.7 | 3040 | 24.7 | 3039 | 24.7 | 8 | 3036 | 24.8 | 3040 | 24.7 | 3042 | 24.7 |
| 444.namd | 8 | 609 | 105 | 605 | 106 | 605 | 106 | 8 | 599 | 107 | 596 | 108 | 596 | 108 |
| 447.dealII | 8 | 780 | 117 | 777 | 118 | 770 | 119 | 8 | 726 | 126 | 764 | 120 | 782 | 117 |
| 450.soplex | 8 | 2213 | 30.1 | 2085 | 32.0 | 2082 | 32.0 | 8 | 2170 | 30.7 | 2050 | 32.5 | 2051 | 32.5 |
| 453.povray | 8 | 286 | 149 | 287 | 148 | 288 | 148 | 8 | 224 | 190 | 226 | 188 | 225 | 189 |
| 454.calculix | 8 | 721 | 91.5 | 717 | 92.1 | 720 | 91.7 | 8 | 715 | 92.3 | 712 | 92.6 | 711 | 92.9 |
| 459.GemsFDTD | 8 | 3673 | 23.1 | 3679 | 23.1 | 3679 | 23.1 | 8 | 3673 | 23.1 | 3679 | 23.1 | 3679 | 23.1 |
| 465.tonto | 8 | 1325 | 59.4 | 1333 | 59.0 | 1320 | 59.6 | 8 | 1325 | 59.4 | 1333 | 59.0 | 1320 | 59.6 |
| 470.lbm | 8 | 4243 | 25.9 | 4241 | 25.9 | 4240 | 25.9 | 8 | 4243 | 25.9 | 4241 | 25.9 | 4240 | 25.9 |
| 481.wrf | 8 | 1868 | 47.8 | 1857 | 48.1 | 1855 | 48.2 | 8 | 1868 | 47.8 | 1857 | 48.1 | 1855 | 48.2 |
| 482.sphinx3 | 8 | 3116 | 50.0 | 3097 | 50.4 | 3095 | 50.4 | 8 | 3201 | 48.7 | 3177 | 49.1 | 3180 | 49.0 |
General Notes
Tested systems can be used with CSE-825S2-R700LPV case, To ensure system stability, a 500W (minimum) ATX power supply [4-pin (+12V), 8-pin (+12V) and 24-pin are required] Product description located as of http://www.supermicro.com/products/motherboard/Xeon1333/5000P/X7DB8.cfm The system bus runs at 1333 MHz
Base Compiler Invocation
C benchmarks:
| icl -Qvc7.1 -Qc99 |
C++ benchmarks:
| icl -Qvc7.1 |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icl -Qvc7.1 -Qc99 ifort |
Base Portability Flags
| 436.cactusADM: | -Qlowercase /assume:underscore |
| 444.namd: | -TP |
| 447.dealII: | -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG -DBOOST_NO_INTRINSIC_WCHAR_T |
| 453.povray: | -DSPEC_CPU_WINDOWS_ICL |
| 454.calculix: | -DSPEC_CPU_NOZMODIFIER -Qlowercase |
| 481.wrf: | -DSPEC_CPU_WINDOWS_ICL |
Base Optimization Flags
C benchmarks:
| -fast /F950000000 shlw32m.lib -link /FORCE:MULTIPLE |
C++ benchmarks:
| -fast -Qcxx_features /F950000000 shlw32m.lib -link /FORCE:MULTIPLE |
Fortran benchmarks:
| -fast /F950000000 -link /FORCE:MULTIPLE |
Benchmarks using both Fortran and C:
| -fast /F950000000 -link /FORCE:MULTIPLE |
Peak Compiler Invocation
C benchmarks:
| icl -Qvc7.1 -Qc99 |
C++ benchmarks:
| icl -Qvc7.1 |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icl -Qvc7.1 -Qc99 ifort |
Peak Portability Flags
| 436.cactusADM: | -Qlowercase /assume:underscore |
| 444.namd: | -TP |
| 447.dealII: | -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG -DBOOST_NO_INTRINSIC_WCHAR_T |
| 453.povray: | -DSPEC_CPU_WINDOWS_ICL |
| 454.calculix: | -DSPEC_CPU_NOZMODIFIER -Qlowercase |
| 481.wrf: | -DSPEC_CPU_WINDOWS_ICL |
Peak Optimization Flags
C benchmarks:
| 433.milc: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast /F950000000 shlw32m.lib -link /FORCE:MULTIPLE |
| 470.lbm: | basepeak = yes |
| 482.sphinx3: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -QxB -Qipo -O3 -Qprec-div- /F950000000 shlw32m.lib -link /FORCE:MULTIPLE |
C++ benchmarks:
| -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qcxx_features /F950000000 shlw32m.lib -link /FORCE:MULTIPLE |
Fortran benchmarks:
| 410.bwaves: | -QxW -Qparallel -Qipo -O3 -Qprec-div- /F950000000 libguide.lib libguide40.lib -link /FORCE:MULTIPLE |
| 416.gamess: | Same as 410.bwaves |
| 434.zeusmp: | basepeak = yes |
| 437.leslie3d: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast /F950000000 -link /FORCE:MULTIPLE |
| 459.GemsFDTD: | basepeak = yes |
| 465.tonto: | basepeak = yes |
Benchmarks using both Fortran and C:
| 435.gromacs: | -QxW -Qparallel -Qipo -O3 -Qprec-div- /F950000000 shlw32m.lib libguide.lib libguide40.lib -link /FORCE:MULTIPLE |
| 436.cactusADM: | basepeak = yes |
| 454.calculix: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast /F950000000 -link /FORCE:MULTIPLE |
| 481.wrf: | basepeak = yes |
