| CPU2006 license: | 22 | Test date: | May-2007 |
|---|---|---|---|
| Test sponsor: | Fujitsu Siemens Computers | Hardware Availability: | Jul-2006 |
| Tested by: | Fujitsu Siemens Computers | Software Availability: | Mar-2007 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon 5140 |
| CPU Characteristics: | 1333 MHz system bus |
| CPU MHz: | 2333 |
| FPU: | Integrated |
| CPU(s) enabled: | 2 cores, 1 chip, 2 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 4 MB I+D on chip per chip |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 16 GB (8x2 GB DDR2 PC2-5300F, 2 rank, CAS 5-5-5, with ECC) |
| Disk Subsystem: | SAS (73GB 15400 rpm) |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | 64-Bit SUSE LINUX Enterprise Server 10, Kernel 2.6.16.21-0.8-smp on an x86_64 |
| Compiler: | Intel C++ Compiler for IA32/EM64T application, Version 9.1 - Build 20070215, Package-ID: l_cc_p_9.1.047 |
| Auto Parallel: | No |
| File System: | ext2 |
| System State: | Multiuser, Runlevel 3 |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Smart Heap Library, Version 8.1 |

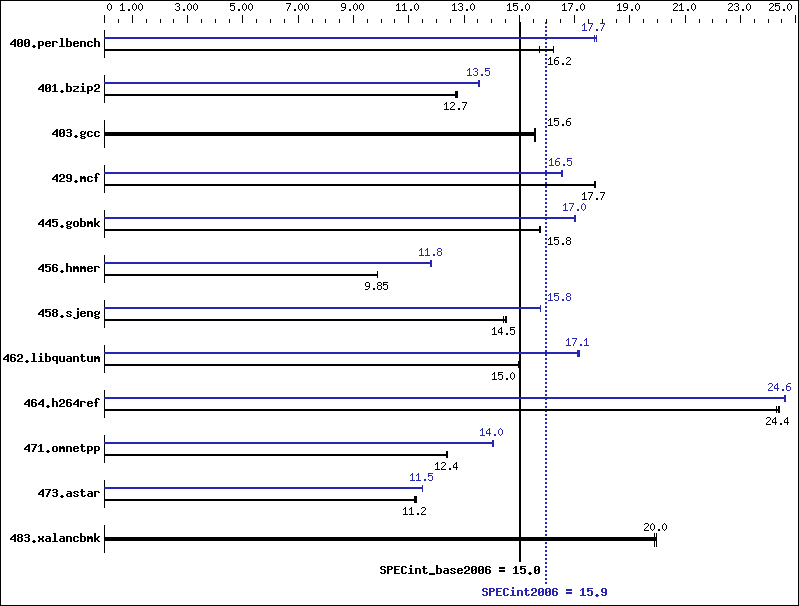

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 621 | 15.7 | 601 | 16.2 | 601 | 16.2 | 551 | 17.7 | 549 | 17.8 | 551 | 17.7 |
| 401.bzip2 | 760 | 12.7 | 755 | 12.8 | 757 | 12.7 | 712 | 13.5 | 712 | 13.6 | 713 | 13.5 |
| 403.gcc | 518 | 15.6 | 517 | 15.6 | 516 | 15.6 | 518 | 15.6 | 517 | 15.6 | 516 | 15.6 |
| 429.mcf | 515 | 17.7 | 514 | 17.7 | 514 | 17.7 | 552 | 16.5 | 551 | 16.5 | 552 | 16.5 |
| 445.gobmk | 667 | 15.7 | 666 | 15.8 | 666 | 15.8 | 617 | 17.0 | 616 | 17.0 | 616 | 17.0 |
| 456.hmmer | 947 | 9.85 | 947 | 9.85 | 947 | 9.85 | 790 | 11.8 | 790 | 11.8 | 791 | 11.8 |
| 458.sjeng | 839 | 14.4 | 835 | 14.5 | 832 | 14.5 | 768 | 15.8 | 768 | 15.8 | 768 | 15.7 |
| 462.libquantum | 1383 | 15.0 | 1381 | 15.0 | 1380 | 15.0 | 1206 | 17.2 | 1208 | 17.1 | 1210 | 17.1 |
| 464.h264ref | 911 | 24.3 | 906 | 24.4 | 908 | 24.4 | 898 | 24.6 | 900 | 24.6 | 898 | 24.6 |
| 471.omnetpp | 505 | 12.4 | 504 | 12.4 | 504 | 12.4 | 445 | 14.0 | 445 | 14.1 | 445 | 14.0 |
| 473.astar | 626 | 11.2 | 625 | 11.2 | 622 | 11.3 | 610 | 11.5 | 611 | 11.5 | 610 | 11.5 |
| 483.xalancbmk | 347 | 19.9 | 345 | 20.0 | 346 | 20.0 | 347 | 19.9 | 345 | 20.0 | 346 | 20.0 |
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
General Notes
The system bus runs at 1333 MHz All binaries were built with 32-bit Intel compiler except: 401.bzip2, 456.hmmer and 462.libquantum in peak were built with 64-bit Intel compiler by changing the path for include and library files. For information about Fujitsu Siemens Computers in your country please see: http://www.fujitsu-siemens.com/countries
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_X64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -fast |
C++ benchmarks:
| -xP -O3 -ipo -no-prec-div -L/opt/SmartHeap_8_1/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
C++ benchmarks:
| icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -prof_gen(pass 1) -prof_use(pass 2) -fast |
| 401.bzip2: | -fast |
| 403.gcc: | basepeak = yes |
| 429.mcf: | -prof_gen(pass 1) -prof_use(pass 2) -fast -L/opt/SmartHeap_8_1/lib -lsmartheap |
| 445.gobmk: | Same as 429.mcf |
| 456.hmmer: | Same as 400.perlbench |
| 458.sjeng: | Same as 429.mcf |
| 462.libquantum: | Same as 400.perlbench |
| 464.h264ref: | Same as 429.mcf |
C++ benchmarks:
| 471.omnetpp: | -prof_gen(pass 1) -prof_use(pass 2) -xP -O3 -ipo -no-prec-div -L/opt/SmartHeap_8_1/lib -lsmartheap |
| 473.astar: | -prof_gen(pass 1) -prof_use(pass 2) -fast -L/opt/SmartHeap_8_1/lib -lsmartheap |
| 483.xalancbmk: | basepeak = yes |
