| CPU2006 license: | 20 | Test date: | Apr-2007 |
|---|---|---|---|
| Test sponsor: | Bull SAS | Hardware Availability: | Jan-2007 |
| Tested by: | Bull SAS | Software Availability: | Dec-2006 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5310 |
| CPU Characteristics: | 1.60 GHz, 8 MB L2, 1066 MHz bus |
| CPU MHz: | 1600 |
| FPU: | Integrated |
| CPU(s) enabled: | 1 core, 1 chip, 4 cores/chip |
| CPU(s) orderable: | 1 to 2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 8 MB I+D on chip per chip, 4 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 8 GB (4x2 GB) FB-DIMM PC2-5300F ECC CL5 |
| Disk Subsystem: | 1x73 GB SAS, 10000 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Windows Server 2003 Enterprise Edition (32 bits) Service Pack1 |
| Compiler: | Intel C++ Compiler for IA32 version 9.1 Package ID W_CC_C_9.1.033 Build no 20061103Z Intel Fortran Compiler for IA32 version 9.1 Package ID W_FC_C_9.1.033 Build no 20061103Z Microsoft Visual Studio .NET 2003 (lib & linker) |
| Auto Parallel: | No |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32-bit |
| Other Software: | MicroQuill SmartHeap Library 8.0 (shlW32M.lib) |

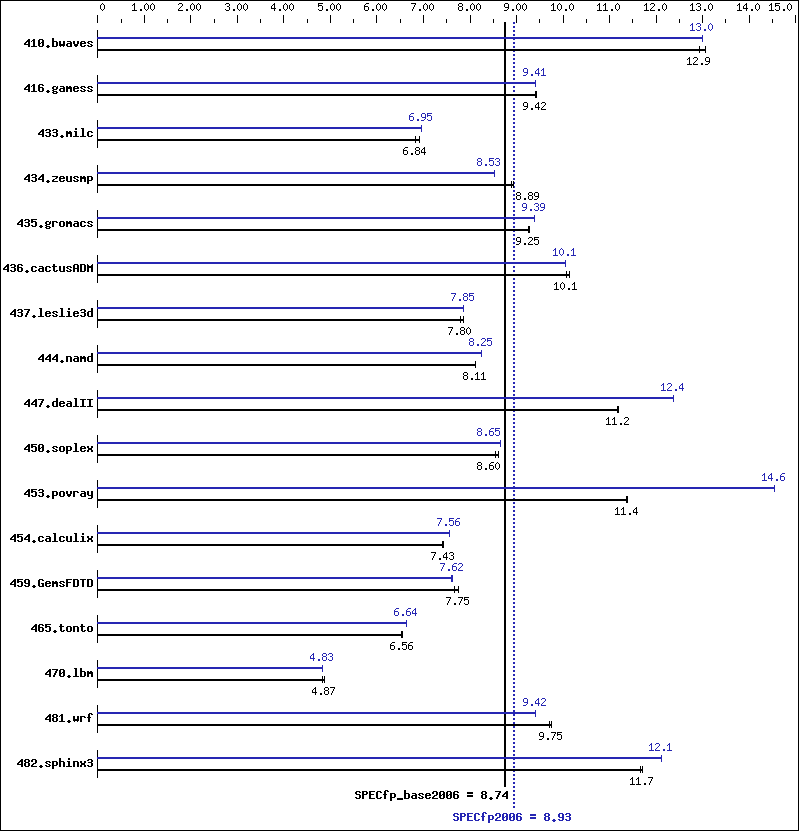

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 410.bwaves | 1051 | 12.9 | 1051 | 12.9 | 1040 | 13.1 | 1046 | 13.0 | 1046 | 13.0 | 1046 | 13.0 |
| 416.gamess | 2079 | 9.42 | 2080 | 9.42 | 2075 | 9.43 | 2081 | 9.41 | 2080 | 9.41 | 2081 | 9.41 |
| 433.milc | 1343 | 6.83 | 1342 | 6.84 | 1329 | 6.91 | 1320 | 6.95 | 1321 | 6.95 | 1321 | 6.95 |
| 434.zeusmp | 1024 | 8.89 | 1024 | 8.89 | 1019 | 8.93 | 1066 | 8.53 | 1066 | 8.53 | 1066 | 8.53 |
| 435.gromacs | 772 | 9.25 | 772 | 9.25 | 770 | 9.27 | 760 | 9.39 | 760 | 9.39 | 760 | 9.39 |
| 436.cactusADM | 1185 | 10.1 | 1185 | 10.1 | 1179 | 10.1 | 1188 | 10.1 | 1188 | 10.1 | 1188 | 10.1 |
| 437.leslie3d | 1206 | 7.80 | 1206 | 7.80 | 1197 | 7.85 | 1197 | 7.85 | 1197 | 7.85 | 1197 | 7.85 |
| 444.namd | 989 | 8.11 | 989 | 8.11 | 987 | 8.12 | 972 | 8.25 | 972 | 8.25 | 972 | 8.25 |
| 447.dealII | 1025 | 11.2 | 1022 | 11.2 | 1021 | 11.2 | 924 | 12.4 | 924 | 12.4 | 924 | 12.4 |
| 450.soplex | 977 | 8.54 | 969 | 8.60 | 970 | 8.60 | 964 | 8.65 | 964 | 8.65 | 964 | 8.65 |
| 453.povray | 468 | 11.4 | 467 | 11.4 | 467 | 11.4 | 366 | 14.5 | 366 | 14.6 | 366 | 14.6 |
| 454.calculix | 1113 | 7.41 | 1110 | 7.43 | 1110 | 7.43 | 1092 | 7.56 | 1091 | 7.56 | 1092 | 7.56 |
| 459.GemsFDTD | 1384 | 7.67 | 1369 | 7.75 | 1369 | 7.75 | 1394 | 7.61 | 1393 | 7.62 | 1393 | 7.62 |
| 465.tonto | 1505 | 6.54 | 1501 | 6.56 | 1501 | 6.56 | 1484 | 6.63 | 1483 | 6.64 | 1482 | 6.64 |
| 470.lbm | 2842 | 4.83 | 2823 | 4.87 | 2823 | 4.87 | 2846 | 4.83 | 2846 | 4.83 | 2846 | 4.83 |
| 481.wrf | 1151 | 9.71 | 1146 | 9.75 | 1146 | 9.75 | 1187 | 9.41 | 1186 | 9.42 | 1186 | 9.42 |
| 482.sphinx3 | 1670 | 11.7 | 1664 | 11.7 | 1664 | 11.7 | 1608 | 12.1 | 1608 | 12.1 | 1608 | 12.1 |
Operating System Notes
/NUMPROC=1 flag was added to boot.ini to invoke uniprocessor environment
Base Compiler Invocation
C benchmarks:
| icl -Qvc7.1 -Qc99 |
C++ benchmarks:
| icl -Qvc7.1 |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icl -Qvc7.1 -Qc99 ifort |
Base Portability Flags
| 436.cactusADM: | -Qlowercase /assume:underscore |
| 444.namd: | -TP |
| 447.dealII: | -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG -DBOOST_NO_INTRINSIC_WCHAR_T |
| 453.povray: | -DSPEC_CPU_WINDOWS_ICL |
| 454.calculix: | -DSPEC_CPU_NOZMODIFIER -Qlowercase |
| 481.wrf: | -DSPEC_CPU_WINDOWS_ICL |
Base Optimization Flags
C benchmarks:
| -fast /F950000000 shlw32m.lib -link /FORCE:MULTIPLE |
C++ benchmarks:
| -fast -Qcxx_features /F950000000 shlw32m.lib -link /FORCE:MULTIPLE |
Fortran benchmarks:
| -fast /F950000000 -link /FORCE:MULTIPLE |
Benchmarks using both Fortran and C:
| -fast /F950000000 -link /FORCE:MULTIPLE |
Peak Compiler Invocation
C benchmarks:
| icl -Qvc7.1 -Qc99 |
C++ benchmarks:
| icl -Qvc7.1 |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icl -Qvc7.1 -Qc99 ifort |
Peak Portability Flags
| 436.cactusADM: | -Qlowercase /assume:underscore |
| 444.namd: | -TP |
| 447.dealII: | -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG -DBOOST_NO_INTRINSIC_WCHAR_T |
| 453.povray: | -DSPEC_CPU_WINDOWS_ICL |
| 454.calculix: | -DSPEC_CPU_NOZMODIFIER -Qlowercase |
| 481.wrf: | -DSPEC_CPU_WINDOWS_ICL |
Peak Optimization Flags
C benchmarks:
| -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast /F950000000 shlw32m.lib -link /FORCE:MULTIPLE |
C++ benchmarks:
| -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qcxx_features /F950000000 shlw32m.lib -link /FORCE:MULTIPLE |
Fortran benchmarks:
| -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast /F950000000 -link /FORCE:MULTIPLE |
Benchmarks using both Fortran and C:
| -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast /F950000000 -link /FORCE:MULTIPLE |
