SPEC® CFP2006 Result

Fujitsu Siemens Computers

PRIMERGY RX100 S4, Intel Xeon processor 3070,
2.67 GHz

SPECfp®_rate2006 = 25.9

SPECfp_rate_base2006 = 25.0

CPU2006 license:	22	Test date:	May-2007
Test sponsor:	Fujitsu Siemens Computers	Hardware Availability:	May-2007
Tested by:	Fujitsu Siemens Computers	Software Availability:	Feb-2007

Hardware
CPU Name:	Intel Xeon 3070
CPU Characteristics:	1067 MHz system bus
CPU MHz:	2667
FPU:	Integrated
CPU(s) enabled:	2 cores, 1 chip, 2 cores/chip
CPU(s) orderable:	1 chip
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	4 MB I+D on chip per chip
L3 Cache:	None
Other Cache:	None
Memory:	8 GB (4x2 GB DDR2 PC2-4200E, 2 rank, CAS 4-4-4, with ECC)
Disk Subsystem:	SATA (160 GB, 7200 rpm)
Other Hardware:	None

Software
Operating System:	64-Bit SUSE LINUX Enterprise Server 10, Kernel 2.6.16.21-0.8-smp on an x86_64
Compiler:	Intel C++ Compiler for IA32/EM64T application, Version 9.1 - Build 20070215, Package-ID: l_cc_p_9.1.047 Intel Fortran Compiler for IA32/EM64T application, Version 9.1 - Build 20070215, Package ID: l_fc_p_9.1.043
Auto Parallel:	No
File System:	ReiserFS
System State:	Multiuser, Runlevel 3
Base Pointers:	64-bit
Peak Pointers:	32/64-bit
Other Software:	None

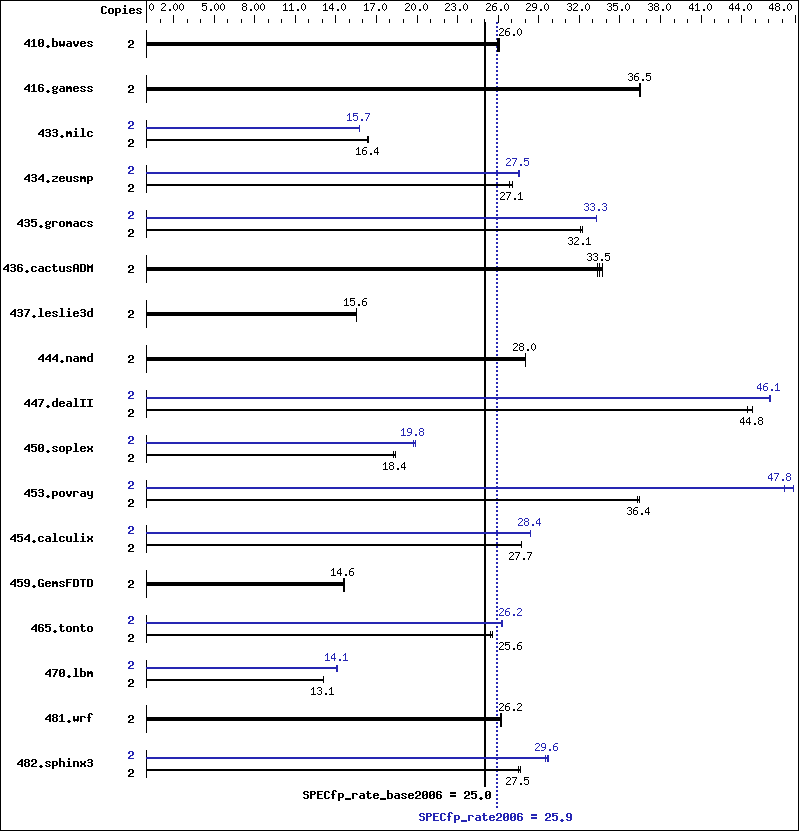

Results Table

Benchmark	Base							Peak
Benchmark	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves	2	1041	26.1	1045	26.0	1047	26.0	2	1041	26.1	1045	26.0	1047	26.0
416.gamess	2	1072	36.5	1074	36.5	1073	36.5	2	1072	36.5	1074	36.5	1073	36.5
433.milc	2	1122	16.4	1118	16.4	1120	16.4	2	1165	15.8	1167	15.7	1167	15.7
434.zeusmp	2	677	26.9	672	27.1	672	27.1	2	663	27.5	661	27.5	662	27.5
435.gromacs	2	445	32.1	446	32.1	443	32.2	2	429	33.3	429	33.3	429	33.3
436.cactusADM	2	717	33.3	709	33.7	713	33.5	2	717	33.3	709	33.7	713	33.5
437.leslie3d	2	1209	15.6	1209	15.6	1209	15.6	2	1209	15.6	1209	15.6	1209	15.6
444.namd	2	572	28.1	572	28.0	572	28.0	2	572	28.1	572	28.0	572	28.0
447.dealII	2	515	44.5	511	44.8	511	44.8	2	497	46.0	497	46.1	496	46.1
450.soplex	2	914	18.3	908	18.4	907	18.4	2	844	19.8	845	19.7	839	19.9
453.povray	2	292	36.4	293	36.3	292	36.4	2	222	47.8	226	47.2	223	47.8
454.calculix	2	595	27.7	596	27.7	596	27.7	2	582	28.4	581	28.4	581	28.4
459.GemsFDTD	2	1453	14.6	1454	14.6	1452	14.6	2	1453	14.6	1454	14.6	1452	14.6
465.tonto	2	769	25.6	773	25.5	770	25.6	2	750	26.2	751	26.2	748	26.3
470.lbm	2	2105	13.1	2102	13.1	2104	13.1	2	1957	14.0	1949	14.1	1950	14.1
481.wrf	2	853	26.2	852	26.2	852	26.2	2	853	26.2	852	26.2	852	26.2
482.sphinx3	2	1416	27.5	1410	27.6	1416	27.5	2	1320	29.5	1311	29.7	1316	29.6

Operating System Notes

 'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
 '/usr/bin/taskset' used to bind processes to CPUs

General Notes


 The system bus runs at 1067 MHz

 All binaries were built with 64-bit Intel compiler except:
 433.milc, 434.zeusmp, 450.soplex, 470.lbm and 482.sphinx3 in peak were built with
 32-bit Intel compiler by changing the path for include and library files.

 For information about Fujitsu Siemens Computers in your country please see:
 http://www.fujitsu-siemens.com/countries

Base Compiler Invocation

C benchmarks:

icc

C++ benchmarks:

icpc

Fortran benchmarks:

ifort

Benchmarks using both Fortran and C:

icc ifort

Base Portability Flags

410.bwaves:	-DSPEC_CPU_LP64
416.gamess:	-DSPEC_CPU_LP64
433.milc:	-DSPEC_CPU_LP64
434.zeusmp:	-DSPEC_CPU_LP64
435.gromacs:	-DSPEC_CPU_LP64 -nofor_main
436.cactusADM:	-DSPEC_CPU_LP64 -nofor_main
437.leslie3d:	-DSPEC_CPU_LP64
444.namd:	-DSPEC_CPU_LP64
447.dealII:	-DSPEC_CPU_LP64
450.soplex:	-DSPEC_CPU_LP64
453.povray:	-DSPEC_CPU_LP64
454.calculix:	-DSPEC_CPU_LP64 -nofor_main
459.GemsFDTD:	-DSPEC_CPU_LP64
465.tonto:	-DSPEC_CPU_LP64
470.lbm:	-DSPEC_CPU_LP64
481.wrf:	-DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX
482.sphinx3:	-DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

-fast

C++ benchmarks:

-fast

Fortran benchmarks:

-fast

Benchmarks using both Fortran and C:

-fast

Peak Compiler Invocation

C benchmarks:

/opt/intel/cc/9.1.047/bin/icc -I/opt/intel/cc/9.1.047/include -L/opt/intel/cc/9.1.047/lib

C++ benchmarks (except as noted below):

	icpc
450.soplex:	/opt/intel/cc/9.1.047/bin/icpc -I/opt/intel/cc/9.1.047/include -L/opt/intel/cc/9.1.047/lib

Fortran benchmarks (except as noted below):

	ifort
434.zeusmp:	/opt/intel/fc/9.1.043/bin/ifort -I/opt/intel/fc/9.1.043/include -L/opt/intel/fc/9.1.043/lib

Benchmarks using both Fortran and C:

icc ifort

Peak Portability Flags

410.bwaves:	-DSPEC_CPU_LP64
416.gamess:	-DSPEC_CPU_LP64
435.gromacs:	-DSPEC_CPU_LP64 -nofor_main
436.cactusADM:	-DSPEC_CPU_LP64 -nofor_main
437.leslie3d:	-DSPEC_CPU_LP64
444.namd:	-DSPEC_CPU_LP64
447.dealII:	-DSPEC_CPU_LP64
453.povray:	-DSPEC_CPU_LP64
454.calculix:	-DSPEC_CPU_LP64 -nofor_main
459.GemsFDTD:	-DSPEC_CPU_LP64
465.tonto:	-DSPEC_CPU_LP64
481.wrf:	-DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

433.milc:	-prof_gen(pass 1) -prof_use(pass 2) -fast
470.lbm:	Same as 433.milc
482.sphinx3:	-fast

C++ benchmarks:

444.namd:	basepeak = yes
447.dealII:	-prof_gen(pass 1) -prof_use(pass 2) -fast
450.soplex:	Same as 447.dealII
453.povray:	Same as 447.dealII

Fortran benchmarks:

410.bwaves:	basepeak = yes
416.gamess:	basepeak = yes
434.zeusmp:	-fast
437.leslie3d:	basepeak = yes
459.GemsFDTD:	basepeak = yes
465.tonto:	-prof_gen(pass 1) -prof_use(pass 2) -fast

Benchmarks using both Fortran and C:

435.gromacs:	-prof_gen(pass 1) -prof_use(pass 2) -fast
436.cactusADM:	basepeak = yes
454.calculix:	Same as 435.gromacs
481.wrf:	basepeak = yes

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090714.09.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090714.09.xml.
