| CPU2006 license: | 20 | Test date: | May-2007 |
|---|---|---|---|
| Test sponsor: | Bull SAS | Hardware Availability: | Sep-2006 |
| Tested by: | Bull SAS | Software Availability: | Nov-2006 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon 7120M |
| CPU Characteristics: | 3.0 GHz, 800 MHz bus |
| CPU MHz: | 3000 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 4 chips, 2 cores/chip |
| CPU(s) orderable: | 1,2,4 chips |
| Primary Cache: | 12 K micro-ops I + 16 KB D on chip per core |
| Secondary Cache: | 1 MB I+D on chip per core |
| L3 Cache: | 4 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 32 GB (16x2 GB) DDR2 400 PC2-3200R-333 |
| Disk Subsystem: | 2x36 GB SAS 15000 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Windows Server 2003 Enterprise X64 Edition |
| Compiler: | Intel C++ Compiler for IA32 version 9.1 Package ID W_CC_C_9.1.033 Build no 20061103Z Intel Fortran Compiler for IA32 version 9.1 Package ID W_FC_C_9.1.033 Build no 20061103Z Microsoft Visual Studio .NET 2003 (lib & linker) |
| Auto Parallel: | No |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32-bit |
| Other Software: | MicroQuill SmartHeap Library 8.0 (shlW32M.lib) |

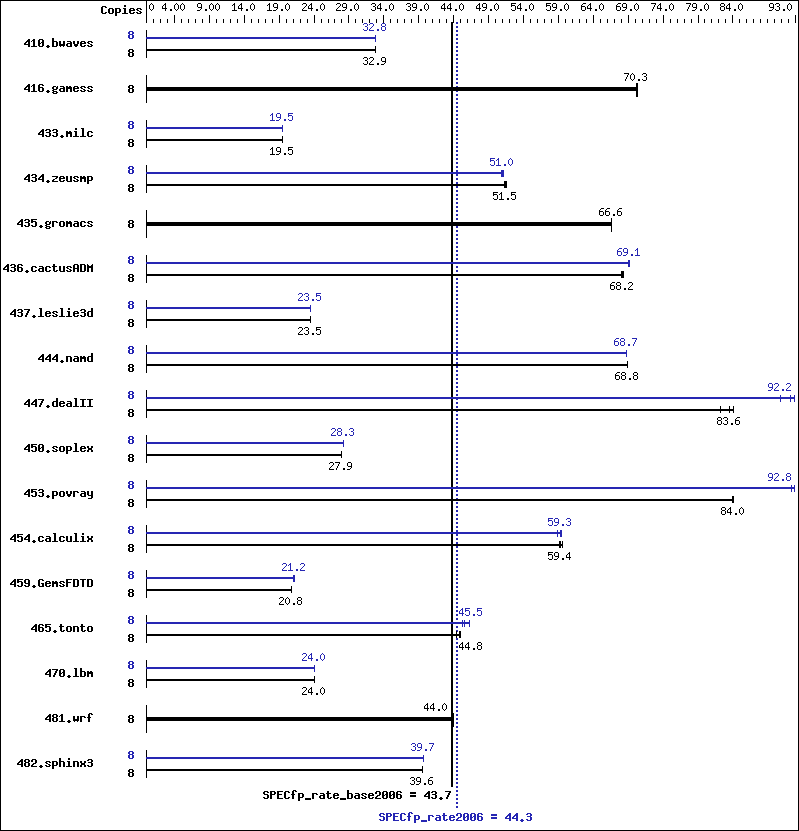

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 410.bwaves | 8 | 3309 | 32.9 | 3308 | 32.9 | 3308 | 32.9 | 8 | 3308 | 32.9 | 3314 | 32.8 | 3313 | 32.8 |
| 416.gamess | 8 | 2230 | 70.3 | 2229 | 70.3 | 2230 | 70.3 | 8 | 2230 | 70.3 | 2229 | 70.3 | 2230 | 70.3 |
| 433.milc | 8 | 3760 | 19.5 | 3769 | 19.5 | 3771 | 19.5 | 8 | 3769 | 19.5 | 3771 | 19.5 | 3771 | 19.5 |
| 434.zeusmp | 8 | 1419 | 51.3 | 1414 | 51.5 | 1411 | 51.6 | 8 | 1423 | 51.2 | 1428 | 51.0 | 1431 | 50.9 |
| 435.gromacs | 8 | 858 | 66.5 | 857 | 66.6 | 858 | 66.6 | 8 | 858 | 66.5 | 857 | 66.6 | 858 | 66.6 |
| 436.cactusADM | 8 | 1401 | 68.2 | 1400 | 68.3 | 1404 | 68.1 | 8 | 1382 | 69.2 | 1384 | 69.1 | 1383 | 69.1 |
| 437.leslie3d | 8 | 3199 | 23.5 | 3199 | 23.5 | 3197 | 23.5 | 8 | 3198 | 23.5 | 3197 | 23.5 | 3197 | 23.5 |
| 444.namd | 8 | 932 | 68.8 | 932 | 68.8 | 932 | 68.8 | 8 | 934 | 68.7 | 934 | 68.7 | 934 | 68.7 |
| 447.dealII | 8 | 1088 | 84.1 | 1114 | 82.2 | 1095 | 83.6 | 8 | 1007 | 90.9 | 992 | 92.2 | 985 | 92.9 |
| 450.soplex | 8 | 2393 | 27.9 | 2393 | 27.9 | 2394 | 27.9 | 8 | 2361 | 28.3 | 2361 | 28.3 | 2359 | 28.3 |
| 453.povray | 8 | 507 | 84.0 | 507 | 84.0 | 506 | 84.1 | 8 | 461 | 92.4 | 458 | 92.9 | 458 | 92.8 |
| 454.calculix | 8 | 1112 | 59.4 | 1115 | 59.2 | 1107 | 59.6 | 8 | 1122 | 58.8 | 1113 | 59.3 | 1111 | 59.4 |
| 459.GemsFDTD | 8 | 4087 | 20.8 | 4089 | 20.8 | 4084 | 20.8 | 8 | 4020 | 21.1 | 4009 | 21.2 | 4011 | 21.2 |
| 465.tonto | 8 | 1753 | 44.9 | 1758 | 44.8 | 1771 | 44.5 | 8 | 1700 | 46.3 | 1729 | 45.5 | 1740 | 45.2 |
| 470.lbm | 8 | 4575 | 24.0 | 4573 | 24.0 | 4575 | 24.0 | 8 | 4573 | 24.0 | 4573 | 24.0 | 4580 | 24.0 |
| 481.wrf | 8 | 2029 | 44.0 | 2032 | 44.0 | 2030 | 44.0 | 8 | 2029 | 44.0 | 2032 | 44.0 | 2030 | 44.0 |
| 482.sphinx3 | 8 | 3938 | 39.6 | 3937 | 39.6 | 3938 | 39.6 | 8 | 3925 | 39.7 | 3928 | 39.7 | 3927 | 39.7 |
General Notes
Other Configuration Notes Hyper-Threading technology was disabled in the Bios. The NovaScale T880 and the NovaScale R480 models are electronically equivalent. The results have been measured on a NovaScale R480 model.
Base Compiler Invocation
C benchmarks:
| icl -Qvc7.1 -Qc99 |
C++ benchmarks:
| icl -Qvc7.1 |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icl -Qvc7.1 -Qc99 ifort |
Base Portability Flags
| 436.cactusADM: | -Qlowercase /assume:underscore |
| 444.namd: | -TP |
| 447.dealII: | -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG -DBOOST_NO_INTRINSIC_WCHAR_T |
| 453.povray: | -DSPEC_CPU_WINDOWS_ICL |
| 454.calculix: | -DSPEC_CPU_NOZMODIFIER -Qlowercase |
| 481.wrf: | -DSPEC_CPU_WINDOWS_ICL |
Base Optimization Flags
C benchmarks:
| -fast /F950000000 shlw32m.lib -link /FORCE:MULTIPLE |
C++ benchmarks:
| -fast -Qcxx_features /F950000000 shlw32m.lib -link /FORCE:MULTIPLE |
Fortran benchmarks:
| -fast /F950000000 -link /FORCE:MULTIPLE |
Benchmarks using both Fortran and C:
| -fast /F950000000 -link /FORCE:MULTIPLE |
Peak Compiler Invocation
C benchmarks:
| icl -Qvc7.1 -Qc99 |
C++ benchmarks:
| icl -Qvc7.1 |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icl -Qvc7.1 -Qc99 ifort |
Peak Portability Flags
| 436.cactusADM: | -Qlowercase /assume:underscore |
| 444.namd: | -TP |
| 447.dealII: | -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG -DBOOST_NO_INTRINSIC_WCHAR_T |
| 453.povray: | -DSPEC_CPU_WINDOWS_ICL |
| 454.calculix: | -DSPEC_CPU_NOZMODIFIER -Qlowercase |
| 481.wrf: | -DSPEC_CPU_WINDOWS_ICL |
Peak Optimization Flags
C benchmarks:
| -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast /F950000000 shlw32m.lib -link /FORCE:MULTIPLE |
C++ benchmarks:
| -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qcxx_features /F950000000 shlw32m.lib -link /FORCE:MULTIPLE |
Fortran benchmarks:
| 410.bwaves: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast /F950000000 -link /FORCE:MULTIPLE |
| 416.gamess: | basepeak = yes |
| 434.zeusmp: | Same as 410.bwaves |
| 437.leslie3d: | Same as 410.bwaves |
| 459.GemsFDTD: | Same as 410.bwaves |
| 465.tonto: | Same as 410.bwaves |
Benchmarks using both Fortran and C:
| 435.gromacs: | basepeak = yes |
| 436.cactusADM: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast /F950000000 -link /FORCE:MULTIPLE |
| 454.calculix: | Same as 436.cactusADM |
| 481.wrf: | basepeak = yes |
