SPEC® CFP2006 Result

Fujitsu Siemens Computers

PRIMERGY RX200 S3, Intel Xeon processor 5120,
1.86 GHz

SPECfp®_rate2006 = 32.3

SPECfp_rate_base2006 = 31.3

CPU2006 license:	22	Test date:	May-2007
Test sponsor:	Fujitsu Siemens Computers	Hardware Availability:	Jul-2006
Tested by:	Fujitsu Siemens Computers	Software Availability:	Feb-2007

Hardware
CPU Name:	Intel Xeon 5120
CPU Characteristics:	1067 MHz system bus
CPU MHz:	1867
FPU:	Integrated
CPU(s) enabled:	4 cores, 2 chips, 2 cores/chip
CPU(s) orderable:	1,2 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	4 MB I+D on chip per chip
L3 Cache:	None
Other Cache:	None
Memory:	8 GB (8x1 GB DDR2 PC2-5300F, 2 rank, CAS 5-5-5, with ECC)
Disk Subsystem:	SAS (73GB 15400 rpm)
Other Hardware:	None

Software
Operating System:	64-Bit SUSE LINUX Enterprise Server 10, Kernel 2.6.16.21-0.8-smp on an x86_64
Compiler:	Intel C++ Compiler for IA32/EM64T application, Version 9.1 - Build 20070215, Package-ID: l_cc_p_9.1.047 Intel Fortran Compiler for IA32/EM64T application, Version 9.1 - Build 20070215, Package ID: l_fc_p_9.1.043
Auto Parallel:	No
File System:	ext2
System State:	Multiuser, Runlevel 3
Base Pointers:	64-bit
Peak Pointers:	32/64-bit
Other Software:	None

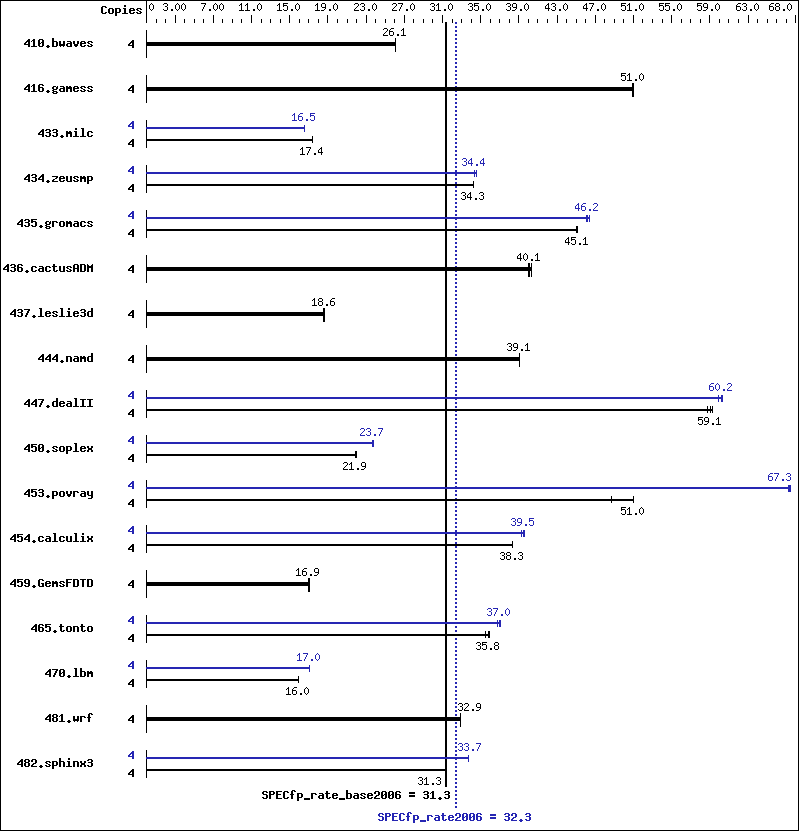

Results Table

Benchmark	Base							Peak
Benchmark	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves	4	2083	26.1	2083	26.1	2083	26.1	4	2083	26.1	2083	26.1	2083	26.1
416.gamess	4	1536	51.0	1536	51.0	1538	50.9	4	1536	51.0	1536	51.0	1538	50.9
433.milc	4	2108	17.4	2109	17.4	2109	17.4	4	2218	16.6	2219	16.5	2219	16.5
434.zeusmp	4	1062	34.3	1063	34.3	1064	34.2	4	1053	34.6	1060	34.3	1059	34.4
435.gromacs	4	634	45.1	633	45.1	633	45.1	4	619	46.1	618	46.2	616	46.4
436.cactusADM	4	1191	40.1	1184	40.4	1194	40.0	4	1191	40.1	1184	40.4	1194	40.0
437.leslie3d	4	2017	18.6	2019	18.6	2033	18.5	4	2017	18.6	2019	18.6	2033	18.5
444.namd	4	821	39.1	822	39.0	821	39.1	4	821	39.1	822	39.0	821	39.1
447.dealII	4	779	58.8	773	59.2	775	59.1	4	763	59.9	760	60.2	758	60.4
450.soplex	4	1520	21.9	1520	21.9	1525	21.9	4	1407	23.7	1410	23.7	1402	23.8
453.povray	4	437	48.7	417	51.0	417	51.0	4	316	67.4	316	67.3	316	67.2
454.calculix	4	861	38.3	861	38.3	861	38.3	4	834	39.5	840	39.3	835	39.5
459.GemsFDTD	4	2488	17.1	2505	16.9	2506	16.9	4	2488	17.1	2505	16.9	2506	16.9
465.tonto	4	1098	35.8	1108	35.5	1094	36.0	4	1064	37.0	1063	37.0	1071	36.8
470.lbm	4	3446	15.9	3446	16.0	3445	16.0	4	3225	17.0	3226	17.0	3223	17.0
481.wrf	4	1357	32.9	1359	32.9	1358	32.9	4	1357	32.9	1359	32.9	1358	32.9
482.sphinx3	4	2487	31.3	2493	31.3	2491	31.3	4	2313	33.7	2312	33.7	2311	33.7

Operating System Notes

 'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
 '/usr/bin/taskset' used to bind processes to CPUs

General Notes


 The system bus runs at 1067 MHz

 All binaries were built with 64-bit Intel compiler except:
 433.milc, 434.zeusmp, 450.soplex, 470.lbm and 482.sphinx3 in peak were built with
 32-bit Intel compiler by changing the path for include and library files.

 For information about Fujitsu Siemens Computers in your country please see:
 http://www.fujitsu-siemens.com/countries

Base Compiler Invocation

C benchmarks:

icc

C++ benchmarks:

icpc

Fortran benchmarks:

ifort

Benchmarks using both Fortran and C:

icc ifort

Base Portability Flags

410.bwaves:	-DSPEC_CPU_LP64
416.gamess:	-DSPEC_CPU_LP64
433.milc:	-DSPEC_CPU_LP64
434.zeusmp:	-DSPEC_CPU_LP64
435.gromacs:	-DSPEC_CPU_LP64 -nofor_main
436.cactusADM:	-DSPEC_CPU_LP64 -nofor_main
437.leslie3d:	-DSPEC_CPU_LP64
444.namd:	-DSPEC_CPU_LP64
447.dealII:	-DSPEC_CPU_LP64
450.soplex:	-DSPEC_CPU_LP64
453.povray:	-DSPEC_CPU_LP64
454.calculix:	-DSPEC_CPU_LP64 -nofor_main
459.GemsFDTD:	-DSPEC_CPU_LP64
465.tonto:	-DSPEC_CPU_LP64
470.lbm:	-DSPEC_CPU_LP64
481.wrf:	-DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX
482.sphinx3:	-DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

-fast

C++ benchmarks:

-fast

Fortran benchmarks:

-fast

Benchmarks using both Fortran and C:

-fast

Peak Compiler Invocation

C benchmarks:

/opt/intel/cc/9.1.047/bin/icc -I/opt/intel/cc/9.1.047/include -L/opt/intel/cc/9.1.047/lib

C++ benchmarks (except as noted below):

	icpc
450.soplex:	/opt/intel/cc/9.1.047/bin/icpc -I/opt/intel/cc/9.1.047/include -L/opt/intel/cc/9.1.047/lib

Fortran benchmarks (except as noted below):

	ifort
434.zeusmp:	/opt/intel/fc/9.1.043/bin/ifort -I/opt/intel/fc/9.1.043/include -L/opt/intel/fc/9.1.043/lib

Benchmarks using both Fortran and C:

icc ifort

Peak Portability Flags

410.bwaves:	-DSPEC_CPU_LP64
416.gamess:	-DSPEC_CPU_LP64
435.gromacs:	-DSPEC_CPU_LP64 -nofor_main
436.cactusADM:	-DSPEC_CPU_LP64 -nofor_main
437.leslie3d:	-DSPEC_CPU_LP64
444.namd:	-DSPEC_CPU_LP64
447.dealII:	-DSPEC_CPU_LP64
453.povray:	-DSPEC_CPU_LP64
454.calculix:	-DSPEC_CPU_LP64 -nofor_main
459.GemsFDTD:	-DSPEC_CPU_LP64
465.tonto:	-DSPEC_CPU_LP64
481.wrf:	-DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

433.milc:	-prof_gen(pass 1) -prof_use(pass 2) -fast
470.lbm:	Same as 433.milc
482.sphinx3:	-fast

C++ benchmarks:

444.namd:	basepeak = yes
447.dealII:	-prof_gen(pass 1) -prof_use(pass 2) -fast
450.soplex:	Same as 447.dealII
453.povray:	Same as 447.dealII

Fortran benchmarks:

410.bwaves:	basepeak = yes
416.gamess:	basepeak = yes
434.zeusmp:	-fast
437.leslie3d:	basepeak = yes
459.GemsFDTD:	basepeak = yes
465.tonto:	-prof_gen(pass 1) -prof_use(pass 2) -fast

Benchmarks using both Fortran and C:

435.gromacs:	-prof_gen(pass 1) -prof_use(pass 2) -fast
436.cactusADM:	basepeak = yes
454.calculix:	Same as 435.gromacs
481.wrf:	basepeak = yes

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090714.09.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090714.09.xml.
