| CPU2006 license: | 22 | Test date: | Apr-2007 |
|---|---|---|---|
| Test sponsor: | Fujitsu Siemens Computers | Hardware Availability: | Nov-2006 |
| Tested by: | Fujitsu Siemens Computers | Software Availability: | Feb-2007 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5320 |
| CPU Characteristics: | 1067 MHz system bus |
| CPU MHz: | 1867 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 8 MB I+D on chip per chip, 4 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 16 GB (8x2 GB DDR2 PC2-5300F, 2 rank, CAS 5-5-5, with ECC) |
| Disk Subsystem: | SAS (36GB 10000 rpm) |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | 64-Bit SUSE LINUX Enterprise Server 10, Kernel 2.6.16.21-0.8-smp on an x86_64 |
| Compiler: | Intel C++ Compiler for IA32/EM64T application, Version 9.1 - Build 20070215, Package-ID: l_cc_p_9.1.047 |
| Auto Parallel: | No |
| File System: | ext2 |
| System State: | Multiuser, Runlevel 3 |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Smart Heap Library, Version 8.1 |

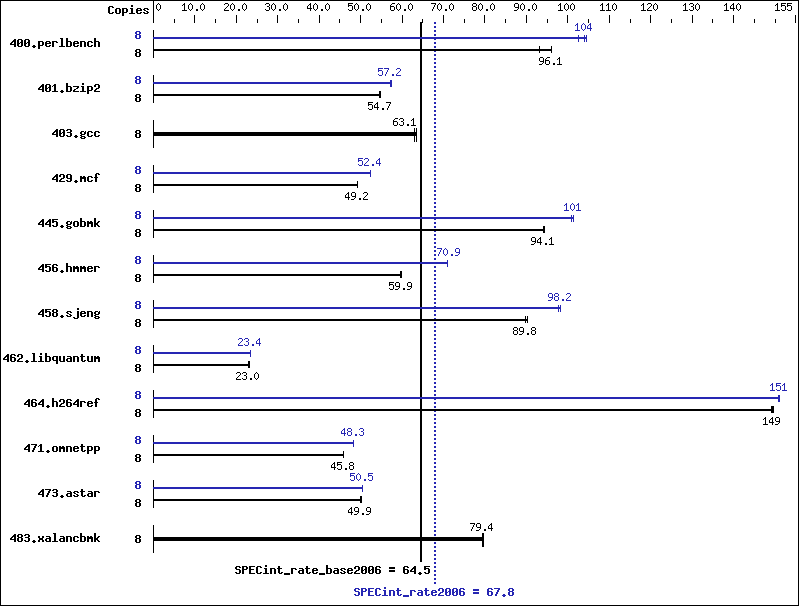

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 8 | 838 | 93.3 | 813 | 96.1 | 813 | 96.1 | 8 | 747 | 105 | 751 | 104 | 762 | 103 |
| 401.bzip2 | 8 | 1410 | 54.7 | 1406 | 54.9 | 1414 | 54.6 | 8 | 1353 | 57.1 | 1349 | 57.2 | 1346 | 57.3 |
| 403.gcc | 8 | 1021 | 63.1 | 1016 | 63.4 | 1020 | 63.1 | 8 | 1021 | 63.1 | 1016 | 63.4 | 1020 | 63.1 |
| 429.mcf | 8 | 1484 | 49.2 | 1484 | 49.2 | 1484 | 49.2 | 8 | 1393 | 52.4 | 1392 | 52.4 | 1392 | 52.4 |
| 445.gobmk | 8 | 891 | 94.1 | 889 | 94.4 | 892 | 94.1 | 8 | 831 | 101 | 829 | 101 | 828 | 101 |
| 456.hmmer | 8 | 1250 | 59.7 | 1247 | 59.9 | 1246 | 59.9 | 8 | 1052 | 71.0 | 1052 | 70.9 | 1053 | 70.9 |
| 458.sjeng | 8 | 1078 | 89.8 | 1072 | 90.3 | 1079 | 89.7 | 8 | 986 | 98.2 | 985 | 98.3 | 989 | 97.8 |
| 462.libquantum | 8 | 7200 | 23.0 | 7201 | 23.0 | 7171 | 23.1 | 8 | 7096 | 23.4 | 7099 | 23.3 | 7099 | 23.4 |
| 464.h264ref | 8 | 1183 | 150 | 1188 | 149 | 1185 | 149 | 8 | 1172 | 151 | 1172 | 151 | 1174 | 151 |
| 471.omnetpp | 8 | 1092 | 45.8 | 1093 | 45.8 | 1090 | 45.9 | 8 | 1034 | 48.3 | 1034 | 48.4 | 1038 | 48.2 |
| 473.astar | 8 | 1119 | 50.2 | 1124 | 49.9 | 1125 | 49.9 | 8 | 1111 | 50.5 | 1111 | 50.6 | 1112 | 50.5 |
| 483.xalancbmk | 8 | 694 | 79.6 | 695 | 79.4 | 696 | 79.3 | 8 | 694 | 79.6 | 695 | 79.4 | 696 | 79.3 |
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run '/usr/bin/taskset' used to bind processes to CPUs
General Notes
The system bus runs at 1067 MHz All binaries were built with 32-bit Intel compiler except: 401.bzip2, 456.hmmer and 462.libquantum in peak were built with 64-bit Intel compiler by changing the path for include and library files. BIOS configuration: Hardware Prefetch = Disable, Adjacent Sector Prefetch = Disable For information about Fujitsu Siemens Computers in your country please see: http://www.fujitsu-siemens.com/countries
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_X64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -fast |
C++ benchmarks:
| -xP -O3 -ipo -no-prec-div -L/opt/SmartHeap_8_1/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
C++ benchmarks:
| icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -prof_gen(pass 1) -prof_use(pass 2) -fast |
| 401.bzip2: | -fast |
| 403.gcc: | basepeak = yes |
| 429.mcf: | -prof_gen(pass 1) -prof_use(pass 2) -fast -L/opt/SmartHeap_8_1/lib -lsmartheap |
| 445.gobmk: | Same as 429.mcf |
| 456.hmmer: | Same as 400.perlbench |
| 458.sjeng: | Same as 429.mcf |
| 462.libquantum: | Same as 400.perlbench |
| 464.h264ref: | Same as 429.mcf |
C++ benchmarks:
| 471.omnetpp: | -prof_gen(pass 1) -prof_use(pass 2) -xP -O3 -ipo -no-prec-div -L/opt/SmartHeap_8_1/lib -lsmartheap |
| 473.astar: | -prof_gen(pass 1) -prof_use(pass 2) -fast -L/opt/SmartHeap_8_1/lib -lsmartheap |
| 483.xalancbmk: | basepeak = yes |
