| CPU2006 license: | 97 | Test date: | Apr-2007 |
|---|---|---|---|
| Test sponsor: | Acer Incorporated | Hardware Availability: | Nov-2006 |
| Tested by: | Acer Incorporated | Software Availability: | Nov-2006 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon 3070 |
| CPU Characteristics: | 1066MHz system bus |
| CPU MHz: | 2666 |
| FPU: | Integrated |
| CPU(s) enabled: | 2 cores, 1 chip, 2 cores/chip |
| CPU(s) orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 4 MB I+D on chip per chip |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 4 GB (4 x 1024MB ECC DDR2-667 CL5-5-5) |
| Disk Subsystem: | 1 x 320GB 7200RPM SATA HDD |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 10 EM64T (Kernel 2.6.16.21-0.8-smp) |
| Compiler: | Intel C++ Compiler 9.1 for Intel EM64T-based Package ID l_cc_c_9.1.042 Build no 20060707 Intel Fortran Compiler for Intel EM64T-based applications, Version 9.1 Package ID l_fc_c_9.1.040 Build no 20061101 |
| Auto Parallel: | No |
| File System: | ReiserFS |
| System State: | Default |
| Base Pointers: | 64-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | -- |

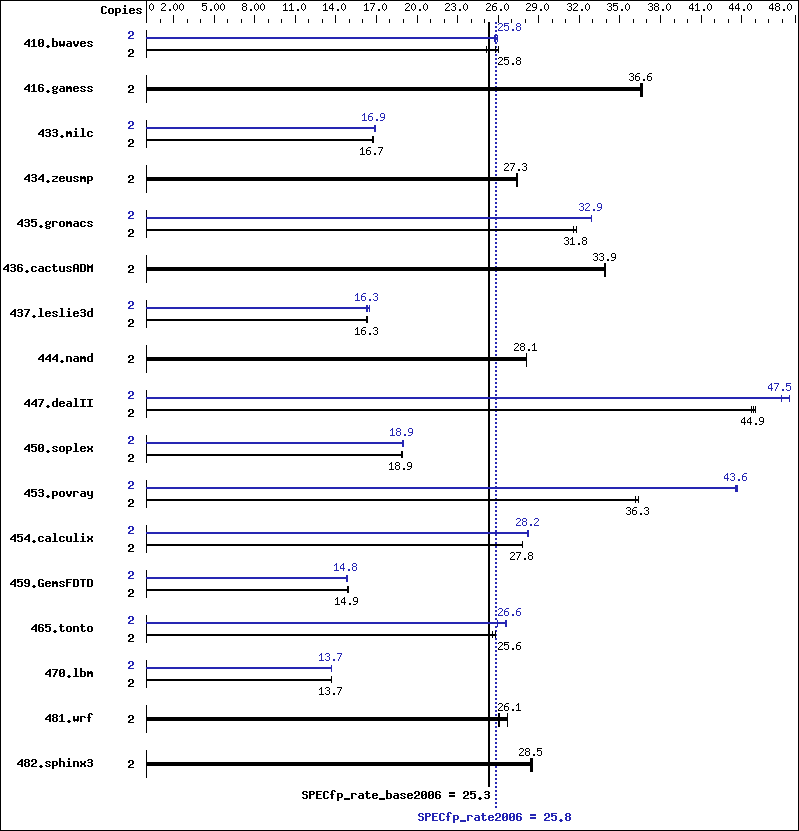

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 410.bwaves | 2 | 1081 | 25.1 | 1045 | 26.0 | 1052 | 25.8 | 2 | 1055 | 25.8 | 1047 | 26.0 | 1055 | 25.8 |
| 416.gamess | 2 | 1071 | 36.6 | 1069 | 36.6 | 1069 | 36.6 | 2 | 1071 | 36.6 | 1069 | 36.6 | 1069 | 36.6 |
| 433.milc | 2 | 1097 | 16.7 | 1095 | 16.8 | 1098 | 16.7 | 2 | 1090 | 16.8 | 1086 | 16.9 | 1089 | 16.9 |
| 434.zeusmp | 2 | 666 | 27.3 | 664 | 27.4 | 666 | 27.3 | 2 | 666 | 27.3 | 664 | 27.4 | 666 | 27.3 |
| 435.gromacs | 2 | 453 | 31.6 | 450 | 31.8 | 449 | 31.8 | 2 | 434 | 32.9 | 434 | 32.9 | 434 | 32.9 |
| 436.cactusADM | 2 | 704 | 33.9 | 705 | 33.9 | 705 | 33.9 | 2 | 704 | 33.9 | 705 | 33.9 | 705 | 33.9 |
| 437.leslie3d | 2 | 1151 | 16.3 | 1157 | 16.3 | 1152 | 16.3 | 2 | 1154 | 16.3 | 1151 | 16.3 | 1140 | 16.5 |
| 444.namd | 2 | 571 | 28.1 | 572 | 28.1 | 571 | 28.1 | 2 | 571 | 28.1 | 572 | 28.1 | 571 | 28.1 |
| 447.dealII | 2 | 508 | 45.0 | 511 | 44.8 | 510 | 44.9 | 2 | 488 | 46.9 | 482 | 47.5 | 481 | 47.5 |
| 450.soplex | 2 | 881 | 18.9 | 885 | 18.9 | 885 | 18.9 | 2 | 883 | 18.9 | 882 | 18.9 | 879 | 19.0 |
| 453.povray | 2 | 293 | 36.3 | 294 | 36.1 | 293 | 36.3 | 2 | 244 | 43.6 | 244 | 43.6 | 244 | 43.7 |
| 454.calculix | 2 | 594 | 27.8 | 593 | 27.8 | 594 | 27.8 | 2 | 584 | 28.3 | 584 | 28.2 | 585 | 28.2 |
| 459.GemsFDTD | 2 | 1423 | 14.9 | 1428 | 14.9 | 1426 | 14.9 | 2 | 1431 | 14.8 | 1434 | 14.8 | 1436 | 14.8 |
| 465.tonto | 2 | 770 | 25.6 | 770 | 25.6 | 763 | 25.8 | 2 | 758 | 26.0 | 740 | 26.6 | 741 | 26.6 |
| 470.lbm | 2 | 2011 | 13.7 | 2010 | 13.7 | 2010 | 13.7 | 2 | 2012 | 13.7 | 2011 | 13.7 | 2011 | 13.7 |
| 481.wrf | 2 | 856 | 26.1 | 859 | 26.0 | 836 | 26.7 | 2 | 856 | 26.1 | 859 | 26.0 | 836 | 26.7 |
| 482.sphinx3 | 2 | 1367 | 28.5 | 1370 | 28.5 | 1372 | 28.4 | 2 | 1367 | 28.5 | 1370 | 28.5 | 1372 | 28.4 |
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
Base Compiler Invocation
C benchmarks:
| icc |
C++ benchmarks:
| icpc |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icc ifort |
Base Portability Flags
| 410.bwaves: | -DSPEC_CPU_LP64 |
| 416.gamess: | -DSPEC_CPU_LP64 |
| 433.milc: | -DSPEC_CPU_LP64 |
| 434.zeusmp: | -DSPEC_CPU_LP64 |
| 435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
| 436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
| 437.leslie3d: | -DSPEC_CPU_LP64 |
| 444.namd: | -DSPEC_CPU_LP64 |
| 447.dealII: | -DSPEC_CPU_LP64 |
| 450.soplex: | -DSPEC_CPU_LP64 |
| 453.povray: | -DSPEC_CPU_LP64 |
| 454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
| 459.GemsFDTD: | -DSPEC_CPU_LP64 |
| 465.tonto: | -DSPEC_CPU_LP64 |
| 470.lbm: | -DSPEC_CPU_LP64 |
| 481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
| 482.sphinx3: | -DSPEC_CPU_LP64 |
Base Optimization Flags
C benchmarks:
| -fast |
C++ benchmarks:
| -fast |
Fortran benchmarks:
| -fast |
Benchmarks using both Fortran and C:
| -fast |
Peak Compiler Invocation
C benchmarks:
| icc |
C++ benchmarks:
| icpc |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icc ifort |
Peak Portability Flags
Same as Base Portability Flags
Peak Optimization Flags
C benchmarks:
| 433.milc: | -prof_gen(pass 1) -prof_use(pass 2) -fast -auto_ilp32 |
| 470.lbm: | Same as 433.milc |
| 482.sphinx3: | basepeak = yes |
C++ benchmarks:
| 444.namd: | basepeak = yes |
| 447.dealII: | -prof_gen(pass 1) -prof_use(pass 2) -fast -auto_ilp32 |
| 450.soplex: | Same as 447.dealII |
| 453.povray: | Same as 447.dealII |
Fortran benchmarks:
| 410.bwaves: | -prof_gen(pass 1) -prof_use(pass 2) -fast -auto_ilp32 |
| 416.gamess: | basepeak = yes |
| 434.zeusmp: | basepeak = yes |
| 437.leslie3d: | Same as 410.bwaves |
| 459.GemsFDTD: | Same as 410.bwaves |
| 465.tonto: | Same as 410.bwaves |
Benchmarks using both Fortran and C:
| 435.gromacs: | -prof_gen(pass 1) -prof_use(pass 2) -fast -auto_ilp32 |
| 436.cactusADM: | basepeak = yes |
| 454.calculix: | Same as 435.gromacs |
| 481.wrf: | basepeak = yes |
