| CPU2006 license: | 22 | Test date: | Apr-2007 |
|---|---|---|---|
| Test sponsor: | Fujitsu Siemens Computers | Hardware Availability: | Jul-2006 |
| Tested by: | Fujitsu Siemens Computers | Software Availability: | Feb-2007 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon 5130 |
| CPU Characteristics: | 1333 MHz system bus |
| CPU MHz: | 2000 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 2 chips, 2 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 4 MB I+D on chip per chip |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 8 GB (8x1 GB DDR2 PC2-5300F, 2 rank, CAS 5-5-5, with ECC) |
| Disk Subsystem: | SAS (36GB 10000 rpm) |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | 64-Bit SUSE LINUX Enterprise Server 10, Kernel 2.6.16.21-0.8-smp on an x86_64 |
| Compiler: | Intel C++ Compiler for IA32/EM64T application, Version 9.1 - Build 20070215, Package-ID: l_cc_p_9.1.047 |
| Auto Parallel: | No |
| File System: | ext2 |
| System State: | Multiuser, Runlevel 3 |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Smart Heap Library, Version 8.1 |

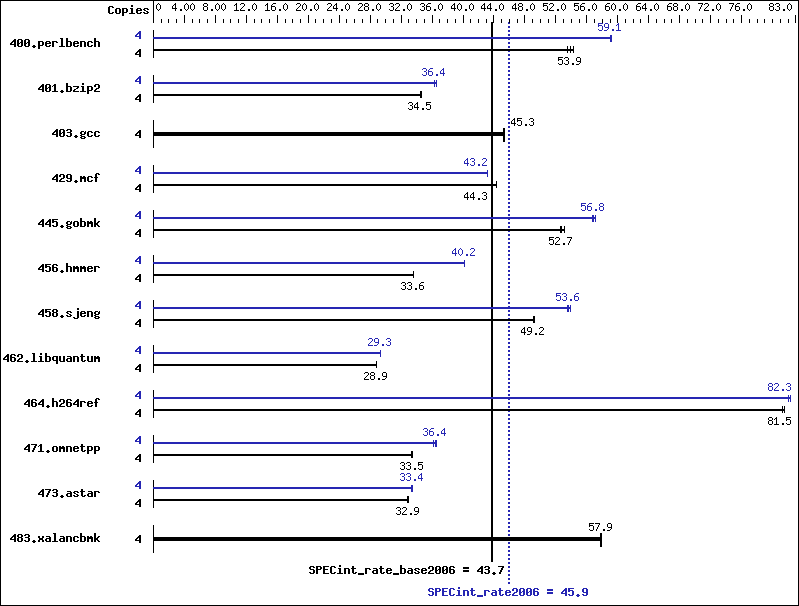

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 4 | 731 | 53.5 | 726 | 53.9 | 721 | 54.2 | 4 | 662 | 59.0 | 660 | 59.2 | 661 | 59.1 |
| 401.bzip2 | 4 | 1117 | 34.5 | 1114 | 34.6 | 1117 | 34.5 | 4 | 1062 | 36.4 | 1057 | 36.5 | 1063 | 36.3 |
| 403.gcc | 4 | 710 | 45.4 | 711 | 45.3 | 712 | 45.2 | 4 | 710 | 45.4 | 711 | 45.3 | 712 | 45.2 |
| 429.mcf | 4 | 822 | 44.4 | 824 | 44.3 | 823 | 44.3 | 4 | 844 | 43.2 | 844 | 43.2 | 846 | 43.1 |
| 445.gobmk | 4 | 799 | 52.5 | 796 | 52.7 | 790 | 53.1 | 4 | 739 | 56.8 | 739 | 56.8 | 735 | 57.1 |
| 456.hmmer | 4 | 1111 | 33.6 | 1111 | 33.6 | 1111 | 33.6 | 4 | 929 | 40.2 | 927 | 40.2 | 930 | 40.1 |
| 458.sjeng | 4 | 984 | 49.2 | 986 | 49.1 | 984 | 49.2 | 4 | 904 | 53.6 | 899 | 53.8 | 903 | 53.6 |
| 462.libquantum | 4 | 2872 | 28.9 | 2873 | 28.8 | 2873 | 28.9 | 4 | 2820 | 29.4 | 2829 | 29.3 | 2824 | 29.3 |
| 464.h264ref | 4 | 1089 | 81.3 | 1086 | 81.5 | 1086 | 81.5 | 4 | 1076 | 82.3 | 1079 | 82.1 | 1075 | 82.4 |
| 471.omnetpp | 4 | 747 | 33.5 | 751 | 33.3 | 746 | 33.5 | 4 | 691 | 36.2 | 685 | 36.5 | 687 | 36.4 |
| 473.astar | 4 | 855 | 32.9 | 852 | 32.9 | 852 | 33.0 | 4 | 841 | 33.4 | 840 | 33.4 | 840 | 33.4 |
| 483.xalancbmk | 4 | 478 | 57.7 | 477 | 57.9 | 477 | 57.9 | 4 | 478 | 57.7 | 477 | 57.9 | 477 | 57.9 |
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run '/usr/bin/taskset' used to bind processes to CPUs
General Notes
The system bus runs at 1333 MHz All binaries were built with 32-bit Intel compiler except: 401.bzip2, 456.hmmer and 462.libquantum in peak were built with 64-bit Intel compiler by changing the path for include and library files. BIOS configuration: Adjacent Sector Prefetch = Disable For information about Fujitsu Siemens Computers in your country please see: http://www.fujitsu-siemens.com/countries
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_X64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -fast |
C++ benchmarks:
| -xP -O3 -ipo -no-prec-div -L/opt/SmartHeap_8_1/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
C++ benchmarks:
| icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -prof_gen(pass 1) -prof_use(pass 2) -fast |
| 401.bzip2: | -fast |
| 403.gcc: | basepeak = yes |
| 429.mcf: | -prof_gen(pass 1) -prof_use(pass 2) -fast -L/opt/SmartHeap_8_1/lib -lsmartheap |
| 445.gobmk: | Same as 429.mcf |
| 456.hmmer: | Same as 400.perlbench |
| 458.sjeng: | Same as 429.mcf |
| 462.libquantum: | Same as 400.perlbench |
| 464.h264ref: | Same as 429.mcf |
C++ benchmarks:
| 471.omnetpp: | -prof_gen(pass 1) -prof_use(pass 2) -xP -O3 -ipo -no-prec-div -L/opt/SmartHeap_8_1/lib -lsmartheap |
| 473.astar: | -prof_gen(pass 1) -prof_use(pass 2) -fast -L/opt/SmartHeap_8_1/lib -lsmartheap |
| 483.xalancbmk: | basepeak = yes |
