| CPU2006 license: | 11 | Test date: | Apr-2007 |
|---|---|---|---|
| Test sponsor: | IBM Corporation | Hardware Availability: | Apr-2007 |
| Tested by: | IBM Corporation | Software Availability: | Nov-2006 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon X5355 |
| CPU Characteristics: | 1333MHz system bus |
| CPU MHz: | 2667 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 8 MB I+D on chip per chip, 4 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 8 GB (8 x 1GB DDR2-5300F ECC) |
| Disk Subsystem: | 1 x 74 GB SAS, 10000 RPM |
| Other Hardware: | Memory and I/O Expansion Unit (P/N 42C1600) |
| Software | |
|---|---|
| Operating System: | SuSE Linux Enterprise Server 10 EM64T kernel 2.6.16.21-0.8-smp |
| Compiler: | Intel C++ Compiler for Intel EM64T-based applications, Version 9.1 Package ID l_cc_c_9.1.045 Build no 20061101 Intel Fortran Compiler for Intel EM64T-based applications, Version 9.1 Package ID l_fc_c_9.1.040 Build no 20061101 |
| Auto Parallel: | No |
| File System: | ext2 |
| System State: | Multi-user run level 3 |
| Base Pointers: | 64-bit |
| Peak Pointers: | Not Applicable |
| Other Software: | None |

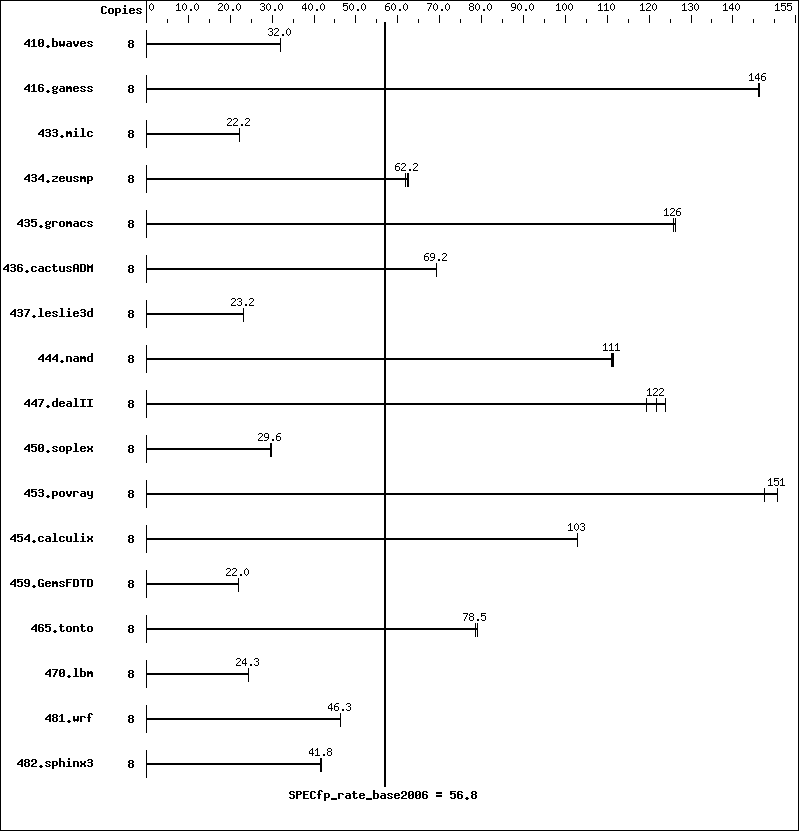

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 410.bwaves | 8 | 3401 | 32.0 | 3401 | 32.0 | 3400 | 32.0 | |||||||
| 416.gamess | 8 | 1073 | 146 | 1071 | 146 | 1072 | 146 | |||||||
| 433.milc | 8 | 3306 | 22.2 | 3311 | 22.2 | 3303 | 22.2 | |||||||
| 434.zeusmp | 8 | 1170 | 62.2 | 1178 | 61.8 | 1164 | 62.5 | |||||||
| 435.gromacs | 8 | 453 | 126 | 454 | 126 | 454 | 126 | |||||||
| 436.cactusADM | 8 | 1380 | 69.3 | 1383 | 69.1 | 1381 | 69.2 | |||||||
| 437.leslie3d | 8 | 3238 | 23.2 | 3243 | 23.2 | 3235 | 23.2 | |||||||
| 444.namd | 8 | 575 | 112 | 576 | 111 | 578 | 111 | |||||||
| 447.dealII | 8 | 752 | 122 | 767 | 119 | 738 | 124 | |||||||
| 450.soplex | 8 | 2238 | 29.8 | 2251 | 29.6 | 2255 | 29.6 | |||||||
| 453.povray | 8 | 288 | 148 | 283 | 151 | 282 | 151 | |||||||
| 454.calculix | 8 | 641 | 103 | 642 | 103 | 641 | 103 | |||||||
| 459.GemsFDTD | 8 | 3851 | 22.0 | 3852 | 22.0 | 3847 | 22.1 | |||||||
| 465.tonto | 8 | 1004 | 78.4 | 996 | 79.0 | 1003 | 78.5 | |||||||
| 470.lbm | 8 | 4521 | 24.3 | 4520 | 24.3 | 4520 | 24.3 | |||||||
| 481.wrf | 8 | 1934 | 46.2 | 1925 | 46.4 | 1932 | 46.3 | |||||||
| 482.sphinx3 | 8 | 3745 | 41.6 | 3734 | 41.8 | 3725 | 41.9 | |||||||
Platform Notes
"ulimit -s unlimited" set
Base Compiler Invocation
C benchmarks:
| icc |
C++ benchmarks:
| icpc |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icc ifort |
Base Portability Flags
| 410.bwaves: | -DSPEC_CPU_LP64 |
| 416.gamess: | -DSPEC_CPU_LP64 |
| 433.milc: | -DSPEC_CPU_LP64 |
| 434.zeusmp: | -DSPEC_CPU_LP64 |
| 435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
| 436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
| 437.leslie3d: | -DSPEC_CPU_LP64 |
| 444.namd: | -DSPEC_CPU_LP64 |
| 447.dealII: | -DSPEC_CPU_LP64 |
| 450.soplex: | -DSPEC_CPU_LP64 |
| 453.povray: | -DSPEC_CPU_LP64 |
| 454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
| 459.GemsFDTD: | -DSPEC_CPU_LP64 |
| 465.tonto: | -DSPEC_CPU_LP64 |
| 470.lbm: | -DSPEC_CPU_LP64 |
| 481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
| 482.sphinx3: | -DSPEC_CPU_LP64 |
